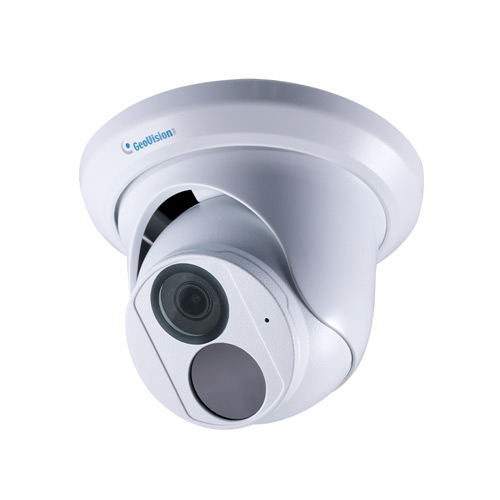

GeoVision - 84-EBD880W-0010 - AI 8MP H.265 Super low lux WDR Pro IR Eyeball IP
• AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.01 lux
• Up to 20 fps at 3840 x 2160
• Intelligent IR
• Day and night function (with removable IR-cut filter)
• 3-axis mechanism (pan / tilt / rotate)
• IR distance up to 30 m (100 ft)
• Ingress protection (IP67)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Built-in microphone
• DC 12 V / PoE (IEEE 802.3af)
• ONVIF (Profile S, G, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan low lux CMOS |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR ON: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR | WDR Pro |
| Dynamic Range | Up to 120 dB |
| Optical Lens | |
| Megapixel | Yes (8MP/4K) |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| FOV | Horizontal: 112° Vertical: 60.1° Diagonal: 146.1° |
| Operation | |
| Focus | Fixed |
| Zoom | |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| DORI | |
| Detect (25PPM) | 84 m (275.6 ft) |
| Observe (63PPM) | 33.6 m (110.2 ft) |
| Recognize (125PPM) | 16.8 m (55.1 ft) |
| Identify (250PPM) | 8.4 m (27.6 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 20 fps at 3840 x 2160 (4K) 30 fps at 3072 x 1728 / 2560 x 1440 / 1920 x 1080 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm, Audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP. |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One‐way Audio |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Video Resolution | |
| Main Stream | 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080 |
| Sub Stream | 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack (DC 12 V, 1.25 A), PoE Ethernet: RJ-45 Audio: 1 In (built-in microphone) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Environment Temperature | Start-up: -30°C ~ 60°C (-22°F ~ 140°F) Operation: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6.4 W |
| Dimensions | Ø 126 x 92.7 mm (Ø 5.0" x 3.6") |
| Weight | 0.45 kg (0.99 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Application | |
| Software Supported | GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-EBD880W-0010 is an 8MP (4K) eyeball dome camera featuring a 2.8mm fixed lens with 112° ultra-wide FOV, delivering 3840x2160 resolution at 20fps. With 0.01 lux color minimum illumination, IR night vision up to 30m, and WDR Pro (120dB), it captures clear 4K imagery in challenging lighting conditions. Housed in an IP67-rated weatherproof casing with 3-axis adjustment, it operates from -30°C to 60°C. Powered by on-device deep learning, it delivers AI Perimeter Protection with human/vehicle classification (cross line, intrusion, enter/leave area), face detection, people counting, and crowd density monitoring (one AI function at a time). H.265 triple streaming with edge storage up to 512GB ensures robust performance. Fully ONVIF compliant, it integrates with GV-VMS and GV-Eye for professional 4K AI surveillance.
