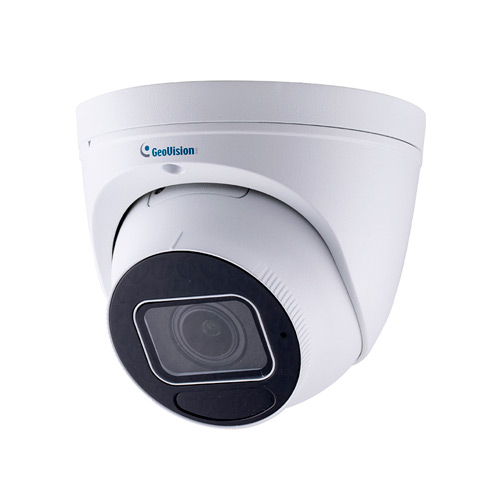

GeoVIsion - 84-EBD881K-3010 - AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Camera 2.8~12mm
• AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.8" progressive scan CMOS
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.003 lux
• Up to 20 fps at 3840 x 2160
• Intelligent IR
• Day and night function (with removable IR-cut filter)
• Motorized varifocal lens for remote focus / zoom adjustment
• 3-axis mechanism (pan / tilt / rotate)
• IR distance up to 40 m (130 ft)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan super low lux CMOS |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Minimum Illumination | Color: 0.003 Lux (F1.5, AGC ON) IR ON: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR | WDR Pro |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 8 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.8 ~ 12 mm |
| Maximum Aperture | F/1.6 |
| Mount | Ø 12 mm |
| FOV | Horizontal: 107° ~ 29° Vertical: 54.2°~16.3° Diagonal: 111.0°~33.1° |
| Focus | Auto / Manual |
| Zoom | 4.3x Optical Zoom |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 40 m (130 ft) |
| DORI | |
| Detect | 2.8 mm: 86.9 m (285.1 ft) 12 mm: 372.4 m (1221.8 ft) |
| Observe | 2.8 mm: 34.8 m (114.2 ft) 12 mm: 149 m (488.8 ft) |
| Recognize | 2.8 mm: 17.4 m (57.1 ft) 12 mm: 74.5 m (244.4 ft) |
| Identify | 2.8 mm: 8.7 m (28.5 ft) 12 mm: 37.2 m (122.0 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080 Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 Third Stream (Closed by Default): 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Frame Rate | 20 fps at 3840 x 2160, 25 fps at 3072 x 1728 / 2560 x 1440, 30 fps at 1920 x 1080 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Streams | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP. |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way Audio |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack (DC 12V, 1.25A), PoE Ethernet: RJ-45 Audio: 1 In (built-in microphone) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Environment Temperature | Start-up: -30°C ~ 60°C (-22°F ~ 140°F) Operation: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 8.16W |
| Dimensions | Ø 129 x 110 mm (Ø5.1" x 4.3") |
| Weight | 0.67 kg (1.48 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Supported | |
| Software Supported | GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-EBD881K-3010 is a professional 8MP (4K) eyeball dome camera featuring a motorized 2.8-12mm varifocal lens with 4.3x optical zoom, delivering 3840x2160 Ultra HD resolution at 20fps. With a 107° to 29° horizontal FOV and F1.6 fast aperture, it offers exceptional flexibility from wide-area coverage to long-distance surveillance - with DORI detection up to 372.4m at telephoto. Super Low Lux technology achieves 0.003 lux color minimum illumination, supported by dual IR LEDs providing 40m night vision. WDR Pro (120dB) and 56dB S/N ratio ensure outstanding image quality in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 rating and full 3-axis adjustment, it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, it delivers AI Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring (one AI function at a time). H.265 triple streaming with 40 Mbps throughput and edge storage up to 512GB ensures robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye for professional 4K AI surveillance requiring optical zoom flexibility.
