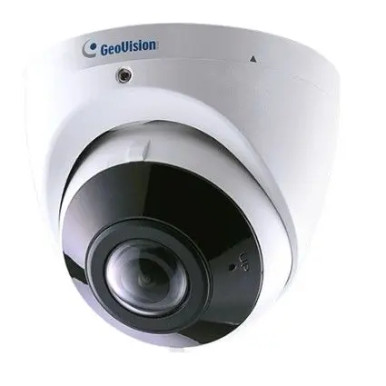

GeoVision - 84-EBDP880-0010 - 8MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan super low lux CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 3840 x 2160
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 8 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 1.68 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/2.0 |
| Mount | Ø 12 mm |
| FOV | Horizontal: 180° Vertical: 100° Diagonal: 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 37.8 m (124.0 ft) |
| Observe | 15.1 m (49.6 ft) |
| Recognize | 7.6 m (24.8 ft) |
| Identify | 3.8 m (12.4 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080 Sub Stream: 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288 Third Stream (Closed by Default): 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 3840 x 2160, 3072 x 1728, 2560 x 1440, 1920 x 1080 (50/60 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 50 Mbps |
| Maximum Streams | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Audio Alarm, Tamper Detection. *Tampering detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°). |
| Audio Compression | G.711 |
| Audio Support | One‐way audio |
| Deep Learning Function | |
| AI Analytics | Human & Vehicle classification: Intrusion, Crossing Line, Entering Area, Leaving Area |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, PPPoE, QoS, IGMP, ONVIF Profile (G, S, T, M) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: No; Built-in speaker: No; External speaker required: No *For devices with microphone or speaker, choose either the built-in or external option. *If equipped with an audio in port, it only supports microphones with power supply. Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | 111 x 93 mm (4.4" x 3.7") |
| Weight | 0.49 kg (1.06 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Applications | |
| Software Supported | GV‐VMS (V17.4.8 or later, patch files required / V18.3.4 / V20.0.0 or later), GV‐Control Center (V4.2.1 or later), GV‐Edge Recording Manager Windows Version (V2.2.8 or later), GV‐Recording Server / Video Gateway (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.1 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox) |
The GeoVision 84-EBDP880-0010 is an 8MP (4K) panoramic dome camera featuring a 1.68mm lens providing true 180° horizontal FOV, delivering 3840x2160 Ultra HD resolution at 30fps. With 0.01 lux color minimum illumination, dual IR LEDs for 20m night vision, and WDR Pro (120dB), it captures comprehensive 4K wide-area coverage in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 rating and 3-axis adjustment, it operates from -30°C to 60°C. Powered by on-device deep learning, it delivers AI analytics with human/vehicle classification for intrusion, crossing line, entering area, and leaving area detection. H.265 triple streaming with 50 Mbps throughput and edge storage up to 512GB ensures robust performance. Fully ONVIF compliant, it integrates with GV-VMS and GV-Eye for professional 180° panoramic 4K AI surveillance with a single camera.
