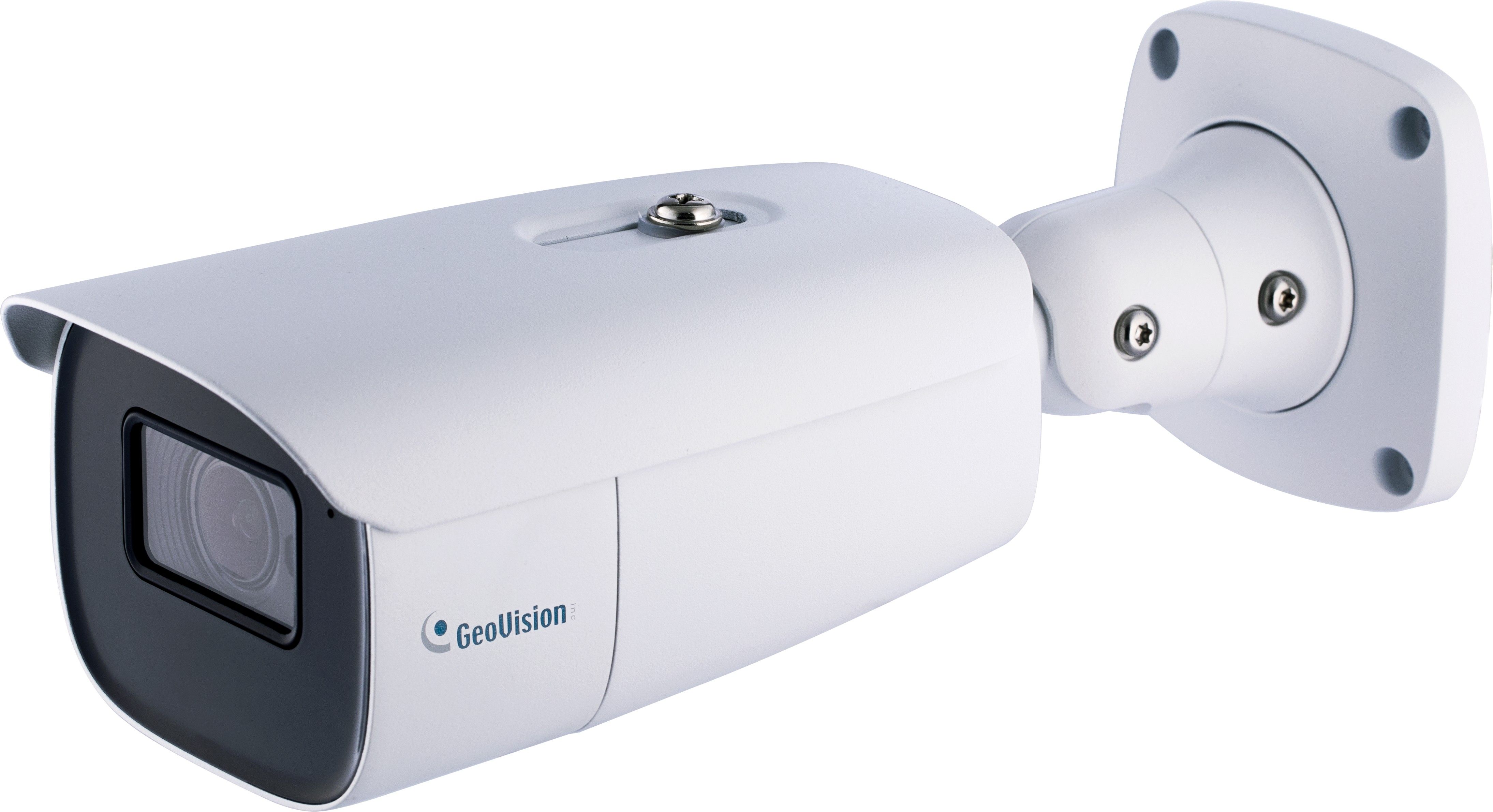

GeoVision - 84-GBL1281-1010 - AI 12MP H.265 4.3x Zoom Super Low Lux IR Bullet IP Camera
• AI deep learning: AI Perimeter Protection & Classification(Human, Vehicle)
• 1/1.7” progressive scan CMOS sensor
• Min. illumination at 0.006 lux
• Five streams from H.265, H.264 and MJPEG
• Up to 30 fps at 4000 x 3000
• Intelligent IR
• IR distance up to 70 m (230 ft)
• Day and Night function (with removable IR-cut filter)
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SDHC / SDXC / UHS-I, Class 10) for local storage
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Defog
• 3D noise reduction
• AI analytics (Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata, Loitering Detection, Illegal Parking, Face Detection)
• Motion detection
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/1.7" progressive scan CMOS |
| Picture Elements | 4000 (H) x 3000 (V) | 12 Megapixels |
| Minimum Illumination | Color: 0.006 Lux (F1.4, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | No |
| Dynamic Range | 75 dB |
| Lens | |
| Megapixel | 12 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8-12 mm |
| Lens Type | Motorized |
| Maximum Aperture | F/1.4 |
| Mount | Ø 14 |
| Horizontal FOV | 96°- 46° |
| Focus | Auto / Manual |
| Zoom | 4.3x |
| Iris | DC |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 70 m (230 ft) |
| DORI | |
| Detect | Wide: 86 m (282.1 ft) Tele: 190 m (623.3 ft) |
| Observe | Wide: 34 m (111.5 ft) Tele: 76 m (249.3 ft) |
| Recognize | Wide: 17 m (55.7 ft) Tele: 38 m (124.6 ft) |
| Identify | Wide: 9 m (29.5 ft) Tele: 19 m (62.3 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Five streams |
| Video Resolution | Main Stream: 4000 x 3000 (Default), 3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080 Sub Stream: 1920 x 1080, 1280 x 960 (Default), 1280 x 720, 704 x 576, 704 x 480, 640 x 360 Third Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 × 240 Fourth Stream: 704 x 480 (Default), 704 x 576, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 × 240 Fifth Stream: 704 x 480 (Default), 704 x 576, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 × 240 |
| Frame Rate | 30 fps at 4000 x 3000 / 3840 x 2160 / 3200 x 1800 / 2688 x 1520 / 1920 x 1080 / 1280 x 960 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz) 25 fps at 4000 x 3000 / 3840 x 2160 / 3200 x 1800 / 2688 x 1520 / 1920 x 1080 / 1280 x 960 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | AI off: 64 Mbps AI on: 12 Mbps |
| Maximum Streams | 10 * When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, WDR, Sharpness, Defog, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°– including Corridor format). |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata - Loitering Detection, Illegal Parking Detection *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Face Event and Smart Event can only be enabled one at a time. |
| Video Metadata | People: Gender, Age, Top / Bottom (Type, Color), Accessories (Hat, Bag, Face Mask, Glasses) Vehicle: Type, Color, Brand, Model Non-Motor Vehicle: Type |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 90° Rotate: 0 ~ 360° |
| Connectors | Power: DC jack, PoE Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: Yes (Audio jack, 3.5 mm); Built-in speaker: No; External speaker required: Yes (Audio jack, 3.5 mm) * For devices with a microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. Video Output: CVBS output (BNC connector x 1) Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14 in) Local Storage: microSD card slot (SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12V DC, 1.5A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 12 W |
| Dimensions | 272.3 x 94.9 x 88.9 mm (10.72 x 3.73 x 3.5 in) |
| Weight | 1.12 kg (2.47 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 with Patch or later, V18.3.4 with Patch or later), GV-Edge Recording Manager (V2.2.8 or later), GV-Control Center (V4.2.1 or later), GV-Recording Server (V2.1.1 with Patch or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Web Browser (Edge 120.0.2210.121, Chrome 120.0.6099.200, Firefox 121.0, Safari 11), Mobile App |
The GeoVision 84-GBL1281-1010 is a high-resolution 12MP bullet camera featuring a large 1/1.7" progressive CMOS sensor and motorized 2.8-12mm varifocal lens with 4.3x optical zoom and F1.4 aperture, delivering 4000x3000 resolution at 30fps. With a 96° to 46° horizontal FOV and four high-power IR LEDs providing 70m night vision, it offers exceptional coverage flexibility with DORI detection up to 190m at telephoto. Super Low Lux technology achieves 0.006 lux color minimum illumination, while 75dB dynamic range and 3DNR ensure clear imaging in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 rating and full 3-axis adjustment, it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, it delivers comprehensive AI analytics including face detection, line crossing, region intrusion, loitering detection, illegal parking detection, target counting, heat mapping, and advanced video metadata with people (gender, age, clothing, accessories) and vehicle (type, color, brand, model) classification. H.265 five-stream encoding with up to 64 Mbps throughput, two-way audio, digital I/O, CVBS output, and edge storage ensure robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional 12MP AI-powered surveillance requiring optical zoom and advanced metadata extraction.
