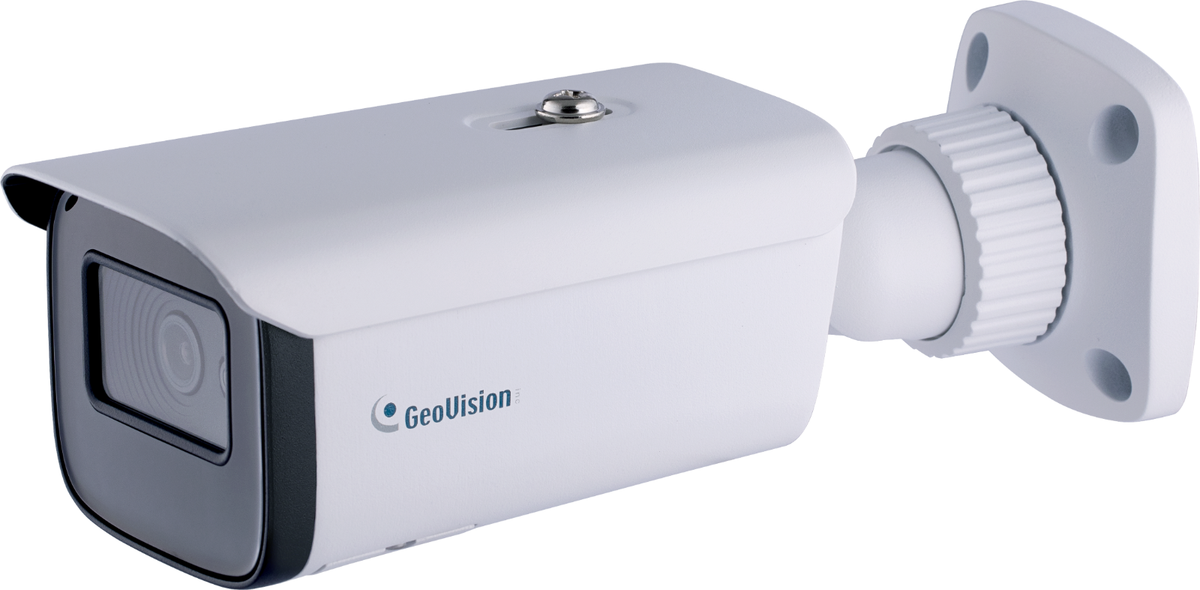

GeoVision - 84-GBL4911-0010 - Cloud AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3” progressive scan CMOS
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• IR distance up to 70 m (230 ft)
• Day and Night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Two-way audio capable
• Built in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.005 Lux (F1.3, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8-12 mm |
| Lens Type | Motorized |
| Maximum Aperture | F/1.3 |
| Mount | Ø 14 |
| FOV | Horizontal: 100° - 28.9° Vertical: 54.5°~16.7° Diagonal: 118°~35° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 4.3x |
| Iris | DC |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 70 m (230 ft) |
| DORI | |
| Detect | Wide: 58.9 m (193.2 ft) Tele: 205.9 m (675.5 ft) |
| Observe | Wide: 23.5 m (77.0 ft) Tele: 82.4 m (270.3 ft) |
| Recognize | Wide: 11.7 m (38.3 ft) Tele: 41.2 m (135.1 ft) |
| Identify | Wide: 5.8 m (19.0 ft) Tele: 20.6 m (67.5 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2688 x 1520 (Default), 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 Sub Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 × 240 Third Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 x 288, 352 × 240 |
| Frame Rate | 30 fps at 2688 x 1520 / 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz) 25 fps at 2688 x 1520 / 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 64 Mbps |
| Maximum Streams | 8 *By default, 2 connections are occupied whether connected to GV-Cloud VMS or not. |
| Video Analytics | Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene Change, Video Blur), Object Abandoned/Missing Detection |
| Smart Alarm | Audio Exception, Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Dual Redundant Images | Yes (for failsafe firmware upgrade) |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification - Loitering Detection, Illegal Parking Detection *Face events and smart events cannot be enabled at the same time. *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported. |
| Video Metadata | People: Gender, Age, Top / Bottom (Type, Color), Accessories (Hat, Bag, Face Mask, Glasses) Vehicle: Type, Color, Brand, Model Non-Motor Vehicle: Type |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 90° Rotate: 0 ~ 360° |
| Connectors | Power: DC jack (DC 12 V, 1.25 A), PoE Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: Yes (audio jack, 3.5 mm or 0.14 in) * Choose either the built-in or external option for devices with a microphone or speaker. * The Audio In port only supports microphones with a power supply. Video Output: CVBS output (BNC connector x 1) Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 12.5 W |
| Dimensions | 272.3 x 94.9 x 88.9 mm (10.72 x 3.73 x 3.5 in) |
| Weight | 1.04 kg (2.29 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.3 / V20.0.0 or later), GV-Edge Recording Manager (V2.2.8 or later), GV-Control Center (V4.2.0 or later), GV-Recording Server (V2.1.1 or later), GV-Center V2 (V18.4.1 or later), GV-Cloud VMS (V1.1.0 or later), GV-IP Device Utility (V9.0.0 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-GBL4911-0010 is a high-performance 4MP bullet camera featuring a 1/3" progressive CMOS sensor delivering 2688x1520 resolution at 30fps. With Super Low Lux technology achieving 0.005 lux minimum illumination and Intelligent IR up to 70m, it captures exceptional detail in extreme low-light and total darkness. The motorized 2.8-12mm varifocal lens provides 4.3x optical zoom with flexible focal adjustment, while WDR Pro, defog, and 3DNR ensure clear imaging in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating, it operates reliably in harsh outdoor environments. Powered by on-device deep learning, the camera delivers comprehensive AI analytics including Perimeter Protection with human/vehicle classification, line crossing, intrusion, loitering, illegal parking detection, face detection, target counting, heat mapping, and video metadata. H.265/H.264 triple streaming optimizes bandwidth efficiency, while two-way audio with built-in microphone and edge storage via microSD card enhance functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye mobile app for end-to-end cloud surveillance.
