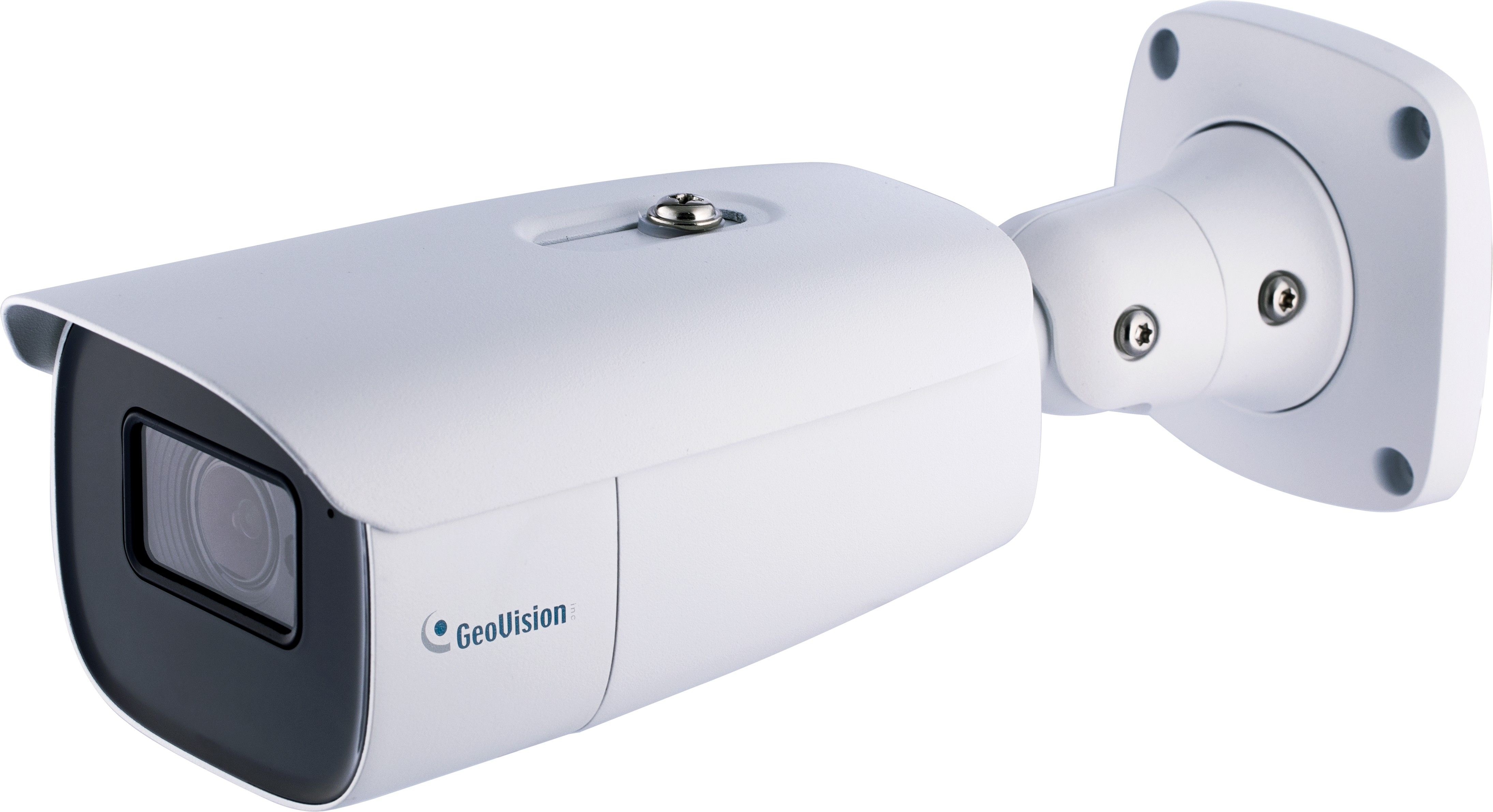

GeoVision - 84-GBL4911-1TB - Cloud AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera, 1TB Micro SD
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3” progressive scan CMOS
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 70 m (230 ft)
• Day and Night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• Built in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2592 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.005 Lux (F1.3, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8-12 mm |
| Lens Type | Motorized |
| Maximum Aperture | F/1.3 |
| Mount | Ø 14 |
| Horizontal FOV | 100°- 28.9° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 4.3x |
| Iris | DC |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 70 m (230 ft) |
| DORI | |
| Detect | Wide: 58.9 m (193.2 ft) Tele: 205.9 m (675.5 ft) |
| Observe | Wide: 23.5 m (77.0 ft) Tele: 82.4 m (270.3 ft) |
| Recognize | Wide: 11.7 m (38.3 ft) Tele: 41.2 m (135.1 ft) |
| Identify | Wide: 5.8 m (19.0 ft) Tele: 20.6 m (67.5 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080 |
| Sub Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 × 240 | |
| Third Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 x 288, 352 × 240 | |
| Frame Rate | 30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz) |
| 25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format). |
| Dual Redundant Images | Yes (for failsafe firmware upgrade) |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC |
| Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) | |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification, Loitering Detection, Illegal Parking Detection *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 90° Rotate: 0 ~ 360° |
| Connectors | Power: DC jack (DC 12 V, 1.25 A), PoE |
| Ethernet: RJ-45 | |
| Audio: 1 In (built-in microphone, external speaker required with power supply), 1 Out (stereo phone jack, 3.5 mm / 0.14”) Video Input: BNC connector Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14”) Local Storage: Micro SD card slot (SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. | |
| General | |
| Operating Temperature | -30~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 12.5 W |
| Dimensions | 272.3 x 94.9 x 88.9 mm (10.72 x 3.73 x 3.5") |
| Weight | 1.04 kg (2.29 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese Traditional |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (V2.2.7 or later), GV-Control Center (V4.2.0 or later), GV-Recording Server (V2.1.1 or later), GV-Cloud VMS (V1.1.0 or later), GV-Center V2 (V18.4.1 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.1.1 or later) |
| Live Viewing | Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-GBL4911-1TB is a professional 4MP bullet camera featuring a motorized 2.8-12mm varifocal lens with 4.3x optical zoom and F1.3 fast aperture, delivering 2592x1520 resolution at 30fps, complete with an included 1TB microSD card for maximum edge storage capacity. With a 100° to 28.9° horizontal FOV and four high-power IR LEDs providing 70m night vision, it offers exceptional flexibility from wide-area coverage to long-distance surveillance - with DORI detection up to 205.9m at telephoto. Super Low Lux technology achieves 0.005 lux color minimum illumination, while WDR Pro (120dB) and BNC video output ensure outstanding image quality in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and full 3-axis adjustment, it operates reliably from -30°C to 60°C. Powered by on-device deep learning, it delivers comprehensive AI analytics including face detection, line crossing, region intrusion, loitering detection, illegal parking detection, target counting, heat mapping, and video metadata with human/vehicle classification. H.265 triple streaming, two-way audio, digital I/O, and pre-installed 1TB edge storage ensure robust long-term recording capabilities. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye for professional cloud-based AI surveillance requiring extended optical zoom, long-range IR, and maximum 1TB local storage capacity.
