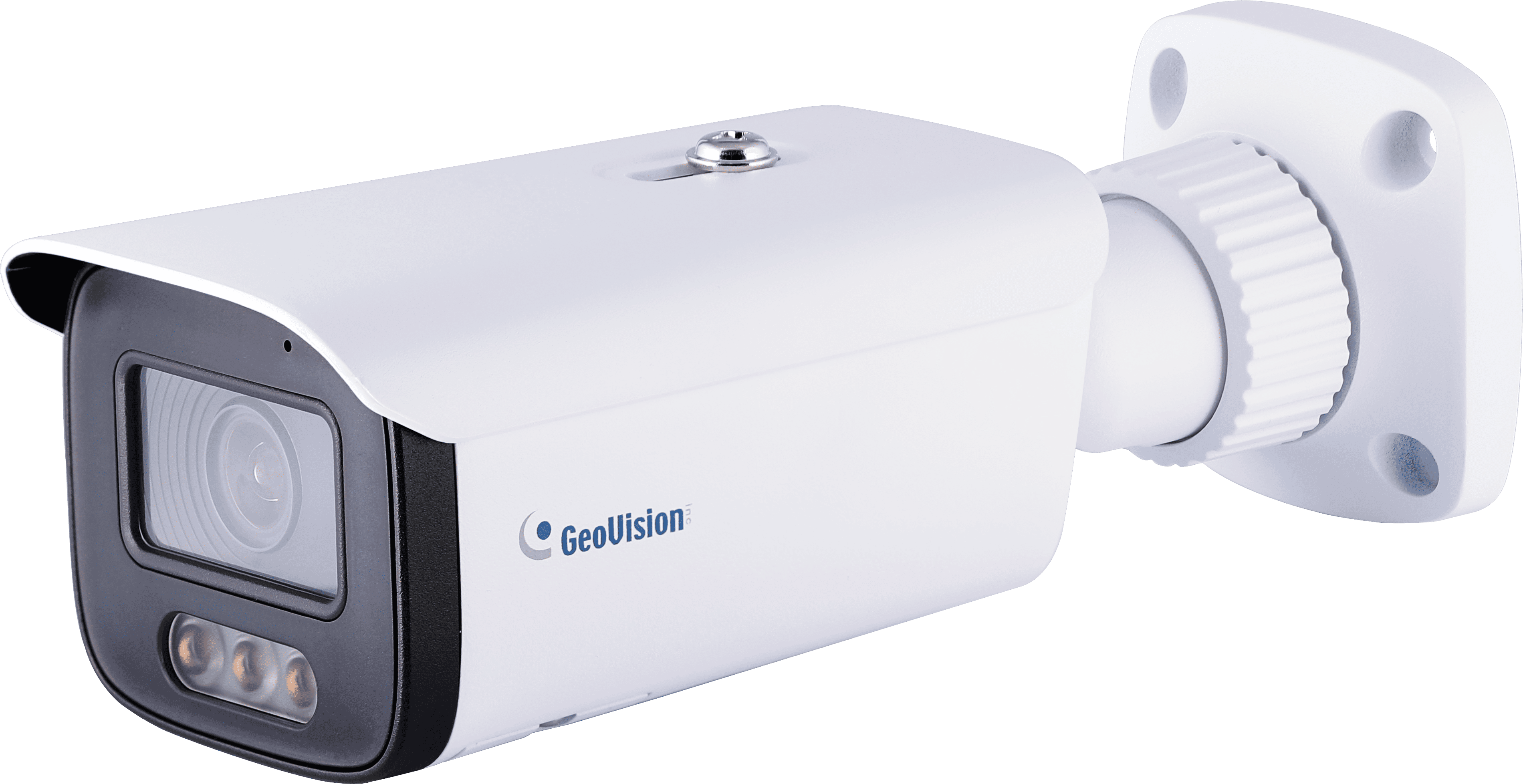

GeoVision - 84-GBLN480-3F10 - AI 4MP WDR Pro Full Color AI-ISP Warm LED Bullet IP Camera, H.265, 3.6mm
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/1.79" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.0001 lux
• Up to 30 fps at 2688 x 1520
• AI-ISP for superior noise reduction and vivid color images, day and night
• Smart warm LED distance up to 30 m (100 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Defog
• 3D noise reduction
• Smart settings (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection)
• Motion detection
• Text overlay
• Privacy mask
• 20 languages supported
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/1.79" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.0001 Lux (F1.0, AGC ON) B/W: N/A LED On: 0 Lux |
| Shutter Speed | Automatic / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes (supported in the next version) |
| Dynamic Range | 120 dB (supported in the next version) |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Color (Full Color) |
| Lens Type | Fixed |
| Focal Length | 3.6 mm |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| FOV | Horizontal: 96° Vertical: 51° Diagonal: 112° |
| Focus | Auto / Manual |
| Zoom | Fixed |
| Iris | Fixed |
| Warm LED Quantity | 3 warm LEDs |
| Max. Warm LED Distance | 30 m (100 ft) |
| DORI | |
| Detect | 63 m (206.6 ft) |
| Observe | 25 m (82.0 ft) |
| Recognize | 12 m (39.3 ft) |
| Identify | 6 m (19.6 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 240 (60 Hz) 25 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 288 (50 Hz) |
| Maximum Throughput | 80 Mbps |
| Maximum Streams | 10 |
| Video Analytics | Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene Change, Video Blur), Object Abandoned/Missing Detection |
| Smart Alarm | Audio Exception, Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, Defog, Antiflicker, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 1920 x 1080 |
| Sub Stream | 1280 x 720 (Default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240, 352 x 288 |
| Third Stream | 1280 x 720 (Default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, API, DDNS, DHCP, FTP, HTTP, HTTP POST, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Deep Learning Function | |
| AI Perimeter Protection | Face Event: Face Detection Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting *Face events and smart events cannot be enabled at the same time. |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 90° Rotate: 0°~ 360° |
| Connectors | Power: DC Jack Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: Yes (Audio jack, 3.5mm); Built-in speaker: No; External speaker required: No * For devices with microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. Digital I/O: N/A Local Storage: Micro SD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operation Temperature | -30~ 60°C (-22 ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V, 1.5A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6.5 W |
| Dimensions | 218.1 x 70.4 x 79.5 mm (8.58 x 2.77 x 3.12 in) |
| Weight | 0.71 kg (1.57 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, One‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Traditional Chinese, Turkish, Ukrainian |
| Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 + Patch or later / V20.0.0 or later), GV-Control Center (V4.2.1 + Patch or later), GV-Edge Recording Manager for Windows (V2.3.0 + Patch or later), GV-Recording Server (V2.1.1 + Patch or later), GV-IP Device Utility (V9.0.3 or later) |
| Smart Device Access | GV-Eye for iOS or Android (V3.4.1 or later) |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
The GeoVision 84-GBLN480-3F10 is a 4MP bullet camera featuring a large 1/1.79" sensor and AI-ISP technology with an F1.0 ultra-fast aperture, delivering 2688x1520 resolution at 30fps and a 96° horizontal FOV. With AI-ISP achieving 0.0001 lux color minimum illumination and three Warm LEDs providing 30m full-color night vision, it captures true color imaging in near-total darkness. Housed in an IK10 metal casing with IP67 rating and 3-axis adjustment, it operates from -30°C to 60°C with DORI detection up to 63m. Powered by on-device deep learning, it delivers AI Perimeter Protection including face detection, line crossing, region intrusion, and target counting (one function at a time). H.265 triple streaming with 80 Mbps throughput and edge storage up to 512GB ensures robust performance. Fully ONVIF compliant for seamless integration with GV-VMS and GV-Eye.
