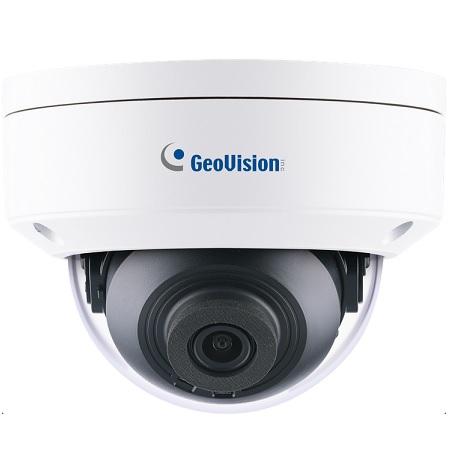

GeoVision - 84-GDR2801-3F10 - AI 2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome, 3.6mm
• AI deep learning: Smart Perimeter Protection & Classification(Human, Vehicle)
• 1/2.8" progressive scan CMOS sensor
• Min. illumination at 0.008 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• Wide Dynamic Range Pro (WDR Pro)
• IR distance up to 30 m (100 ft)
• One-way audio capable
• 3-axis mechanism (pan / tilt / rotate)
• Built-in microSD card slot (SDHC / SDXC / SDXC) for local storage
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• AI analytics (Line Crossing, Region Intrusion)
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• 21 languages supported
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) | 2 Megapixels (1080p) |
| Minimum Illumination | Color: 0.008 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 2 MP |
| Day / Night | Yes (with removeable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 3.6 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| FOV | Horizontal: 89° Vertical: 47.5° Diagonal: 104° |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| DORI | |
| Detect | 50 m (164.0 ft) |
| Observe | 20 m (65.6 ft) |
| Recognize | 10 m (32.8 ft) |
| Identify | 5 m (16.4 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 1920 x 1080 (default), 1280 x 720 Sub Stream: 704 x 480, 704 x 576, 640 x 480, 640 x 360 (default), 352 x 240, 352 x 288 Third Stream: 704 x 480 (default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | 30 fps at 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 640 x 360, 352 x 240 (60 Hz) 25 fps at 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 352 x 288 (50 Hz) |
| Maximum throughput | 6 Mbps |
| Maximum stream | 6 users |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°– including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way Audio (external microphone required) |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion *The two functions can only be enabled one at a time |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 355° Tilt: 0 ~ 70° Rotate: 0 ~ 355° |
| Connectors | Power: DC Jack Ethernet: RJ-45 Audio: Built-in microphone: No; External microphone required: Yes (Audio jack, 3.5 mm); Built-in speaker: No; External speaker required: No * For devices with microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. Digital I/O: N/A Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12V, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 4 W |
| Dimensions | Ø 110 × 83 mm (Ø 4.3" × 3.3") |
| Weight | 0.5 kg (1.10 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (LA), Traditional Chinese, Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 with Patch or later, V18.3.5), GV-Edge Recording Manager (V2.3.0 or later), GV-Control Center (V4.2.1 or later), GV-Recording Server (V2.1.1 with Patch or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.4.1 or later) |
| Live Viewing | Web Browser (Edge 120.0.2210.121, Chrome 120.0.6099.200, Firefox 121.0, Safari 11) |
The GeoVision 84-GDR2801-3F10 is a compact 2MP turret camera featuring a 1/2.8" progressive scan CMOS sensor delivering 1920x1080 Full HD resolution at 30fps. Equipped with a 3.6mm fixed lens providing an 89° horizontal FOV at F1.6 fast aperture, it captures targeted coverage ideal for entryways and corridors with enhanced detail at distance. With Super Low Lux technology achieving 0.008 lux color minimum illumination and a single IR LED providing 30m night vision, it delivers clear imaging in low-light conditions. WDR Pro (120dB) and 3DNR ensure exceptional image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and 3-axis mechanical adjustment, it operates reliably from -30°C to 60°C with DORI detection up to 50m.
Powered by on-device deep learning, it delivers AI analytics, including line crossing and region intrusion (one function at a time). H.265 triple streaming with edge storage up to 256GB ensures robust performance. Video analytics include motion detection, object abandoned/missing detection, and video exception detection. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional 2MP AI surveillance requiring a compact turret form factor with a narrower FOV for enhanced detail.
