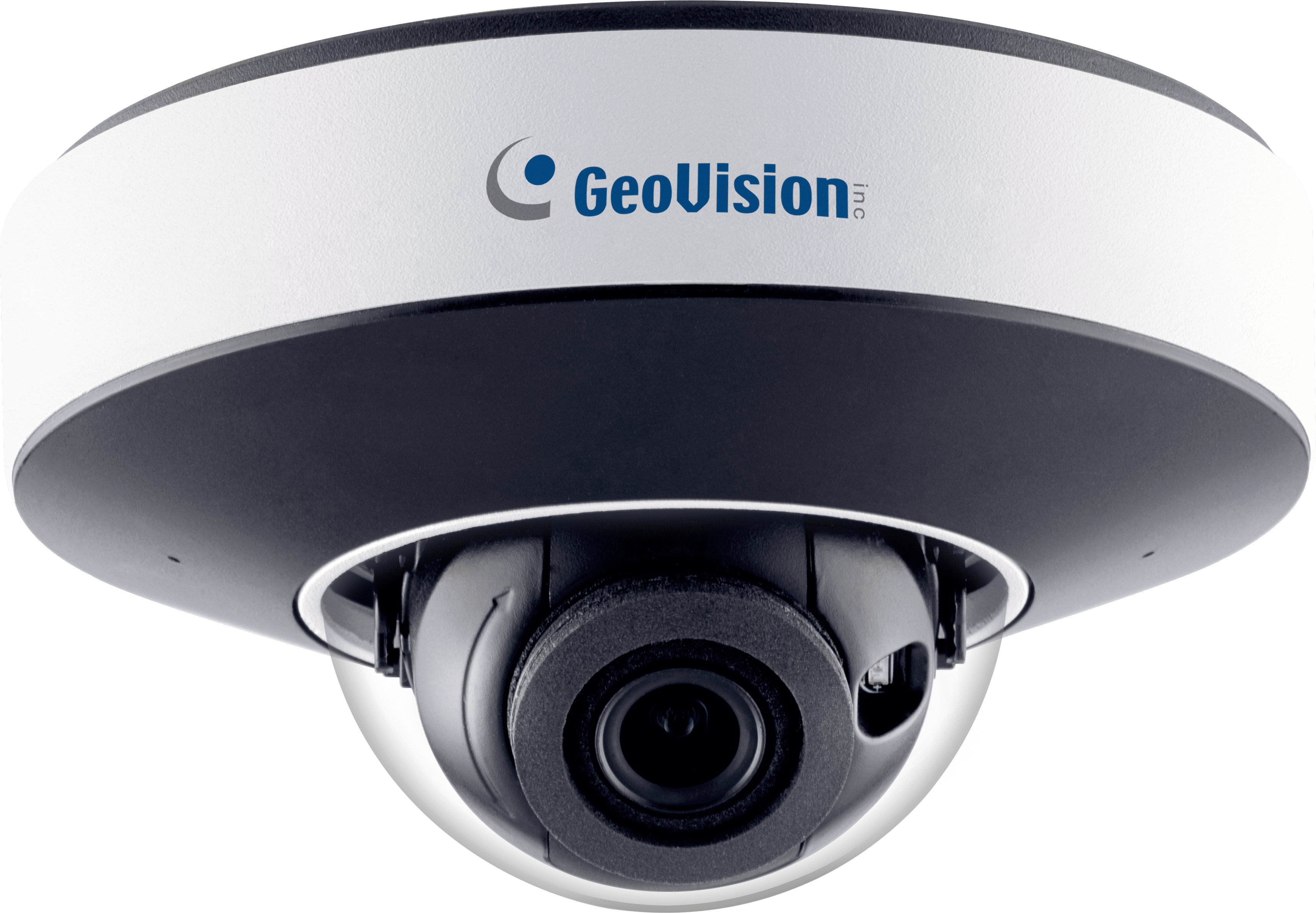

GeoVision - 84-GDR4900-0010 - Cloud AI 4MP WDR Pro IR Mini Fixed Rugged IP Dome
• GV-Cloud Service
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.005 lux
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• Ingress protection (IP67)
• 3-axis mechanism (pan / tilt / rotate)
• Vandal resistance (IK10 for metal casing)
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Two-way audio capable
• Built-in microphone
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| FOV | Horizontal: 95.3° Vertical: 53.2° Diagonal: 100.7° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 60.6 m (198.8 ft) |
| Observe | 24.2 m (79.3 ft) |
| Recognize | 12.1 m (39.6 ft) |
| Identify | 6.0 m (19.6 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2688 x 1520 (Default), 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 Sub Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 × 240 Third Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 × 240 |
| Frame Rate | 30 fps at 2688 x 1520 / 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz) 25 fps at 2688 x 1520 / 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 64 Mbps |
| Maximum Streams | 8 *By default, 2 connections are occupied whether connected to GV-Cloud VMS or not. |
| Video Analytics | Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene Change, Video Blur), Object Abandoned/Missing Detection |
| Smart Alarm | Audio Exception, Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Dual Redundant Images | Yes (for failsafe firmware upgrade) |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification - Loitering Detection, Illegal Parking Detection *Face events and smart events cannot be enabled at the same time. *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported. |
| Video Metadata | People: Gender, Age, Top / Bottom (Type, Color), Accessories (Hat, Bag, Face Mask, Glasses) Vehicle: Type, Color, Brand, Model Non-Motor Vehicle: Type |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 75° Rotate: 0 ~ 350° |
| Connectors | Power: DC Jack (DC 12 V, 1 A) / PoE (IEEE 802.3af) Ethernet: RJ-45 Built-in microphone: Yes External microphone required: Yes (audio jack, 3.5 mm or 0.14 in) Built-in speaker: No External speaker required: Yes (audio jack, 3.5 mm or 0.14 in) Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12 V / PoE (IEEE 802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | Ø 110.4 x 62 mm (Ø 4.3 x 2.4 in) |
| Weight | 0.42 kg (0.93 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Two‐way Audio Capable, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.3 / V20.0.0 or later), GV-Edge Recording Manager (V2.2.8 or later), GV-Control Center (V4.2.0 or later), GV-Recording Server (V2.1.1 or later), GV-Center V2 (V18.4.1 or later), GV-Cloud VMS (V1.3.0 or later), GV-IP Device Utility (V8.9.9 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
The GV-Cloud AI 4MP Mini Rugged Dome is a compact, high-performance IP camera featuring a 1/3" progressive CMOS sensor delivering 2688x1520 resolution at 30fps. With minimum illumination of 0.005 lux, Intelligent IR up to 20m, and WDR Pro technology, it delivers clear imaging in extreme low-light and high-contrast environments. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating, the 3-axis mechanism (pan/tilt/rotate) enables flexible installation in demanding indoor and outdoor applications. Powered by on-device deep learning, the camera performs comprehensive AI analytics including AI Perimeter Protection with human/vehicle classification, line crossing, intrusion, loitering, illegal parking detection, face detection, target counting, heat mapping, and video metadata extraction. H.265/H.264 triple streaming, two-way audio with built-in microphone, and edge storage via microSD card ensure robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye mobile app for cloud-based surveillance.
