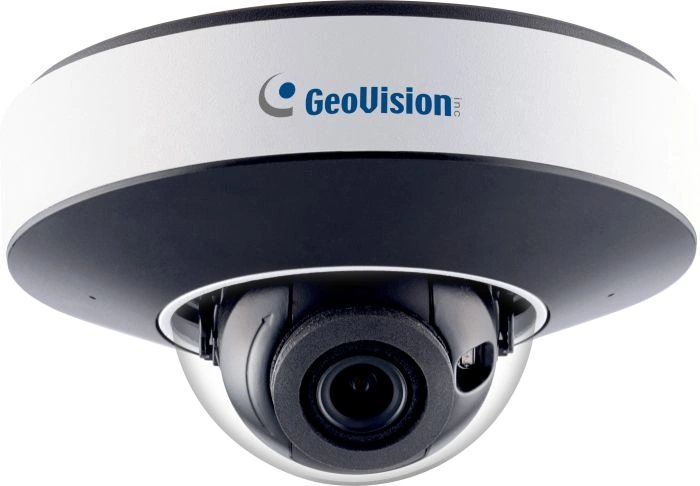

GeoVision - 84-GDR4900-1TB - Cloud AI 4MP WDR Pro IR Mini Fixed Rugged IP Dome, 1TB Micro SD
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3” progressive scan CMOS
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and Night function (with removable IR-cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• Built in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2592(H) x 1520(V) | 4 Megapixels |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Horizontal FOV | 95.3° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 60.6 m (198.8 ft) |
| Observe | 24.2 m (79.3 ft) |
| Recognize | 12.1 m (39.6 ft) |
| Identify | 6.0 m (19.6 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080 |
| Sub Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 × 240 | |
| Third Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 × 240 | |
| Frame Rate | 30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz) |
| 25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Object Abandoned/Missing Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnected, Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format). |
| Dual Redundant Images | Yes (for failsafe firmware upgrade) |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC |
| Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) | |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification, Loitering Detection, Illegal Parking Detection *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 75° Rotate: 0 ~ 350° |
| Connectors | Power: DC Jack (DC 12 V, 1 A) / PoE (IEEE 802.3af) |
| Ethernet: RJ-45 | |
| Audio: 1 In (built-in microphone, external speaker required with power supply), 1 Out (stereo phone jack, 3.5 mm / 0.14”) Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14”) Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) *UHS-II card type is not supported. | |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12 V / PoE (IEEE802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | Ø 110.4 x 62 mm (Ø 4.3 x 2.4") |
| Weight | 0.42 kg (0.93 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Two‐way Audio Capable, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese Traditional |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.6 / V18.3.2 or later), GV-Edge Recording Manager (V2.2.5 or later), GV-Control Center (V4.1.0 or later), GV-Recording Server (V2.3.0, coming soon) |
| Smart Device Access | GV-Eye for iOS and Android (V3.1.1 or later) |
| Live Viewing | Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile APP |
The GeoVision 84-GDR4900-1TB is a compact 4MP mini rugged dome camera featuring a 1/3" progressive CMOS sensor delivering 2592x1520 resolution at 30fps, complete with an included 1TB microSD card for maximum edge storage capacity. Equipped with a 2.8mm fixed lens providing a 95.3° horizontal FOV at F1.6 aperture, it captures wide-area coverage ideal for discreet surveillance applications. With 0.005 lux color minimum illumination, dual IR LEDs providing 20m night vision, and WDR Pro (120dB), it delivers exceptional image quality in challenging lighting conditions. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and 3-axis mechanical adjustment, it operates reliably from -30°C to 60°C with DORI detection up to 60.6m. Powered by on-device deep learning, it delivers comprehensive AI analytics including face detection, line crossing, region intrusion, loitering detection, illegal parking detection, target counting, heat mapping, and video metadata with human/vehicle classification. H.265 triple streaming, two-way audio, digital I/O, and pre-installed 1TB edge storage ensure robust long-term recording capabilities. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye for professional cloud-based AI surveillance requiring a compact form factor with maximum 1TB local storage capacity.
