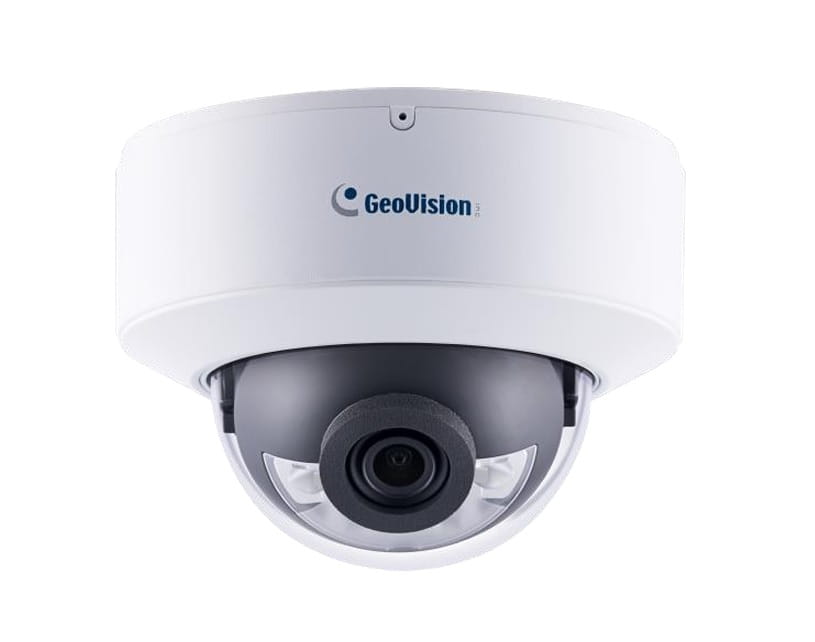

GeoVision - 84-GDRF480-2F10 - AI 4MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Mini Fixed Rugged IP Dome, 2.8mm
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2560 x 1440
• Wide Dynamic Range Pro (WDR Pro)
• Smart white LED distance up to 30 m (100 ft)
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• 3-axis mechanism (pan / tilt / rotate)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• DC 12V / PoE (IEEE 802.3af)
• AI analytics (Line Crossing, Region Intrusion)
• Smart lighting switch between IR LED (for motion detection) and White LED (for people, vehicle and motorcycle detection)
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• 21 languages supported
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2560 (H) x 1440 (V) | 4 Megapixels (2K QHD) |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Image Format | 1/3" |
| FOV | Horizontal: 94° Vertical: 50° Diagonal: 115° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Smart Illumination Quantity | 2 White LEDs |
| Max. White LED Light Distance | 30 m (100 ft) |
| DORI | |
| Detect | 62 m (203.4 ft) |
| Observe | 25 m (82.0 ft) |
| Recognize | 12 m (39.3 ft) |
| Identify | 6 m (19.6 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2560 x 1440 (default), 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720 (default), 704 x 480, 704 x 576, 640 x 480, 352 x 240, 352 x 288 Third Stream: 704 x 480 (default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | Max. 30 fps (60 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 480 x 240, 352 x 240 Max. 25 fps (50 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 480 x 240, 352 x 288 |
| Maximum Throughput | 36 Mbps |
| Maximum Streams | 6 |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°– including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion (Human & Vehicle classification) * The two functions can only be enabled one at a time. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 355° Tilt: 0 ~ 70° Rotate: 0 ~ 180° |
| Connectors | Power: DC jack Ethernet: RJ-45 connector Audio: Built-in microphone: Yes; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: No * Choose either the built-in or external microphone. * The Audio In port only supports microphones with a power supply. Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12V, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | Ø 119 × 87.8 mm (Ø 4.7 × 3.5 in) |
| Weight | 0.64 kg (1.41 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required / V20.0.0 or later), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge Recording Manager (V2.3.0 or later), GV-Recording Server (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.4 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.4.1 or later) |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
The GeoVision 84-GDRF480-2F10 is an advanced 4MP turret camera featuring a 1/3" progressive CMOS sensor delivering 2560x1440 Quad HD resolution at 30fps. Equipped with a 2.8mm fixed lens providing a 94° horizontal FOV at F1.6 aperture, it captures wide-area coverage ideal for perimeter and entryway surveillance. With Super Low Lux technology achieving 0.005 lux color minimum illumination and dual illuminators - two IR LEDs and two White LEDs, both providing 30m distance - it delivers true full-color night vision without infrared. WDR Pro (120dB) and 3DNR ensure exceptional image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and 3-axis mechanical adjustment, it operates reliably from -30°C to 60°C with DORI detection up to 62m.
Powered by on-device deep learning, it delivers AI analytics including line crossing and region intrusion with human and vehicle classification (one function at a time). H.265 triple streaming with 36 Mbps throughput and edge storage up to 256GB ensures robust performance. Video analytics include motion detection, object abandoned/missing detection, and video exception detection. One-way audio with built-in microphone provides essential functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for professional AI-powered 4MP surveillance requiring full-color night vision in a rugged turret form factor.
