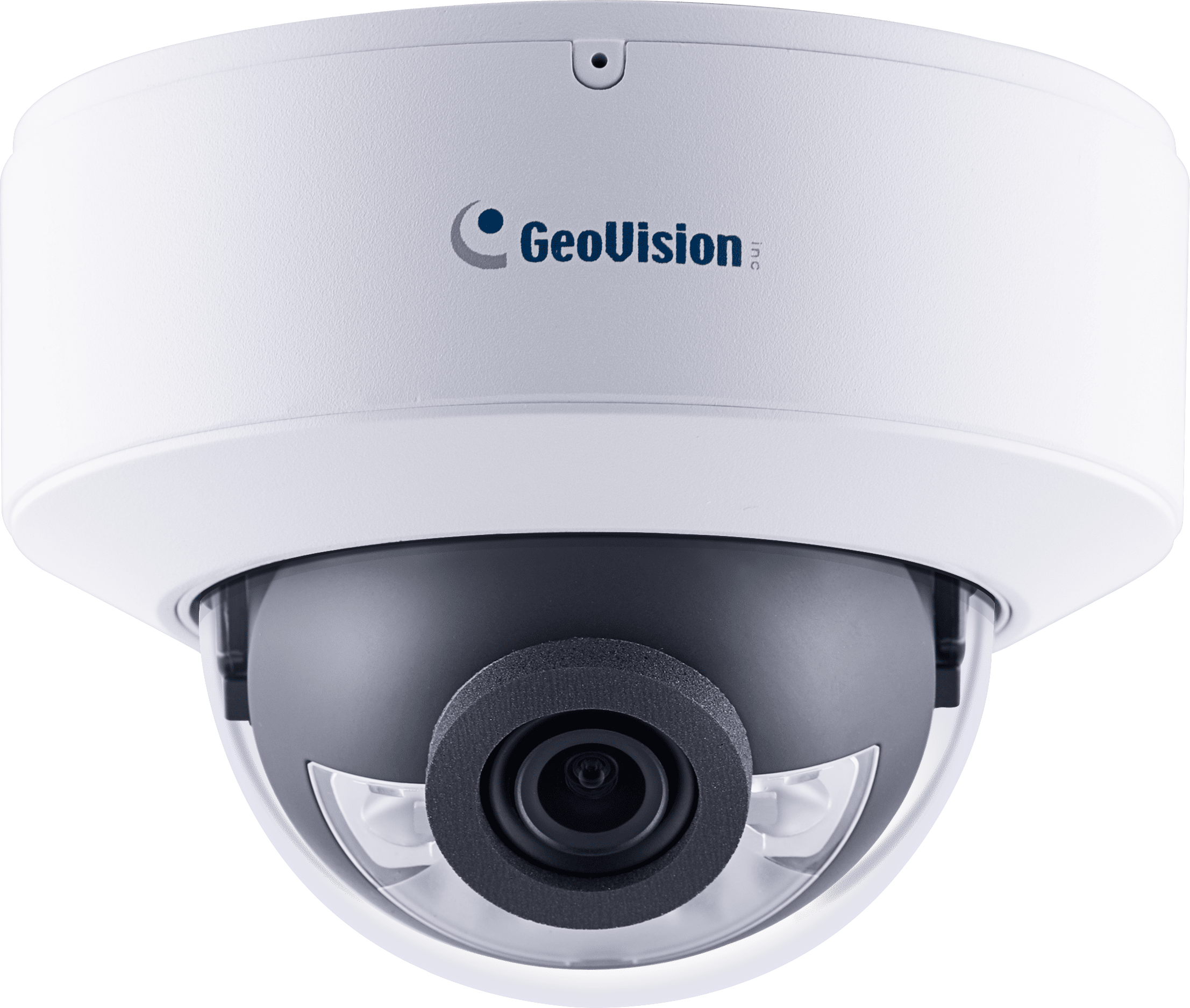

GeoVision - 84-GDRF480-3F10 - AI 4MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Mini Fixed Rugged IP Dome, 3.6mm
• AI deep learning: Smart Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2560 x 1440
• Wide Dynamic Range Pro (WDR Pro)
• Smart white LED distance up to 30 m (100 ft)
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• 3-axis mechanism (pan / tilt / rotate)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2560 (H) x 1440 (V) | 4 Megapixels (2K QHD) |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 3.6 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Image Format | 1/3" |
| FOV | Horizontal: 78° Vertical: 40° Diagonal: 97° |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Smart Illumination Quantity | 2 White LEDs |
| Max. White LED Light Distance | 30 m (100 ft) |
| DORI | |
| Detect | 79 m (259.1 ft) |
| Observe | 32 m (104.9 ft) |
| Recognize | 16 m (52.4 ft) |
| Identify | 8 m (26.2 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2560 x 1440 (default), 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720 (default), 704 x 480, 704 x 576, 640 x 480, 352 x 240, 352 x 288 Third Stream: 704 x 480 (default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | Max. 30 fps (60 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 480 x 240, 352 x 240 Max. 25 fps (50 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 480 x 240, 352 x 288 |
| Maximum Throughput | 6 Mbps |
| Maximum Stream | 6 |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°– including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion (Human & Vehicle classification) * The two functions can only be enabled one at a time. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 355° Tilt: 0 ~ 70° Rotate: 0 ~ 180° |
| Connectors | Power: DC jack Ethernet: RJ-45 connector Audio: Built-in microphone: Yes; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: No * Choose either the built-in or external microphone. * The Audio In port only supports microphones with a power supply. Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12V, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | Ø 119 × 87.8 mm (Ø 4.7 × 3.5 in) |
| Weight | 0.64 kg (1.41 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required), GV-Control Center (V4.2.1.0 or later), GV-Edge Recording Manager (V2.3.0 or later), GV-Recording Server (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.4 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.4.1 or later) |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
The GeoVision 84-GDRF480-3F10 is an advanced 4MP turret camera featuring a 1/3" progressive CMOS sensor delivering 2560x1440 Quad HD resolution at 30fps. Equipped with a 3.6mm fixed lens providing a 78° horizontal FOV at F1.6 aperture, it captures targeted coverage ideal for entryways and corridors with enhanced detail at distance. With Super Low Lux technology achieving 0.005 lux color minimum illumination and dual illuminators - two IR LEDs and two White LEDs, both providing 30m distance - it delivers true full-color night vision without infrared. WDR Pro (120dB) and 3DNR ensure exceptional image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and 3-axis mechanical adjustment, it operates reliably from -30°C to 60°C with DORI detection up to 79m.
Powered by on-device deep learning, it delivers AI analytics including line crossing and region intrusion with human and vehicle classification (one function at a time). H.265 triple streaming with edge storage up to 256GB ensures robust performance. Video analytics include motion detection, object abandoned/missing detection, and video exception detection. One-way audio with built-in microphone provides essential functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for professional AI-powered 4MP surveillance requiring full-color night vision in a rugged turret form factor with narrower FOV for enhanced detail.
