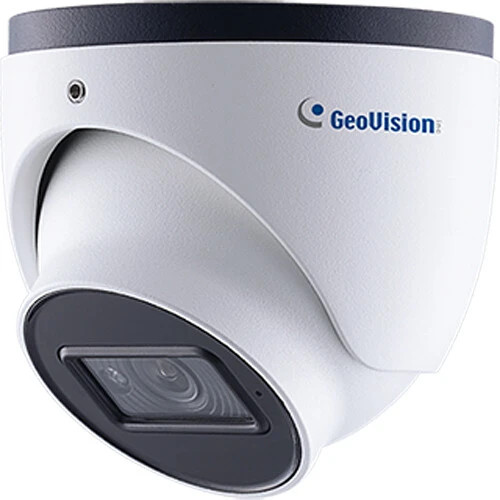

GeoVision - 84-GEB4900-0010 - Cloud AI 4MP WDR Pro Eyeball Dome IP Camera 2.8mm
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Day and Night function (with removable IR-cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• Two-way audio capable
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2592 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR | WDR Pro |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Horizontal FOV | 95.3° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 1 LED |
| Max. IR Distance | 30 m (100 ft) |
| DORI | |
| Detect | 60.6 m (198.8 ft) |
| Observe | 24.2 m (79.3 ft) |
| Recognize | 12.1 m (39.6 ft) |
| Identify | 6.0 m (19.6 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080 Sub Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 × 240 Third Stream: 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 × 240 |
| Frame Rate | 30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz) 25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Object Abandoned/Missing Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnected, Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception |
| Image Setting | ROI, Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Dual Redundant Images | Yes (for failsafe firmware upgrade) |
| Audio Compression | G.711 |
| Audio Support | Two-way audio (external speaker required) |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification - Loitering Detection, Illegal Parking Detection *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 75° Rotate: 0°~ 360° |
| Connectors | Power: DC Jack (DC 12V, 1 A) / PoE (IEEE 802.3af) Ethernet: RJ-45 Audio: 1 In (built-in microphone, or external speaker and microphone with power supply), 1 Out (stereo phone jack, 3.5 mm / 0.14”) Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
| General | |
| Operation Temperature | -30~ 60°C (-22 ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V / PoE (IEEE802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | Ø 94.6 x 82.8 mm (Ø 3.72” x 3.26”) |
| Weight | 0.46 kg (1.01 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Two‐way Audio Capable, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese Traditional |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.6 / V18.3.2 or later), GV-Edge Recording Manager (V2.2.5 or later), GV-Control Center (V4.1.0 or later), GV-Recording Server (V2.3.0, coming soon) |
| Smart Device Access | GV-Eye for iOS and Android (V3.1.1 or later) |
| Live Viewing | Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile APP |
The GV-Cloud AI 4MP Eyeball Dome is a compact, high-performance IP camera featuring a 1/3" progressive CMOS sensor delivering 2592x1520 resolution at 30fps. Equipped with a 2.8mm fixed lens (95.3° horizontal FOV) and F1.6 aperture, it provides exceptional low-light sensitivity down to 0.005 lux in color and 0 lux with IR. WDR Pro (120dB) and 3DNR ensure clear imaging in high-contrast scenes, while the built-in IR LED offers up to 30m night vision. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating, it operates reliably from -30°C to 60°C. Powered by on-device deep learning, the camera performs real-time AI analytics, including face detection, human/vehicle classification, and smart events such as line crossing, intrusion, loitering, and illegal parking detection. It supports H.265/H.264 compression with dual redundant images for fail-safe firmware upgrades. Two-way audio, edge storage via microSD card (UHS-I), and triple streaming enable flexible deployment. Fully compliant with ONVIF Profiles G/S/T/M, it integrates seamlessly with GV-Cloud VMS, GV-Eye mobile app, and major web browsers for comprehensive cloud-based surveillance.
