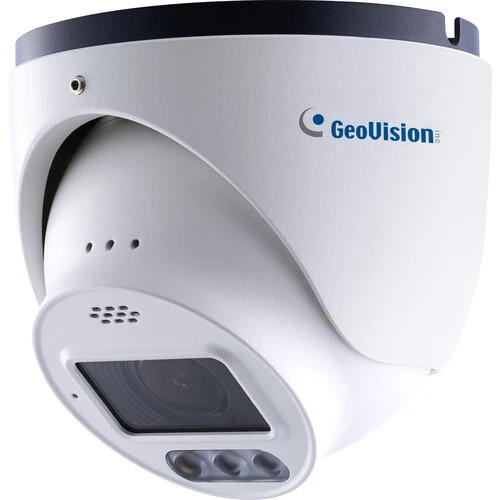

GeoVision - 84-GEBF491-1010 - Cloud AI 4MP WDR Pro Eyeball Dome IP Camera, H.265 4.3x Zoom Super Low Lux Full Color Warm LED
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.02 lux
• Up to 30 fps at 2592 x 1520
• Smart Warm LED distance up to 40 m (130 ft)
• Intelligent IR
• IR distance up to 40 m (130 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone and speaker
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP66)
• Vandal resistance (IK10 for metal casing)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2592 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.02 Lux (F1.4, AGC ON) |
| Shutter Speed | Automatic / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR | WDR Pro |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized |
| Focal Length | 2.8 -12 mm |
| Maximum Aperture | F/1.4 |
| Mount | Ø 14 |
| FOV | Horizontal: 96°~32.33° Vertical: 53.67°~19.63° Diagonal: 114.17°~36.33° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 4.3x |
| Iris | DC |
| Active Deterrence LED | 1 red and blue LED |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 40 m (130 ft) |
| Warm LED Quantity | 1 Warm LED |
| Max. Warm LED Light Distance | 40 m (130 ft) |
| DORI | |
| Detect | Wide: 60.0 m (196.8 ft) Tele: 175.7 m (576.4 ft) |
| Observe | Wide: 24.0 m (78.7 ft) Tele: 70.2 m (230.3 ft) |
| Recognize | Wide: 12.0 m (39.3 ft) Tele: 35.1 m (115.1 ft) |
| Identify | Wide: 6.0 m (19.6 ft) Tele: 17.5 m (57.4 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720 (Default), 704 x 480, 640 x 480, 352 x 240 Third Stream (Closed by Default): 704 x 480, 640 x 480, 352 x 240, 480 x 240 |
| Frame Rate | 30 fps at 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 480 x 240 (60 Hz) 25 fps at 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 567, 640 x 480, 352 x 288, 480 x 240 (50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 80 Mbps |
| Maximum Streams | 10 *By default, 2 connections are occupied whether connected to GV-Cloud VMS or not. |
| Video Analytics | Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene Change, Video Blur), Object Abandoned/Missing Detection |
| Smart Alarm | Audio Exception, Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Antiflicker, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Dual Redundant Images | Yes (for failsafe firmware upgrade) |
| Audio Compression | G.711 |
| Audio Support | Two-way audio |
| Digital I/O | Input: 1 input, dry contact, NO/NC Output: 1 relay output (1A 30V DC / 0.3A 125V AC) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, QoS, ONVIF (Profile G, S, T, M), API |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection Smart Event: - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification *Face events and smart events cannot be enabled at the same time. *A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported. |
| Video Metadata | People: Gender, Age, Top / Bottom (Type, Color), Accessories (Hat, Bag, Face Mask, Glasses) Vehicle: Type, Color, Brand, Model Non-Motor Vehicle: Type |
| Camera Angle Adjustment | |
| Pan | 0°~ 360° |
| Tilt | 0°~ 75° |
| Rotate | 0°~ 360° |
| Connectors | |
| Power | DC 12V, PoE (IEEE 802.3af) |
| Ethernet | RJ-45 |
| Audio | Built-in microphone: Yes External microphone required: Yes (audio jack, 3.5 mm or 0.14 in) Built-in speaker: Yes External speaker required: Yes (audio jack, 3.5 mm or 0.14 in) * Choose either the built-in or external option for devices with a microphone or speaker. * The Audio In port only supports microphones with a power supply. |
| Digital I/O | 4‐pin terminal block pitch 3.5 mm (0.14”) |
| Local Storage | microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operation Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V, PoE (IEEE 802.3af) |
| Max. Power Consumption | 12W |
| Dimensions | Ø 111.6 x 99.3 mm (Ø 4.39 x 3.91 in) |
| Weight | 0.64 kg (1.41 lb) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Two‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.7 / V18.3.2 / V20.0.0 or later), GV-Edge Recording Manager (V2.2.8 or later), GV-Control Center (V4.1.1 or later), GV-Recording Server (V2.1.1 or later), GV-Center V2 (V18.4.1 or later), GV-Cloud VMS (V1.0.0 or later), GV-IP Device Utility (V8.9.9 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-GEBF491-1010 is an advanced 4MP eyeball dome camera featuring a motorized 2.8-12mm varifocal lens (4.3x optical zoom) with F1.4 aperture for exceptional low-light sensitivity down to 0.02 lux in color. Equipped with dual illuminators- one IR LED (40m) and one Warm LED (40m)- it delivers full-color night vision without sacrificing detail. WDR Pro (120dB), 3DNR, and Auto Focus ensure crisp 2592x1520 resolution at 30fps across the full 96° to 32° horizontal FOV. The IK10 vandal-resistant metal housing with IP66 rating provides rugged durability for demanding indoor/outdoor installations. Powered by on-device deep learning, the camera delivers comprehensive AI analytics, including face detection, human/vehicle classification, line crossing, intrusion, loitering, illegal parking detection, target counting, heat mapping, and advanced video metadata (gender, age, clothing color, accessories, vehicle brand/model). Active deterrence with red/blue LED warning enhances on-site security. H.265/H.264 triple streaming, two-way audio with built-in microphone and speaker, digital I/O, and edge storage up to 256GB ensure robust functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye mobile app for comprehensive cloud-based surveillance.
