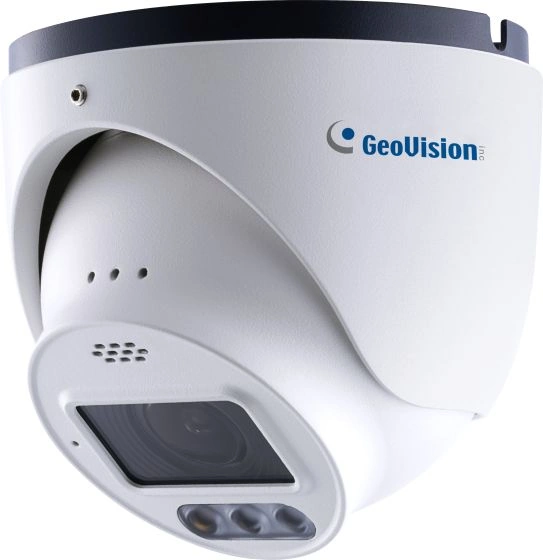

GeoVision - 84-GEBF491-256G - Cloud AI 4MP WDR Pro Eyeball Dome IP Camera, H.265 4.3x Zoom Super Low Lux Full Color Warm LED, 256G Micro SD
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.02 lux
• Up to 30 fps at 2592 x 1520
• Smart Warm LED distance up to 40 m (130 ft)
• Intelligent IR
• IR distance up to 40 m (130 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone and speaker
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP66)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2592 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.02 Lux (F1.4, AGC ON) |
| Shutter Speed | Automatic / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR | WDR Pro |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized |
| Focal Length | 2.8 -12 mm |
| Maximum Aperture | F/1.4 |
| Mount | Ø 14 |
| Horizontal FOV | 96° - 32.33° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 4.3x |
| Iris | DC |
| Active Deterrence LED | 1 red and blue LED |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 40 m (130 ft) |
| Warm LED Quantity | 1 Warm LED |
| Max. Warm LED Light Distance | 40 m (130 ft) |
| DORI | |
| Detect | Wide: 60.0 m (196.8 ft) Tele: 175.7 m (576.4 ft) |
| Observe | Wide: 24.0 m (78.7 ft) Tele: 70.2 m (230.3 ft) |
| Recognize | Wide: 12.0 m (39.3 ft) Tele: 35.1 m (115.1 ft) |
| Identify | Wide: 6.0 m (19.6 ft) Tele: 17.5 m (57.4 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 480 x 240 (60 Hz) |
| 25 fps at 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 567, 640 x 480, 352 x 288, 480 x 240 (50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Maximum Throughput | AI off: 64 Mbps AI on: 18 Mbps (one AI function enabled), 12 Mbps (multiple AI functions enabled) |
| Maximum Streams | 10 *By default, 2 connections are occupied whether connected to GV-Cloud VMS or not. |
| Video Analytics | Motion Detection, Video Exception Detection (Scene Change, Video Blur and Abnormal Color Detection), Object Abandoned/Missing Detection |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Antiflicker, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two-way Audio |
| Digital I/O | Input: 1 input, dry contact, NO/NC |
| Output: 1 relay output (1A 30V DC / 0.3A 125V AC) | |
| Video Resolution | |
| Main Stream | 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720 (Default), 704 x 480, 640 x 480, 352 x 240 |
| Third Stream (Closed by Default) | 704 x 480, 640 x 480, 352 x 240, 480 x 240 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, QoS, ONVIF (Profile G, S, T), API |
| Deep Learning Function | |
| AI Analytics | - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification - Face Detection * A maximum of 1 smart detection function is suggested at a time to ensure comprehensive detection results and the optimized performance by the camera. *Once connected to GV-Cloud VMS / GV-Center V2, up to 1 smart detection function is supported. |
| Video Metadata | People: Gender, Age, Top / Bottom (Type, Color), Accessories (Hat, Bag, Face Mask, Glasses) Vehicle: Type, Color, Brand, Model Non-Motor Vehicle: Type |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 75° Rotate: 0°~ 360° |
| Connectors | Power: DC 12V, PoE (IEEE 802.3af) |
| Ethernet: RJ-45 | |
| Audio: 1 In (built‐in speaker and microphone, or external speaker and microphone with power supply), 1 Out (stereo phone jack, 3.5 mm / 0.14”) *The Audio In port only supports microphones with power supply Digital I/O: 4‐pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. | |
| General | |
| Operation Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V, PoE (IEEE 802.3af) |
| Max. Power Consumption | 12W |
| Dimensions | Ø 111.6 x 99.3 mm (Ø 4.39 x 3.91 in) |
| Weight | 0.64 kg (1.41 lb) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Two‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (V2.2.5 or later), GV-Control Center (V4.1.1 or later), GV-Recording Server (V2.1.0 or later), GV-Cloud VMS, GV-Center V2 (V18.3.0A or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.0.2 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-GEBF491-256G is an advanced 4MP eyeball dome camera featuring a motorized 2.8-12mm varifocal lens with 4.3x optical zoom and F1.4 aperture, delivering 2592x1520 resolution at 30fps, complete with an included 256GB microSD card for edge storage. With a 96° to 32.3° horizontal FOV, dual illuminators - one IR LED and one Warm LED both providing 40m distance - and active deterrence with red/blue LED, it delivers true full-color night vision with exceptional flexibility from wide-area coverage to long-distance surveillance (DORI detection up to 175.7m at telephoto). Super Low Lux technology achieves 0.02 lux color minimum illumination, while WDR Pro (120dB) ensures outstanding image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP66 weatherproof rating and 3-axis mechanical adjustment, it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, it delivers comprehensive AI analytics including line crossing, region intrusion, target counting, heat mapping, face detection, and advanced video metadata with people (gender, age, clothing, accessories) and vehicle (type, color, brand, model) classification. H.265 triple streaming with up to 64 Mbps throughput, two-way audio, digital I/O, and pre-installed 256GB edge storage ensure robust performance. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye for professional cloud-based AI surveillance requiring optical zoom, full-color night vision, and active deterrence.
