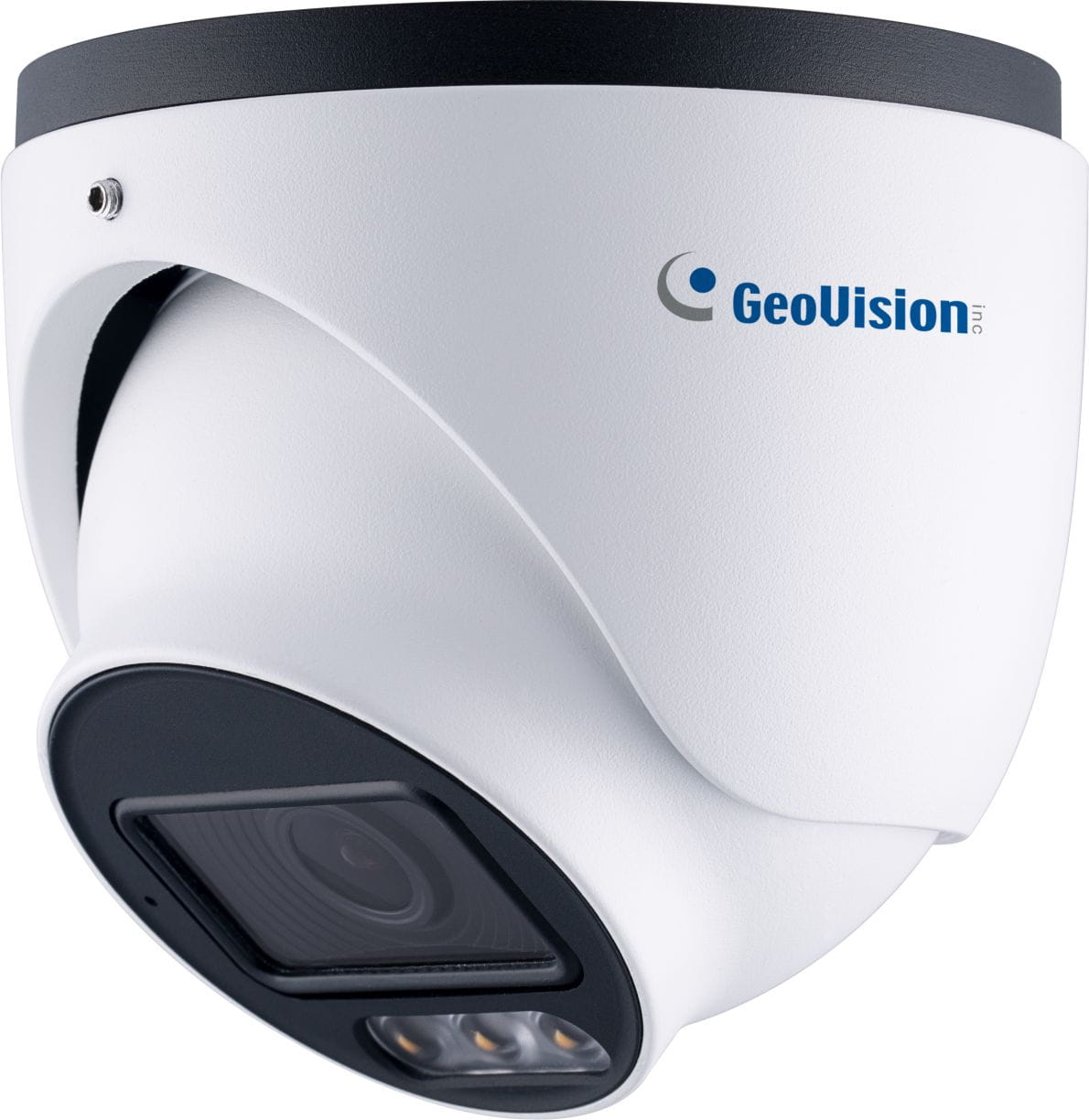

GeoVision - 84-GEBN480-2F10 - AI 4MP H.265 Full Color AI-ISP Warm LED WDR Pro Eyeball Dome IP Camera, 2.8mm
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/1.79" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.0001 lux
• Up to 30 fps at 2688 x 1520
• AI-ISP for superior noise reduction and vivid color images, day and night
• Smart Warm LED distance up to 30 m (100 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/1.79" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.0001 Lux (F1.0, AGC ON) B/W: N/A LED On: 0 Lux |
| Shutter Speed | Automatic / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Model | GV-GEBN4800-2F / GV-GEBN4800-3F |
| Megapixel | 4 MP |
| Day / Night | Color |
| Lens Type | Fixed |
| Focal Length | 2.8 mm (GV-GEBN4800-2F) 3.6 mm (GV-GEBN4800-3F) |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| FOV | 2.8 mm: Horizontal 112°, Vertical 61°, Diagonal 132° 3.6 mm: Horizontal 96°, Vertical 51°, Diagonal 112° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | Fixed |
| Iris | Fixed |
| Warm LED Quantity | 3 Warm LEDs |
| Max. Warm LED Distance | 30 m (100 ft) |
| DORI | |
| Detect | 2.8 mm: 52 m (170.6 ft) 3.6 mm: 63 m (206.6 ft) |
| Observe | 2.8 mm: 21 m (68.8 ft) 3.6 mm: 25 m (82.0 ft) |
| Recognize | 2.8 mm: 10 m (32.8 ft) 3.6 mm: 12 m (39.3 ft) |
| Identify | 2.8 mm: 5 m (16.4 ft) 3.6 mm: 6 m (19.6 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 240 (60 Hz) 25 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 288 (50 Hz) |
| Maximum Throughput | 8 Mbps |
| Maximum stream | 10 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Object Abandoned/Missing Detection, Scene Change, Video Blur Detection, Abnormal Color Detection, Audio Exception |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, Defog, Antiflicker, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 1920 x 1080 |
| Sub Stream | 1280 x 720 (Default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240, 352 x 288 |
| Third Stream | 1280 x 720 (Default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, API, DDNS, DHCP, FTP, HTTP, HTTP POST, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Deep Learning Function | |
| AI Perimeter Protection | Face Event: Face Detection Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting *Face Event and Smart Event can only be enabled one at a time. |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 80° Rotate: 0°~ 360° |
| Connectors | Power: DC Jack Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: Yes (Audio jack, 3.5 mm); Built-in speaker: No; External speaker required: No * For devices with microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. Digital I/O: N/A Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operation Temperature | -30~ 60°C (-22 ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V, 1.5A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6.5 W |
| Dimensions | Ø 111.6 x 99.3 mm (Ø 4.39" x 3.91") |
| Weight | 0.62 kg (1.37 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, One‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | English, Spanish (España), Spanish (LA), Italian, Portuguese, Russian, Polish, Hungarian, Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Korean, Japanese, Traditional Chinese, Ukrainian, Greek |
| Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge Recording Manager for Windows (V2.3.0 or later, patch files required), GV-Recording Server (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.4 or later) |
| Smart Device Access | GV-Eye for iOS (V3.4.1 or later), GV Eye for Android (V3.4.1 or later) |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
The GeoVision 84-GEBN480-2F10 is a revolutionary 4MP eyeball dome camera featuring a large 1/1.79" progressive scan CMOS sensor and cutting-edge AI-ISP technology delivering 2688x1520 resolution at 30fps. Equipped with a 2.8mm fixed lens featuring an exceptional F1.0 ultra-fast aperture and wide 112° horizontal field of view, it captures expansive coverage with unprecedented low-light sensitivity. With AI-ISP achieving an extraordinary 0.0001 lux minimum illumination in color and three Warm LEDs providing 30m full-color night vision, it delivers true color imaging in near-total darkness without infrared. WDR Pro (120dB) and 3DNR ensure exceptional image quality in extreme high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and full 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 60°C. Powered by on-device deep learning, the camera delivers AI Perimeter Protection including face detection, line crossing, region entrance/exit, region intrusion, and target counting (face and smart events enabled one at a time). H.265/H.264 triple streaming with up to 8 Mbps throughput and 10 simultaneous streams optimizes bandwidth efficiency. Video analytics include motion detection, object abandoned/missing detection, scene change, video blur, abnormal color detection, and audio exception. One-way audio with built-in microphone and edge storage up to 512GB via microSD card provide robust functionality. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for professional AI-powered 4MP surveillance requiring extreme low-light full-color performance.
