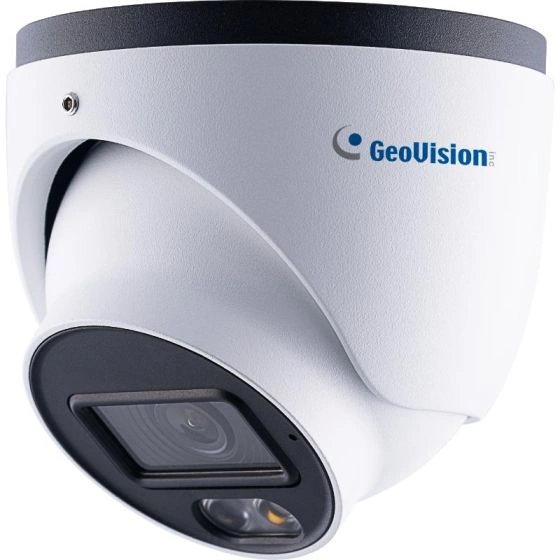

GeoVision - 84-GEF282V-2F10 - 2 MP Network IR Outdoor Dome Camera with 2.8mm Lens
Product Overview
The GV‑GEBF2802 is a 2MP AI‑powered eyeball dome camera with human/vehicle classification, a 1/2.8" CMOS sensor, 2.8mm lens (107° FOV), Smart Warm LED and IR up to 30m, 120dB WDR Pro, H.265 compression, IP67/IK10 protection, and PoE/12V DC power.
Key Configuration
• Resolution: 2MP (1920×1080) at 30fps
• Lens: 2.8mm fixed, F1.6, H:107° / V:56° / D:126°
• Min. illumination: color 0.008 lux, 0 lux with IR on
• IR distance: 30m (1 IR LED); Warm LED distance: 30m (1 LED)
• Power: PoE 802.3af or 12V DC; max 6W
• Storage: microSD/SDHC/SDXC up to 256GB
Key Features
The GV‑GEBF2802 uses deep learning for human/vehicle classification and AI Perimeter Protection (Line Crossing, Region Intrusion). Smart lighting switches between IR for stealth motion detection and Warm LED for full‑color identification of people, vehicles, and motorcycles. WDR Pro (120dB) handles high‑contrast scenes.
Technical Context
The 3‑axis eyeball dome design offers pan 360°, tilt 75°, and rotate 360° for flexible positioning. Measuring Ø94.6 × 82.8 mm and weighing 0.45kg, it is rated IP67 weatherproof and IK10 vandal‑resistant, operating from -30°C to 60°C. DORI ranges are detect up to 41m and identify up to 4m.
Installation Notes
The camera supports triple streams (H.265/H.264/MJPEG), a built‑in microphone with optional external mic via 3.5mm jack, and microSD storage up to 256GB. It is ONVIF Profiles G/S/T/M compliant, powered by 12V DC or PoE 802.3af (6W max), and integrates with GeoVision VMS, GV‑Edge Recording Manager, GV‑Control Center, GV‑Recording Server, and GV‑Eye mobile app. 20 languages are supported.
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) |
| Minimum Illumination - Color | 0.008 Lux (F1.6, AGC ON) |
| Minimum Illumination - IR On | 0 Lux |
| Shutter Speed | Auto / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Model | GV-GEBF2802-2F |
| Megapixel | 2 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| FOV - Horizontal | 107° |
| FOV - Vertical | 56° |
| FOV - Diagonal | 126° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED | |
| Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| Smart Illumination | |
| LED Quantity | 1 Warm LED |
| Max. LED Distance | 30 m (100 ft) |
| DORI | |
| Lens 2.8 mm - Detect | 41 m (134.5 ft) |
| Lens 2.8 mm - Observe | 16 m (52.4 ft) |
| Lens 2.8 mm - Recognize | 8 m (26.2 ft) |
| Lens 2.8 mm - Identify | 4 m (13.1 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264, or MJPEG |
| Video Resolution - Main Stream | 1920 x 1080 (Default), 1280 x 720 |
| Video Resolution - Sub Stream | 704 x 480, 704 x 576, 640 x 480, 640 x 360 (Default), 352 x 240, 352 x 288 |
| Video Resolution - Third Stream | 704 x 480 (Default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | Max. 30 fps (60 Hz) at 1920x1080 / 1280x720 / 704x480 / 640x480 / 352x240 Max. 25 fps (50 Hz) at 1920x1080 / 1280x720 / 704x576 / 640x480 / 352x288 |
| Maximum Throughput | 36 Mbps |
| Maximum Streams | 6 |
| Video Analytics | Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene Change, Video Blur), Object Abandoned/Missing Detection |
| Smart Alarm | Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270° – including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion *The two functions can only be enabled one at a time. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment - Pan | 0 ~ 360° |
| Camera Angle Adjustment - Tilt | 0 ~ 75° |
| Camera Angle Adjustment - Rotate | 0 ~ 360° |
| Connectors | |
| Power | DC jack |
| Ethernet | RJ-45 connector |
| Audio | Built-in microphone: Yes External microphone required: Yes (audio jack, 3.5 mm or 0.14 in) Built-in speaker: No External speaker required: No |
| Local Storage | microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12V, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6 W |
| Dimensions | Ø 94.6 x 82.8 mm (Ø 3.7 x 3.3 in) |
| Weight | 0.45 kg (0.99 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, LVD, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required / V20.0.1 or later), GV-Edge Recording Manager (V2.3.1 or later), GV-Control Center (V4.2.1 or later, patch files required), GV-Recording Server (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.5 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.5.0 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
