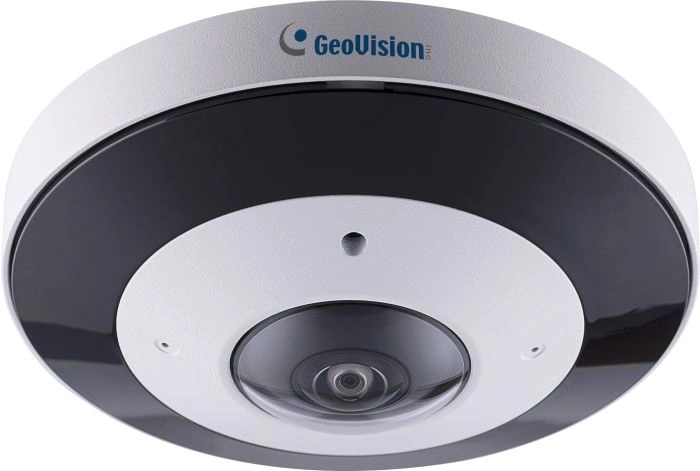

GeoVision - 84-GFER690-1TB - Cloud AI 6MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera, 1.65mm, 1TB Micro SD
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.5" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264, or MJPEG
• Up to 30 fps at 2160 x 2160
• Wide Dynamic Range Pro (WDR Pro)
• Day / Night functionality (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 20 m (66 ft)
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SDHC/SDXC/UHS-I, Class 10) for local storage
• DC 12V / PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Vandal resistance (IK10)
| Camera | |
|---|---|
| Image Sensor | 1/2.5" progressive scan CMOS |
| Picture Elements | 2160 (H) x 2160 (V) | 6 Megapixels |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) |
| B/W: 0 Lux | |
| IR On: 0.1 Lux | |
| Shutter Speed | Auto / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Automatic |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 6 MP |
| Day/Night | Yes (with removable IR‐cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.65 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| Image Format | 1/2.5" |
| Horizontal FOV | 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 20 m (66 ft) |
| DORI | |
| Detect | 33 m (108.2 ft) |
| Observe | 13.1 m (42.9 ft) |
| Recognize | 6.6 m (21.6 ft) |
| Identify | 3.3 m (10.8 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264, or MJPEG |
| Frame Rate | Max. 30 fps (60 Hz) / 25 fps (50 Hz) at 3200 x 1800, 2160 x 2160, 1920 x 1080, 1440 x 1440, 1280 x 720, 1080 x 1080, 960 x 960, 720 x 720, 640 x 640, 640 x 360, 480 x 480, 360 x 360 |
| Max. 20 fps (50 & 60 Hz) at 2560 x 1440 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Maximum Throughput | AI Off: 10 Mbps AI On: 10 Mbps |
| Maximum Streams | 10 |
| Video Analytics | Motion Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection |
| Image Settings | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, Defog, BLC, Antiflicker, Smart IR, Image Orientation (Flip, Mirror, 0°, 180°) |
| Stream Mode & Supported Live Preview | 1: Fisheye - Fisheye View |
| 2: Panoramic View - Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°) | |
| 3: Fisheye + Panoramic View + 3 PTZ - Fisheye View, Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°), Fisheye View + PTZ x 3, Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°) + PTZ x 3 | |
| 4: Fisheye + 4 PTZ - Fisheye View, PTZ x 4 | |
| 5: Fisheye + 4 PTZ Fusion - Fisheye View, 4 PTZ Fusion | |
| Installation Method & Supported Live Preview | Ceiling Mount: Fisheye View, 180°Panoramic View x 2, Fisheye View + PTZ x 3, 180° Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion |
| Wall Mount: Fisheye View, 360°Panoramic View, Fisheye View + PTZ x 3, 360° Panoramic View + PTZ x 3, PTZ x 4, 4 PTZ Fusion | |
| Desktop Mount: Fisheye View, 180°Panoramic View x 2, Fisheye View + PTZ x 3, 180° Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion | |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 input, dry contact, NO / NC |
| Output: 1 relay output (DC 30V, 1A / AC 125V, 0.3A) | |
| Video Resolution Hardware (On-Edge) Dewarping | |
| Main Stream (only in Edge IE mode) | Fisheye View: 2160 x 2160 (default), 1440 x 1440, 1080 x 1080 |
| Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°): 3200 × 1800 (default), 2560 x 1440, 1920 × 1080 | |
| PTZ: 1280 × 720 (default) | |
| 4 PTZ Fusion: 2560 × 1440 (default) | |
| Sub Stream | Fisheye View: 960 × 960 (default), 720 x 720, 480 × 480 |
| Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°): 1280 x 720 (default), 640 x 360 | |
| PTZ: N/A | |
| 4 PTZ Fusion: 640 x 360 (default) | |
| Third Stream | Fisheye View: 640 x 640 (default), 360 x 360 |
| Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°): 1280 x 720 (default), 640 x 360 | |
| PTZ: N/A | |
| 4 PTZ Fusion: 640 x 360 (default) | |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IP, UPnP |
| Deep Learning Function | |
| AI Analytics | Configuration 1 (Human detection only): Modes: 1, 3, 4, 5 Mounting: Ceiling Functions: Target Counting by Line, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Crowd Density, Heat Map |
| Configuration 2 (Human and vehicle detection): Modes: 2, 3 Mounting: Wall or Desktop Functions: Target Counting by Line, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Crowd Density | |
| * A maximum of 1 smart detection event is allowed at a time to ensure comprehensive detection results and the optimized performance by the camera. * Once connected to GV-Cloud VMS / GV-Center V2, up to 1 smart detection event is supported. | |
| Mechanical | |
| Connectors | Power: DC jack, PoE |
| Ethernet: RJ-45 | |
| RS-485: Yes, half-duplex | |
| Audio: Built-in microphone: Yes; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: Yes (audio jack, 3.5 mm or 0.14 in) * Choose either the built-in or external microphone. * The Audio In port only supports microphones with a power supply. | |
| Video Output: CVBS output (BNC connector x 1) | |
| Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14 in) Local Storage: microSD card slot (SDHC/SDXC/UHS-I, Class 10) * UHS-II card type is not supported. | |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V / PoE (IEEE 802.3af) |
| Max. Power Consumption | 10 W |
| Dimension | Ø 130.6 x 46.3 mm (Ø 5.14 x 1.82 in) |
| Weight | 516.2 g (1.14 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Image Quality, Video Recording (only in Edge IE mode), Image Snapshot, Two-Way Audio (only in Edge IE mode), Digital Zoom, Bandwidth Control, Virtual PTZ, Auto Pan, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish |
| Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge Recording Manager for Windows (V2.2.8 or later, patch files required), GV-Recording Server (V2.1.1 or later, patch files required), GV-Center V2 (V18.4.1 or later, patch files required), GV-Cloud VMS (V1.2.1 or later), GV-IP Device Utility (V9.0.2 or later) |
| Smart Device Access | GV-Eye for iOS (V3.1.0 or later), GV Eye for Android (V3.1.1 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-GFER690-1TB is a specialized 6MP fisheye IP camera featuring a 1/2.5" progressive CMOS sensor delivering 2160x2160 resolution at 30fps with a 180° panoramic field of view via its 1.65mm fixed lens, complete with an included 1TB microSD card for maximum edge storage capacity. With Super Low Lux technology achieving 0.01 lux color minimum illumination and four IR LEDs providing 20m night vision, it captures comprehensive 360° coverage in extreme low-light conditions. WDR Pro (120dB), defog, and 3DNR ensure clear imaging across the entire scene. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating, it includes RS-485, CVBS video output, and operates reliably from -30°C to 60°C with DORI detection up to 33m.
Powered by on-device deep learning, it delivers AI analytics including human and vehicle detection with configurable stream modes for ceiling, wall, or desktop mounting. Smart events include line crossing, region intrusion, crowd density, heat mapping, and target counting. Advanced dewarping options provide multiple viewing modes: Fisheye View, Panoramic View (180°x2 or 360°), PTZ x4, and 4 PTZ Fusion for seamless panoramic tracking. H.265 triple streaming, two-way audio, digital I/O, and pre-installed 1TB edge storage ensure robust long-term recording capabilities. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye for professional cloud-based 360° AI surveillance requiring comprehensive coverage and maximum 1TB local storage capacity.
