GeoVision - 84-GLP8900-0010 - 8MP Dual-Lens Panoramic H.265 Super Low Lux WDR Full Color Warm LED IR Bullet IP Camera
Product Overview

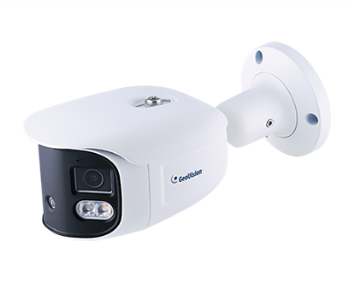

The GV‑GBLP8900 is a cloud‑ready 8 MP dual‑lens panoramic bullet camera that delivers a seamless 180° view through image splicing, making it ideal for wide‑area surveillance. It features H.265 compression for bandwidth efficiency, AI deep learning analytics for accurate detection, full‑color warm LED illumination, and IR night vision for around‑the‑clock monitoring. Direct‑to‑Cloud support enables centralized management and remote access via GV‑Cloud VMS.
Key Configuration
• Camera: 8 MP dual-lens panoramic bullet IP camera with a 180° stitched view.
• Sensor: 1/2.7" progressive scan CMOS, up to 4640 × 1760 resolution.
• Video: Triple-stream support with H.265, H.264, and MJPEG compression.
• Illumination: Smart warm LED up to 20 m (65 ft) and IR up to 30 m (100 ft).
• Power: 12V DC or IEEE 802.3af PoE.
Key Features
Supports Direct‑to‑Cloud connection with GV‑Cloud VMS and offers AI perimeter protection with human and vehicle classification. Its analytics suite includes Line Crossing, Region Entrance/Exiting/Intrusion, Target Counting, Heat Map, Loitering Detection, Illegal Parking Detection, Face Detection, and Video Metadata.
Technical Context
Active deterrence is triggered by AI events, activating alarm sounds and LED lights. Smart lighting switches between IR LED for motion detection and a warm LED for people, vehicle, or motorcycle detection to optimize nighttime image quality.
Installation Notes
The camera features a built‑in microphone and speaker for two‑way audio, a microSD card slot for local storage, and ONVIF Profiles G, S, T, and M compatibility. It is IP67‑rated for outdoor use and supports DC 12V or PoE power. Dual‑lens image splicing delivers a 180° panoramic view with H.265 compression for bandwidth efficiency.
| Camera | |
| Image Sensor | 1/2.7" progressive scan CMOS x 2 |
| Picture Elements | 4640 (H) x 1760 (V) |
| Minimum Illumination | Color: 0.0032 Lux (F1.6, AGC ON); IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR | Yes |
| Dynamic Range | 90 dB |
| Lens | |
| Megapixel | 8 MP |
| Day / Night | Yes, with removable IR-cut filter |
| Focal Length | 2.8 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| FOV | Horizontal: 180°; Vertical: 66°; Diagonal: 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Active Deterrence LED | 1 red and blue LED |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Smart Illumination | 2 warm LEDs, max. warm LED light distance 20 m (65 ft) |
| DORI Distance | 2.8 mm lens: Detect 60 m (196 ft), Observe 24 m (79 ft), Recognize 12 m (39 ft), Identify 6 m (20 ft) |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | |
| Main Stream | 4640 x 1760 (default), 3632 x 1632, 3200 x 1200, 2304 x 864 |
| Sub Stream | 2048 x 768 (default), 1600 x 608, 1200 x 448 |
| Third Stream | 1200 x 448 (default), 960 x 368, 640 x 240 |
| Frame Rate | 30 fps at 4640 x 1760 / 3632 x 1632 / 3200 x 1200 / 2304 x 864 / 2048 x 768 / 1600 x 608 / 1200 x 448 / 960 x 368 / 640 x 240 (60 Hz); 25 fps at the same resolutions (50 Hz). Frame rate and performance may vary depending on the number of connections and data bitrates. |
| Maximum Throughput | 100 Mbps |
| Maximum Streams | 10, when total bitrate is within maximum throughput. By default, 2 connections are occupied whether connected to GV-Cloud VMS or not. |
| Analytics and Events | |
| Video Analytics | Motion Detection, Video Exception (Scene Change, Video Blur, Abnormal Color), Object Abandoned/Missing Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Video Exception, Audio Exception |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain |
| Dual Redundant Images | Yes, for failsafe firmware upgrade |
| Audio Compression | G.711 |
| Audio Support | Two-way audio |
| Digital I/O Input | 1 input, dry contact, NO / NC |
| Digital I/O Output | 1 relay output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection. Smart Events: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata with human and vehicle classification, Loitering Detection, Illegal Parking Detection. Face events and smart events cannot be enabled at the same time. |
| Video Metadata | People: Gender, Age, Top / Bottom type and color, Accessories including Hat, Bag, Face Mask, Glasses. Vehicle: Type, Color, Brand, Model. Non-Motor Vehicle: Type. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X authentication (EAP-TLS, EAP-MD5), DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360°; Tilt: 0 ~ 90°; Rotate: 0 ~ 360° |
| Power Connector | DC jack |
| Ethernet Connector | RJ-45 connector |
| Audio | Built-in microphone: Yes; external microphone required: Yes, audio jack 3.5 mm (0.14 in); built-in speaker: Yes; external speaker required: Yes, audio jack 3.5 mm (0.14 in) |
| Digital I/O | 4-pin terminal block, pitch 3.5 mm (0.14") |
| Local Storage | microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95%, no condensation |
| Power Source | DC 12 V, 1.25 A / PoE (IEEE 802.3af) |
| Max. Power Consumption | DC 12 V: Max. 9 W; PoE: Max. 10.2 W |
| Dimensions | 225.9 x 102.3 x 85.8 mm (8.9 x 4.0 x 3.4 in) |
| Weight | 0.906 kg (2.0 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS V17.4.8 / V18.3.5 / V20.0.2 or later with patch files required, GV-Edge Recording Manager V2.3.1 or later, GV-Control Center V4.3.0 or later, GV-Recording Server V2.1.1 or later, GV-Center V2 V20.1 or later, GV-Cloud VMS V1.5.0 or later, GV-IP Device Utility V9.0.5 or later |
| Smart Device Access | GV-Eye for iOS and Android V3.5.1 or later |
| Live Viewing | Web Browser (Edge, Chrome, Firefox, Safari), Mobile App |
