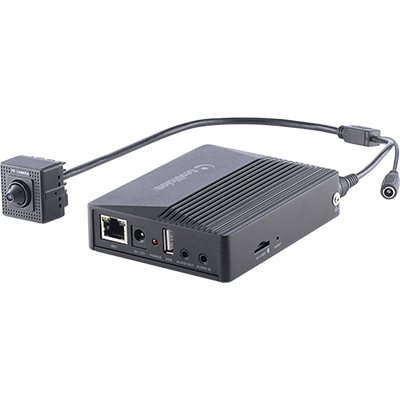

GeoVision - 84-GPH2800-0010 - AI 2MP H.265 Super Low Lux WDR Pro IP Pinhole Camera, 2.8mm
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.8" progressive scan CMOS sensor
• Minimum illumination at 0.05 lux
• Triple streams from H.265, H.264, and MJPEG
• Up to 30 fps at 1920 x 1080
• Day and night function (electronic)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• Eight sensor inputs and four alarm outputs
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) | 2 Megapixels (1080p) |
| Minimum Illumination | Color: 0.05 Lux (F2.2, AGC ON) |
| Gain Control | Automatic |
| S/N Ratio | 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 2 MP |
| Day/Night | Yes (Electronic) |
| Iris | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/2.2 |
| Mount | M12 |
| Image Format | 1/2.8" |
| FOV | Horizontal: 104° |
| Vertical: approx. 59° | |
| Diagonal: approx. 117° | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| DORI | |
| 2.8 mm | Detect: 38 m (124.6 ft) Observe: 15 m (49.2 ft) Recognize: 8 m (26.2 ft) Identify: 4 m (13.1 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 1920 x 1080 (Default), 1280 x 720, 704 x 480 |
| Sub Stream: 1280 x 720 (Default), 704 x 480, 352 × 240 | |
| Third Stream: 704 x 480 (Default), 480 x 240, 352 × 240 | |
| Frame Rate | 60 Hz: 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at 352 x 240, 30 fps at 480 x 240 |
| 50 Hz: 25 fps at 1920 x 1080, 25 fps at 1280 x 720, 25 fps at 704 x 576, 25 fps at 352 x 288, 25 fps at 480 x 240 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Video Exception Detection (Scene Change, Video Blur and Abnormal Color Detection), Object Abandoned/Missing Detection |
| Smart Alarm | Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection |
| Heat Map | On / Off |
| Image Setting | Brightness, Contrast, Saturation, Hue, Sharpness, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°- including Corridor format), WDR, Defog, NR |
| Audio Compression | G.711 |
| Audio Support | Two-way audio capable (external speaker and microphone required) |
| Digital I/O | Input: 8 inputs, dry contact, NO / NC |
| Output: 4 relay outputs (24 V DC / 1A 125 V AC) | |
| Network | |
| Interface | 100 Mbps Ethernet |
| Ethernet Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, QoS, ONVIF |
| Deep Learning Function | |
| AI Analytics | Face Event: Face Detection |
| Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map: Human & Vehicle classification *Face events and smart events cannot be enabled at the same time. | |
| Mechanical | |
| Connectors | Power Main Body Input: PoE (IEEE 802.3af) / DC 12 V; Output: DC 12 V, 0.5 A (Max. 5.5 W) |
| Camera: DC 12 V, 0.5 ~ 1 A (external power supply required) | |
| Ethernet: RJ-45 | |
| Audio: Built-in microphone: No; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: Yes (audio jack, 3.5 mm or 0.14 in) * Choose either the built-in or external option for devices with a microphone or speaker. * The Audio In port only supports microphones with a power supply. | |
| Video Input: BNC connector Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB | |
| General | |
| Environment Temperature | -30 °C ~60 °C (23 °F ~ 122 °F) |
| Humidity | 0% to 95% (no condensation) |
| Power Source | PoE (IEEE 802.3af) / DC 12 V |
| Max. Power Consumption | 5.5 W |
| Dimension | Main Body: 108.5 x 87.8 x 28 mm (4.27" x 3.46" x 1.10") |
| Camera: 31.6 x 30.4 x 30.4 mm (1.24" x 1.20" x 1.20") | |
| Weight (with main body mount) | 323.8 g (0.71 lb) |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Two‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (Windows Version) V2.2.7 or later, GV-Edge Recording Manager (Mac Version) V1.3.0 or later, GV-Control Center V4.1.1 or later, GV-Recording Server V2.1.0 or later |
| Smart Device Access | GV-Eye for iOS / Android (V3.1.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari) |
The GeoVision 84-GPH2800-0010 is a versatile 2MP box IP camera featuring a 1/2.8" progressive scan CMOS sensor delivering 1920x1080 Full HD resolution at 30fps. Designed for flexible installations, it includes a separate 2.8mm fixed lens module (104° horizontal FOV) with F2.2 aperture, allowing remote mounting for discreet surveillance applications. With 0.05 lux color minimum illumination and WDR Pro (120dB), it captures clear footage in challenging lighting conditions. Housed in a compact metal enclosure with an IP66-rated remote camera module, it operates reliably from -30°C to 60°C. Powered by on-device deep learning, it delivers AI analytics, including face detection and smart events with human/vehicle classification for line crossing, region intrusion, target counting, and heat mapping. It features extensive I/O connectivity with 8 inputs and 4 relay outputs, two-way audio, and edge storage up to 256GB. Fully ONVIF compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional AI-powered surveillance requiring flexible camera placement and robust I/O integration.
