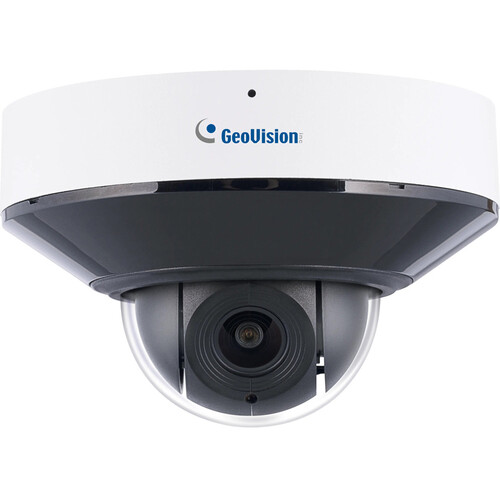

GeoVision - 84-GPTZ481-0010 - AI 4MP H.265 2.3x Zoom Super Low Lux IR IP Mini PTZ Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.02 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2688 x 1520
• Motorized varifocal lens for remote focus / zoom adjustments
• 2.3x optical zoom
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• Built-in microphone
• Two-way audio capable
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• DC 12V, PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) | 4 Megapixels |
| Optical Zoom | 2.3x |
| Minimum Illumination | Color: 0.02 Lux (F1.6, AGC ON) IR ON: 0 Lux |
| Electronic Shutter | Auto / Manual (1/30 ~ 1/30000 sec) |
| White Balance | Auto / Manual |
| AGC control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR | WDR |
| Dynamic Range | 108 dB |
| Optical Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 3.18 ~ 7.42 mm |
| Maximum Aperture | F1.6 |
| FOV | Horizontal: 44.3°~ 113.6° |
| Vertical: 59.6°(W) ~ 24.9°(T) | |
| Diagonal: 137.4°(W) ~ 50.8°(T) | |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 2.3x |
| Iris | Fixed |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| 3.18 mm | Detect: 62.8 m (206.0 ft) Observe: 24.9 m (81.6 ft) Recognize: 12.5 m (41.0 ft) Identify: 6.2 m (20.3 ft) |
| 7.42 mm | Detect: 148.4 m (486.8 ft) Observe: 58.8 m (192.9 ft) Recognize: 29.6 m (97.1 ft) Identify: 14.8 m (48.5 ft) |
| Video | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2688 x 1520 (Default), 2560 x 1440, 2048 × 1536, 1920 x 1080, 1280 x 960, 1280 x 720 (60/50 Hz) |
| Sub Stream: 1280 x 720, 704 x 480, 640 x 480, 640 x 360 (Default), 352 x 240 (60 Hz) / 352 x 288 (50 Hz) | |
| Third Stream: 1920 x 1080, 1280 × 960, 1280 x 720, 704 × 480, 640 × 480, 352 × 240 (Default) (60Hz) / 1920 x 1080, 1280 × 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288 (Default) (50Hz) | |
| Frame Rate | 30 fps at 2688 x 1520, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 640 x 360, 352 × 240 (60 Hz) |
| 25 fps at 2688 x 1520, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 640 x 360, 352 × 288 (50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Maximum Throughput | 80 Mbps |
| Maximum Streams | 10 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Video Exception (Scene Change Detection, Video Blur Detection, Abnormal Color Detection) |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, WDR, Sharpness, BLC, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror) |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Entrance, Region Exiting, Region Intrusion |
| Smart Tracking | Yes |
| Network | |
| Interface | 10/100 Base-TX Ethernet |
| Protocol | 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, ICMP, IPv4/IPv6, NTP, ONVIF (Profile G, S, T), PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP |
| Mechanical | |
| Connectors | Power: DC 12V, PoE (IEEE 802.3af) |
| Ethernet: 10M/100 Base-TX, RJ-45 connector | |
| Audio: Built-in microphone: Yes; External microphone required: Yes (Audio jack, 3.5mm); Built-in speaker: No; External speaker required: Yes (Audio jack, 3.5mm) * For devices with microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. | |
| Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB | |
| Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14”) 1 input (dry contact, NO / NC), 1 relay output (30V DC, 1A / 125V AC, 0.3A) | |
| PTZ Operation | |
| Pan Travel | 0°~ 355° |
| Tilt Travel | 15°~ 90° |
| Manual Speed | Pan: 0.5°~ 80°/s Tilt: 0.5°~ 80°/s |
| Preset Speed | Pan: 80°/s Tilt: 80°/s |
| Preset Max. Number | 360 |
| Cruise Max. Number | 8 |
| Max. Actions Allowed | 16 |
| OSD | 4 |
| Privacy Mask | 4 |
| Automatic Function | Preset, Cruise, Smart Tracking |
| Mechanical Flip | Yes |
| 3D Noise Reduction | 0 ~ 255 |
| Alarm Trigger | Alarm output, Smart Tracking, SD card Snapshot, SD card Recording, E-mail notifications, FTP upload |
| General | |
| Operating Temperature | -30⁰C ~ 60⁰C (-22°F ~ 140°F) |
| Humidity | 0% ~ 90% (non-condensing) |
| Dimensions | Ø 116.14 x 75 mm (Ø 4.57” x 2.95”) |
| Weight | 0.46 kg (1.02 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Power Source | DC 12V, PoE (IEEE 802.3af) |
| Power Consumption | 12 W |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required / V20.0.0 or later), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge Recording Manager Windows Version (V2.2.8 or later), GV-Recording Server / Video Gateway (V2.1.1 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.3.0 or later) |
| Live Viewing | Browser (Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-GPTZ481-0010 is a compact 4MP PTZ camera featuring a motorized 3.18-7.42mm varifocal lens with 2.3x optical zoom and F1.6 aperture, delivering 2688x1520 resolution at 30fps. With a 113.6° to 44.3° horizontal FOV and four IR LEDs providing 20m night vision, it offers flexible coverage with DORI detection up to 148.4m at telephoto. Super Low Lux technology achieves 0.02 lux color minimum illumination, while WDR (108dB) and 52dB S/N ratio ensure clear imaging in challenging conditions. It features 360 presets, 8 cruises, and smart tracking with pan speeds up to 80°/s. Housed in an IK10 vandal-resistant metal casing with IP67 rating, it operates reliably from -30°C to 60°C. Powered by on-device deep learning, it delivers AI analytics including line crossing, region entrance/exit, and region intrusion with smart tracking capabilities. H.265 triple streaming with 80 Mbps throughput, two-way audio, digital I/O, and edge storage up to 256GB ensure robust performance. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional AI-powered PTZ surveillance requiring compact form factor and intelligent auto-tracking.
