GeoVision - 84-GRN4800-2F10 - 4MP H.265 Full Color AI-ISP White LED WDR Pro Mini Fixed Rugged IP Dome
Product Overview

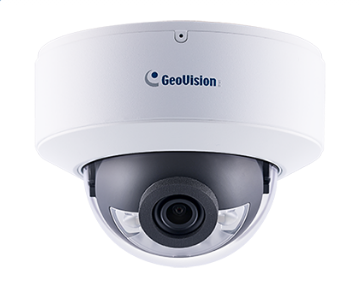

The GV‑GDRN4800 is an AI‑powered 4 MP H.265 mini fixed rugged dome camera designed for outdoor surveillance in demanding environments. It features AI‑ISP image processing for enhanced clarity, smart white LEDs for full‑color nighttime imaging, AI perimeter protection with human and vehicle classification, and rugged IP67 weatherproofing with IK10 vandal resistance for reliable operation in harsh conditions.
Key Configuration
• Camera: 4 MP IP dome camera with a 1/1.79" progressive scan CMOS sensor.
• Lens: Fixed 2.8 mm or 3.6 mm lens options.
• Video: Triple-stream support with H.265, H.264, and MJPEG compression.
• Illumination: Smart white LED up to 20 m (65 ft).
• Power: 12V DC or IEEE 802.3af PoE.
Key Features
The GV‑GDRN4800 delivers up to 30 fps at 2688 × 1520 resolution and uses AI‑ISP technology for enhanced low‑light color imaging, noise reduction, and reduced motion smearing. It also includes WDR Pro, Defog, 3D noise reduction, motion detection, text overlay, and privacy mask for comprehensive image optimization.
Technical Context
The camera supports AI perimeter protection with human and vehicle classification, and triggers smart events including Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, and Face Detection for advanced situational awareness.
Installation Notes
It features a built‑in microphone and microSD card slot for local storage, and is ONVIF Profiles G, S, T, and M compliant. Rated IP67 and IK10, it supports DC 12V or PoE power and includes a 3‑axis pan, tilt, and rotate mechanism for flexible installation. AI‑ISP processing and deep learning analytics ensure reliable performance in demanding outdoor environments.
| Camera | |
| Image Sensor | 1/1.79" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.0001 Lux (F1.0, AGC ON); B/W: N/A; LED On: 0 Lux |
| Shutter Speed | Automatic / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes, supported in the next version |
| Dynamic Range | 120 dB, supported in the next version |
| Lens | |
| Models | GV-GDRN4800-2F, GV-GDRN4800-3F |
| Megapixel | 4 MP |
| Day / Night | Color |
| Lens Type | Fixed |
| Focal Length | 2.8 mm or 3.6 mm |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| FOV | 2.8 mm: Horizontal 112°, Vertical 61°, Diagonal 132°; 3.6 mm: Horizontal 96°, Vertical 51°, Diagonal 112° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | Fixed |
| Iris | Fixed |
| White LED Quantity | 2 white LEDs |
| Max. White LED Distance | 20 m (65 ft) |
| DORI Distance | 2.8 mm: Detect 52 m, Observe 21 m, Recognize 10 m, Identify 5 m; 3.6 mm: Detect 63 m, Observe 25 m, Recognize 12 m, Identify 6 m |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 240 (60 Hz); 25 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 288 (50 Hz). Frame rate and performance may vary depending on the number of connections and data bitrates. |
| Maximum Throughput | 80 Mbps |
| Maximum Streams | 10, when the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene Change, Video Blur), Object Abandoned/Missing Detection |
| Smart Alarm | Audio Exception, Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, Defog, Antiflicker, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°, including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Video Resolution | |
| Main Stream | 2688 x 1520 (default), 2560 x 1440, 1920 x 1080 |
| Sub Stream | 1280 x 720 (default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240, 352 x 288 |
| Third Stream | 1280 x 720 (default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X authentication (EAP-TLS, EAP-MD5), API, DDNS, DHCP, FTP, HTTP, HTTP POST, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Deep Learning Function | |
| AI Perimeter Protection | Face Event: Face Detection; Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, all with Human & Vehicle classification. Face events and smart events cannot be enabled at the same time. |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 355°; Tilt: 0° ~ 70°; Rotate: 0° ~ 180° |
| Power Connector | DC Jack |
| Ethernet Connector | RJ-45 |
| Audio | Built-in microphone: Yes; External microphone required: Yes (3.5 mm audio jack); Built-in speaker: No; External speaker required: No. For devices with microphone or speaker, choose either the built-in or external option. If equipped with an Audio In port, it only supports microphones with power supply. |
| Digital I/O | N/A |
| Local Storage | microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operation Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0% ~ 95%, no condensation |
| Power Source | DC 12V, 1.5A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | Ø 119 x 87.8 mm (Ø 4.7" x 3.46") |
| Weight | 0.64 kg (1.41 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, One-way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Traditional Chinese, Turkish, Ukrainian |
| Applications | |
| Software Supported | GV-VMS V17.4.8 / V18.3.5 / V20.0.2 + Patch or later, GV-Control Center V4.3.0 + Patch or later, GV-Edge Recording Manager for Windows V2.3.1.0 + Patch or later, GV-Recording Server V2.1.1 + Patch or later, GV-IP Device Utility V9.0.5 or later |
| Smart Device Access | GV-Eye for iOS and Android V3.5.1 or later |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
