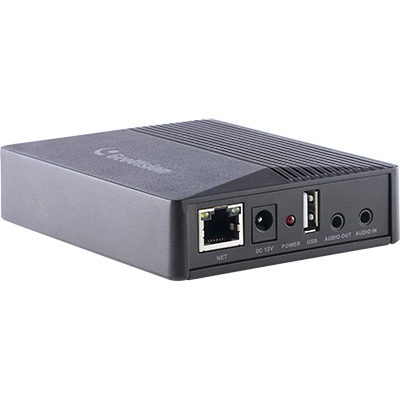

GeoVision - 84-GVS2100-0010 - 1CH H.265 Combo 5MP Video Server
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• Triple streams from H.265, H.264 and MJPEG
• Up to 20 fps at 2592 x 1944
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• 8 sensor inputs and 4 alarm outputs
• DC 12V / PoE (IEEE 802.3af)
• TVI / AHD / CVI / CVBS
• Motion detection
• AI analytics (Object Abandoned / Missing, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Face Detection, Heat Map)
• Privacy mask
• Text overlay
• IP address filtering
• Tampering alarm
• Support UTC (Up-The-Coax) control
• 12 languages supported
• ONVIF (Profile G, S, T) conformant
| Video | |
|---|---|
| Video Standard | NTSC, PAL |
| Video Input | 1 channel |
| Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Signal Type | - TVI / AHD / CVI: 5 MP at 20 fps; 4 MP / 1080p / 720p at 30 fps |
| - CVBS: 960H at 30 fps (NTSC), 25 fps (PAL) | |
| Video Resolution | Main Stream: 2592 x 1944 (Default), 2560 x1440, 1920 x 1080, 1280 x 720, 704 x 480 |
| Sub Stream: 1280 x 720 (Default), 704 x 480, 352 × 240 | |
| Third Stream: 704 x 480 (Default), 480 x 240, 352 × 240 | |
| Frame Rate | - 20 fps at 2592 x 1944, 20 fps at 2560 x1440, 20 fps at 1920 x 1080, 20 fps at 1280 x 720, 20 fps at 704 x 480, 20 fps at 352 x 240, 20 fps at 480 x 240 |
| - 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at 352 x 240, 30 fps at 480 x 240 (60 Hz) | |
| - 25 fps at 1920 x 1080, 25 fps at 1280 x 720, 25 fps at 704 x 480, 25 fps at 352 x 240, 25 fps at 480 x 240 (50 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Video Exception Detection (Scene Change, Video Blur and Abnormal Color Detection), Object Abandoned/Missing Detection |
| Smart Alarm | Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection |
| Heat Map | On / Off |
| Image Setting | Brightness, Contrast, Saturation, Hue, Sharpness, WDR, Noise Reduction, Defog, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°- including Corridor format) |
| Audio | |
| Audio Input | 1 port, 1 channel |
| Compression | G.711 |
| Audio Support | Two-way audio capable (external microphone and speaker required) |
| Management | |
| Firmware Upgrade | Remote upgrade by HTTP, Firmware upgrade utility |
| Local Storage | Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10), max. 256 GB *UHS-II card type is not supported. |
| Security | IP address filtering |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Max Number of Live Streams | 10 |
| Max Number of RTSP Streams | 10 |
| Network | |
| Interface | 100 Mbps Ethernet |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, QoS, ONVIF |
| Deep Learning Function | |
| AI Perimeter Protection | - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map: Human & Vehicle classification - Face Detection |
| External Interface | |
| Video Input | 1 BNC port |
| Audio Input | 1 In (stereo phone jack, 3.5 mm / 0.14’’) |
| Audio Output | 1 Out (stereo phone jack, 3.5 mm / 0.14’’) |
| Sensor Input | Input: 8 inputs, dry contact, NO / NC |
| Output: 4 relay outputs (24 V DC / 1 A 125 V AC) | |
| Ethernet | RJ-45, 100 Mbps |
| USB | 1 port (USB 2.0, not functional) |
| Power | |
| Input | DC 12 V, 1.2 A / PoE (IEEE 802.3af) |
| Output | DC 12 V, 0.5 A (Max. 5.5 W) |
| Environment | |
| Operation Temperature | -30 °C ~60 °C (23 °F ~ 122 °F) |
| Humidity | 0% to 95% (no condensation) |
| Weather Resistance | Indoor use |
| Physical | |
| Dimensions (L x W x H) | 108.5 x 87.8 x 28 mm (4.27" x 3.46" x 1.10") |
| Weight | 271.4 g (0.60 lb) |
| Certification | CE, FCC, RoHS compliant |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (Windows Version) V2.2.7 or later, GV-Edge Recording Manager (Mac Version) V1.3.0 or later, GV-Control Center V4.1.1 or later, GV-Recording Server V2.1.0 or later |
| Smart Device Access | GV-Eye for iOS / Android (V3.1.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari) |
The 84-GVS2100-0010 is a powerful H.265 video server in a compact design that supports TVI/AHD/CVI/CVBS analogue real-time video. It converts analogue signals into high-resolution digital images of up to 5 megapixels. It can record videos onto an inserted micro SD card, functioning as a compact video recorder. Empowered by deep learning algorithms, the AI technology can distinguish between humans and vehicles and other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alerts, event playback and more.
