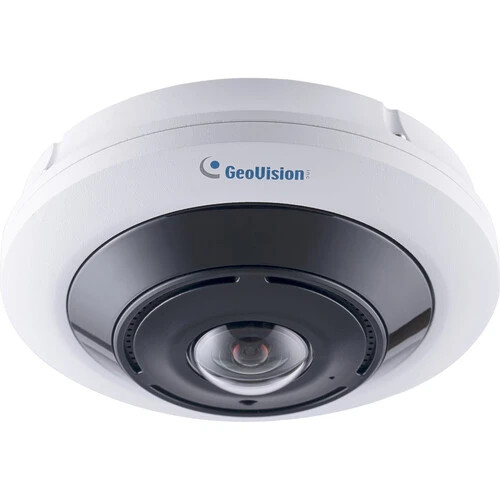

GeoVision - 84-PFER128-0010 - AI 12MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera 1.98mm
• AI deep learning: Smart Perimeter Protection (Humans)
• 1/1.7" progressive scan CMOS sensor
• Min. illumination at 0.05 lux
• Dual streams from H.265, H.264
• Up to 30 fps at 3000 x 3000
• 6 on-edge dewarping modes
• Day and Night function (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 15 m (50 ft)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in microSD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Two-way audio capable
• Built-in microphone
| Camera | |
|---|---|
| Image Sensor | 1/1.7" progressive scan CMOS |
| Picture Elements | 4000 (H) x 3000 (V) |
| Minimum Illumination | Color: 0.05 Lux (F2.8, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000s) |
| White Balance | Auto / Manual |
| S/N Ratio | 55 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Optics Lens | |
| Megapixel | Yes |
| Day/Night | Yes (with removable IR‐cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.98 mm |
| Maximum Aperture | F/2.8 |
| Mount | M12 |
| Image Format | 1/1.7" |
| Horizontal FOV | 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 6 IR LEDs |
| Max. IR Distance | 15 m (50 ft) |
| DORI | |
| Detect | 38.4 m (125.9 ft) |
| Observe | 15.2 m (49.8 ft) |
| Recognize | 7.3 m (23.9 ft) |
| Identify | 3 m (9.8 ft) |
| Operation | |
| Video Compression | H.265, H.264 |
| Video Streaming | Dual streams from H.265 & H.264 |
| Frame Rate | 30 fps at 3000 x 3000, 2560 x 2560, 1920 x 1920, 1280 x 1280, 1280 x 960, 1024 x 1024, 736 x 736, 576 x 576 (60 Hz) 25 fps at 3000 x 3000, 2560 x 2560, 1920 x 1920, 1280 x 1280, 1280 x 960, 1024 x 1024, 736 x 736, 576 x 576 (50 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 100 Mbps |
| Maximum Stream | 10 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tamper Detection, Network Disconnection, Audio Alarm, External Input, Object Left, Object Removed, Heat Map *Tamper detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Heat Map | On / Off |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, WDR, White Balance, Display Mode. |
| Hardware (On-Edge) Dewarping | Ceiling Mount: Fisheye View, 180°Panoramic View, 180° Panoramic View x 2, PTZ x 4, Fisheye View + PTZ x 3, 180°Panoramic View + PTZ x 3 Wall Mount: Fisheye View, 180°Panoramic View, PTZ x 4, Fisheye View + PTZ x 3, 180°Panoramic View + PTZ x 3 Flat Mount: Fisheye View, 180°Panoramic View, 180° Panoramic View x 2, PTZ x 4, Fisheye View + PTZ x 3, 180°Panoramic View + PTZ x 3 |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (External speaker required) |
| Digital I/O | Input: 1 input, dry contact, NO / NC Output: 1 relay output (1A 30V DC / 0.3A 125V AC) |
| Video Resolution | |
| Software Dewarping | Main Stream: 3000 x 3000 (Default), 2560 x 2560, 1920 x 1920, 1280 x 1280 Sub Stream: 1280 x 960, 1024 x 1024, 736 x 736 (Default), 576 x 576 |
| Hardware (On-Edge) Dewarping | Main Stream: Fisheye: 3000 x 3000, 2560 x 2560, 1920 x 1920, 1280 x 1280 180°Panoramic View: 2944 x 736, 2560 x 640, 1920 x 480 180° Panoramic View x 2: 3008 x 1504, 2688 x 1344, 1920 x 960, 1280 x 640 PTZ x 4: 3840 x 2176, 3072 x 1728 Fisheye View + PTZ x 3: 3840 x 2176, 3072 x 1728 180°Panoramic View + PTZ x 3: 3840 x 2176, 3072 x 1728 Sub Stream: Fisheye: 1280 x 960, 1024 x 1024, 736 x 736, 576 x 576 180°Panoramic View: 1920 x 480, 1280 x 320, 1024 x 256 180° Panoramic View x 2: 1280 x 640, 704 x 352, 640 x 320 PTZ x 4: 1920 x 1088, 1280 x 720 Fisheye View+ PTZ x 3: 1920 x 1088, 1280 x 720 180°Panoramic View + PTZ x 3: 1920 x 1088, 1280 x 720 |
| Network | |
| Interface | 10/100/1000 Ethernet |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, ONVIF (Profile G, Q, S, T) |
| Deep Learning Function | |
| AI Analytics | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, People Counting *Vehicle recognition is currently not applicable. |
| Mechanical | |
| Connectors | Power: DC Jack Ethernet: RJ-45 Audio: 1 in (Built-in or external microphone), 1 out (4-pin terminal block pitch 3.5 mm (0.14”)) *The Audio In port only supports microphones with power supply. Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
| General | |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Humidity | 0% ~ 90% (no condensation) |
| Power Source | 12V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 11 W |
| Dimensions | Ø 140 x 45.4 mm (Ø 5.5" x 1.8") |
| Weight | 700 g (1.54 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Language | Arabic, Bulgarian, Chinese Traditional, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Persian, Polish, Portuguese, Russian, Slovenian, Spanish, Thai, Turkish |
| Applications | |
| Software Supported | GV-VMS (V17.4.7 / V18.3.2, patch files required), GV-Edge Recording Manager (V2.2.7), GV-Control Center (V4.2.0), GV-Recording Server (V2.1.0) |
| Smart Device Access | GV-Eye for iOS and Android (V3.1.0) |
| Live Viewing | Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari) |
The GeoVision 84-PFER128-0010 is a high-resolution 12MP fisheye IP camera featuring a large 1/1.7" progressive CMOS sensor delivering 4000x3000 resolution (12MP) with true 180° panoramic field of view via its 1.98mm fixed lens (F2.8). With Super Low Lux technology achieving 0.05 lux minimum illumination in color and six IR LEDs providing 15m night vision, it captures exceptional 360° coverage in extreme low-light conditions. WDR Pro (120dB), 55dB S/N ratio, and 3DNR ensure crystal-clear imaging across the entire scene. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating, it operates reliably from -40°C to 60°C with 100 Mbps throughput and Gigabit Ethernet connectivity. Powered by on-device deep learning, the camera delivers AI analytics including region entrance/exit, advanced motion detection, line crossing, loitering detection, and people counting. Advanced hardware (on-edge) dewarping provides multiple viewing modes for ceiling, wall, and flat mounting including Fisheye View, 180° Panoramic View (single/dual), PTZ x4, and hybrid Fisheye+PTZ configurations. H.265/H.264 dual streaming with up to 10 simultaneous streams, two-way audio, digital I/O, and edge storage via microSD card ensure robust functionality. Fully ONVIF Profile G/Q/S/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for comprehensive 360° AI-powered surveillance.
