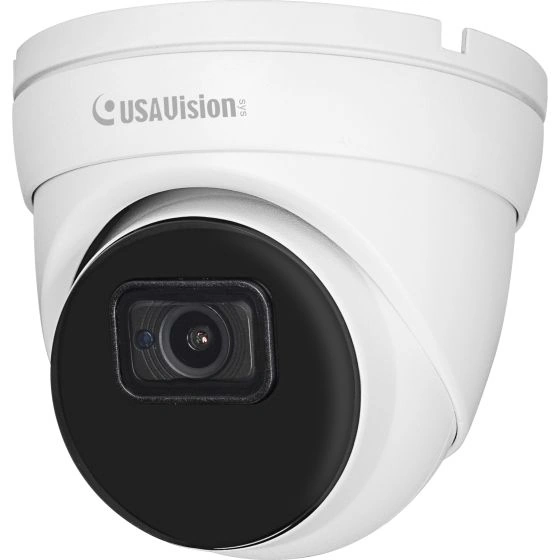

GeoVision - 84-R800F20-UA00 - 8MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera 2.8mm
• High-quality imaging with progressive scan CMOS
• Triple streams from H.265, H.264
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Built-in micro SD card slot, up to 256 GB
• Ingress protection (IP66)
• DC 12V / PoE (IEEE 802.3af)
• P2P function for GV-Eye app
• ONVIF conformant
• Intelligent analytics: Human, Vehicle, Face Detection
| Video | |
|---|---|
| Imaging Device | 1/2.7" |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.002 Lux at F1.2 (AGC On) |
| B/W: 0 Lux | |
| IR On: 0 Lux | |
| Lens Type | |
| Lens Type | Fixed |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Field of View | Horizontal: 110°, Vertical: 58°, Diagonal: 132° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Day and Night | IR cut filter with auto switch (Day / Night / Auto / Image / Schedule) |
| Backlight Compensation | Off / on (5 zones) |
| S/N Ratio | 36 dB |
| WDR Pro | Yes |
| Dynamic Range | Up to 120 dB |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off / on (8 levels) |
| Privacy Masking | Off / on (4 zones) |
| Gain Control | Auto |
| White Balance | Auto / Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000 s |
| Flip / Mirror | Flip / Rotation |
| AI Analytics | Line Crossing Detection / Perimeter Intrusion Detection / Stationary Object Detection / Human & Vehicle Detection / Cross Counting / Queue Length Detection / Crowd Density Detection / Heat Map Statistics / Face Detection / Rare Sound Detection |
| Image Setting | Hue, Bright, Contrast, Saturation, Sharpness, IR-CUT Mode, IR-CUT Delay, IR-LED, Low Beam Light, Angle Trad, Mirror, Backlight, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Hardware Reset | Yes |
| Network | |
| Ethernet | RJ45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 |
| Resolution | Main Stream 8 MP: 3840 x 2160 (Default) 5 MP: 3072 x 1728 / 2592 x 1944 4 MP: 2592 x 1520 3 MP: 2304 x 1296 1080P: 1920 x 1080 960P: 1280 x 960 720P: 1280 x 720 |
| Sub Stream 720P: 1280 x 720 (Default) VGA: 640 x 480 QVGA: 320 x 240 | |
| Mobile Stream VGA: 640 x 480 (Default) QVGA: 320 x 240 | |
| Max. Frame Rate | 50 Hz: 25 fps at 8 MP / 5 MP / 4 MP / 3 MP / 2 MP / 960P / 720P / VGA / QVGA 60 Hz: 30 fps at 8 MP / 5 MP / 4 MP / 3 MP / 2 MP / 960P / 720P / VGA / QVGA |
| Video Quality Adjustment | 256 Kbps ~ 10 Mbps |
| Bitrate Control Method | CBR / VBR |
| Streaming Capability | Triple-Stream (Main / Sub / Mobile) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | -IP address filter |
| -Complicated password | |
| -Authenticated username and password | |
| Streaming Method | Unicast / Multicast |
| Max. User Account | Max 7 (Admin + 6 Users) |
| Application Programming Interface | ONVIF (Profile S / G / T) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° |
| Tilt: 0° ~ 80° | |
| Rotate: 0° ~ 360° | |
| Connector | Power: DC Jack |
| Ethernet: Ethernet (10/100 Base-T), RJ45 cable | |
| Audio: 1 in (built-in microphone) Local Storage: Micro SD card slot, up to 256GB (SD / SDHC / SDXC) *Class 10, UHS‐I, UHS‐II card type is not supported. | |
| General | |
| Operating Temperature / Humidity | -30 ~ 55°C (‐22°F ~ 131°F) / less than ≤ 95% RH |
| Storage Temperature / Humidity | -30 ~ 60°C (‐22°F ~ 140°F) / less than ≤ 95% RH |
| Power Source | 12V DC, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 5.5 W |
| Color / Material | White / Metal |
| Dimensions (Ø x H) | Ø 100 x 90 mm (Ø 3.9" x 3.5") |
| Weight | 420 g (0.93 lb) |
| Ingress Protection | IP66 |
| Certification | FCC and RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Change Stream, AI Alarm Play, Color, Stop, Original Proportions, Stretch, Full Screen, Record, Capture, Digital Zoom, Audio, Pixel Counter |
| Language | English / German / Spanish / French / Japanese / Italian / Portuguese / Russian / Turkish |
| Application | |
| Software Supported | GV-VMS (V18.3.1 / 17.4.5 *3rd-party license required for SW connection) GV-Control Center (V4.1.0) GV-Recording Server (V2.1.0 *3rd-party license required for SW connection) GV-Edge Recording Manager Windows Version (V2.2.0) |
| Smart Device Access | GV-Eye for iOS and Android (V2.9.1) |
| Live Viewing | IE10 / 11 Safari V12.1 or later Firefox V52 or later Google chrome V57 or later Edge V79 or later |
The GeoVision 84-R800F20-UA00 is a high-resolution 8MP (4K) IP eyeball dome camera featuring a 1/2.7" progressive CMOS sensor delivering 3840x2160 Ultra HD resolution at 25/30fps. Equipped with a 2.8mm fixed lens providing an ultra-wide 110° horizontal FOV at F1.6 aperture, it captures expansive 4K coverage ideal for comprehensive surveillance applications. With Super Low Lux technology achieving 0.002 lux color minimum illumination and dual IR LEDs providing 30m night vision, it delivers exceptional low-light performance. WDR Pro (120dB) and 3D DNR ensure outstanding image quality in high-contrast scenes. Housed in an IP66-rated metal casing with 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 55°C. Powered by on-device AI analytics, it delivers comprehensive detection including line crossing, perimeter intrusion, stationary object, human/vehicle classification, cross counting, queue length, crowd density, heat mapping, face detection, and rare sound detection. H.265 triple streaming with up to 10 Mbps bitrate and edge storage up to 256GB via microSD ensures robust performance. Fully ONVIF Profile S/G/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye for professional 4K IP surveillance requiring ultra-wide coverage and exceptional low-light sensitivity in a compact eyeball dome form factor.
