GeoVision - 84-SNR162W-001U - 16CH 4K Standalone 2 Bay SNVR

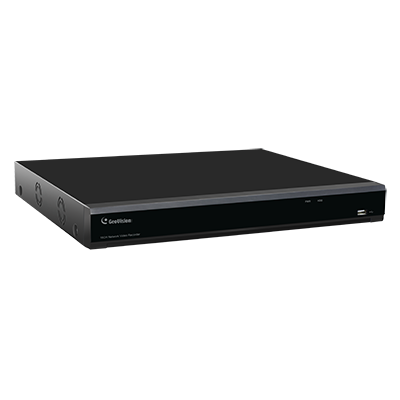

GV-SNVR1612 is a standalone network video recorder with Linux embedded that records video files directly to the internal hard drive and supports up to 16 IP camera channels for video surveillance. GV-SNVR1612 has built in 16 PoE (IEEE 802.3af) ports that simultaneously provide network and power to IP cameras. Thanks to its up to 4K resolution video output, GV-SNVR1612 eliminates the need of a separate PC to view and play back video from the unit. It has USB ports that can be used to import or export system settings, update firmware, store snapshot files and back up videos.
Features:
- 16-channel video recording
- Up to 3840 x 2160 resolution for each channel
- Dual streams support
- 16-Port PoE (IEEE 802.3af) for camera connection
- 4K HDMI / 1080p VGA video output
- 2 SATA HDD drawers (3.5") for up to 20 TB storage
- Two‐way audio
- 8 sensor inputs and 1 alarm output
- Automatic search and set-up for IP cameras
- Support for third‐party IP cameras through ONVIF and RTSP protocol
- Continuous, motion, scheduled and alarm-triggered recording
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notifications for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- Support for GV-Video Server through RTSP protocol
- PTZ control using GV-Joystick V2 or on-screen panel
- Smart device access (iOS and Android)
- Support for 14 languages
Note:
- GV-SNVR1612 only supports PoE (IEEE 802.3af). If your camera requires power supply above 10W, be sure to power your camera with the compatible PoE switch or its power adapter.
- Fisheye dewarping is currently not supported by GV-SNVR1612.
- For backup efficiency, it is recommended to use the external hard drive to back up your recordings.
- Product design and specifications are subject to change without notice.
| System | ||||||
| OS | Embedded Linux | |||||
| No. of Drive Bay | 2 (3.5" HDD), up to 20 TB | |||||
| Power Source | Input: AC 100 ~ 240V, 50 ~ 60 Hz Output: DC 48V, 3.75A, Max. 180W PoE: Max. 120W | |||||

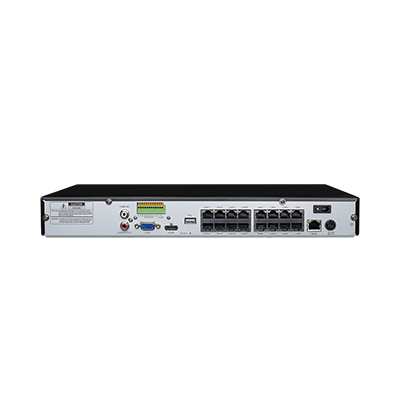

| Connectors | Megabit Ethernet | 1 port for WAN, RJ-45 10/100/1000 Mbps, 16 ports for LAN, RJ-45 10/100 Mbps, PoE (IEEE 802.3af) | ||||
| Video Output | HDMI / VGA | |||||
| Audio | RCA | |||||
| USB | Front: USB 2.0 x 1 Port, Rear: USB 2.0 x 1 Port | |||||
| I/O | 8 Inputs, 1 Output | |||||
| LED Indicator | NVR | 2 LEDs: Power, HDD Fail | ||||
| PoE | N/A | |||||
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) | |||||
| Humidity | 0% ~ 90% RH (non-condensing) | |||||
| Dimensions (L x W x H) | 380 x 340 x 50 mm (15 x 13.4 x 2”) | |||||
| Net Weight | 2.48 kg (5.47 lb) | |||||
| Regulatory | FCC, CE, PSE, LVD, RoHS compliant | |||||
| Video and Audio | ||||||
| Video Compression | H.264, H.265 | |||||
| Video Stream | Dual streams from H.264, H265 | |||||
| Video Output | 4K (HDMI), 1080p (HDMI/VGA) | |||||
| Display Divisions | 1 / 4 / 6 / 8 / 9 / 16 | |||||
| Audio Compression | G.711 | |||||
| Audio Support | Yes | |||||
| Two-Way Audio | Yes | |||||
| Decoding | ||||||
| Frame Rate | 8 MP for 1 division, up to 20 fps/CH 2 MP for 4 divisions, up to 30 fps/CH, 120 fps in total 720P for 8 divisions, up to 30 fps/CH, 240 fps in total VGA for 16 divisions, up to 30 fps/CH, 480 fps in total | |||||
| Playback | Max. 16-ch playback | |||||
| Supported Video Resolution | Main Stream | Sub Stream | ||||
| Firmware Version | V1.00 | |||||
| 4:3 | 2592 x 1944 | 1280 x 1200, 1024 x 768, 960 x 720, 640 x 480, 320 x 240 | ||||
| 2560 x 1920 | ||||||
| 2048 x 1536 | ||||||
| 1600 x 1200 | ||||||
| 1280 x 960 | ||||||
| 640 x 480 | ||||||
| 16 : 9 (Default) | 3840 x 2160 | 1280 x 720, 640 x 360, 448 x 256 | ||||
| 2592 x 1520 | ||||||
| 2560 x 1440 | ||||||
| 2304 x 1296 | ||||||
| 1920 x 1080 | ||||||
| 1280 x 720 | ||||||
| 640 x 360 | ||||||
| 5:4 | 1280 x 1024 | 1280 x 1024, 640 x 512, 320 x 256 | ||||
| 640 x 512 | ||||||
20:19 (Fisheye Camera Only) See Note 2 | 2896 x 2768 | 960 x 912, 640 x 608 | ||||
| 2176 x 2048 | ||||||
| 2048 x 1944 | ||||||
| 1792 x 1696 | ||||||
| 1440 x 1376 | ||||||
| Operation | ||||||
| Recording Bandwidth | Max. 96 Mbps / 6 Mbps for each channel (main stream + sub stream) | |||||
| Recording Mode | Round the clock, Motion Detection, Schedule Recording, Alarm-triggered Recording | |||||
| Pre Recording | 1 ~ 5 sec | |||||
| Post Recording | 30 sec | |||||
| Instant Playback | 3 min | |||||
| Backup Type | USB flash drive of FAT32 format | |||||
| Management | ||||||
| Language | Czech, English, Finnish, French, German, Hungarian, Italian, Japanese, Portuguese, Russian, Slovakian, Slovenian, Spanish, Traditional Chinese | |||||
| Firmware upgrade | Upgrade through OSD, Web or GV-IP Device Utility | |||||
| Network | ||||||
| Network Type | LAN, WAN, Internet | |||||
| Protocol | DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP | |||||
| System Monitoring and Recovery | ||||||
| Power Restoration | Automatic restart after power outage | |||||
| Monitoring | Software Watchdog | |||||
| Remote Monitoring | ||||||
| Live View | Max. 34 channels connection | |||||
| Playback | PC-Based Software | Max. 16 channels connection | ||||
| Mobile App | Max. 1 channel connection *Up to 1 PC-based software or Mobile App can be connected to GV-SNVR for remote playback at a time. | |||||
| Monitoring Environment | IE browser, SNVR Viewer for non-IE browsers, Mobile app | |||||
| Smart Device Access | GV-Eye for iOS and Android | |||||
