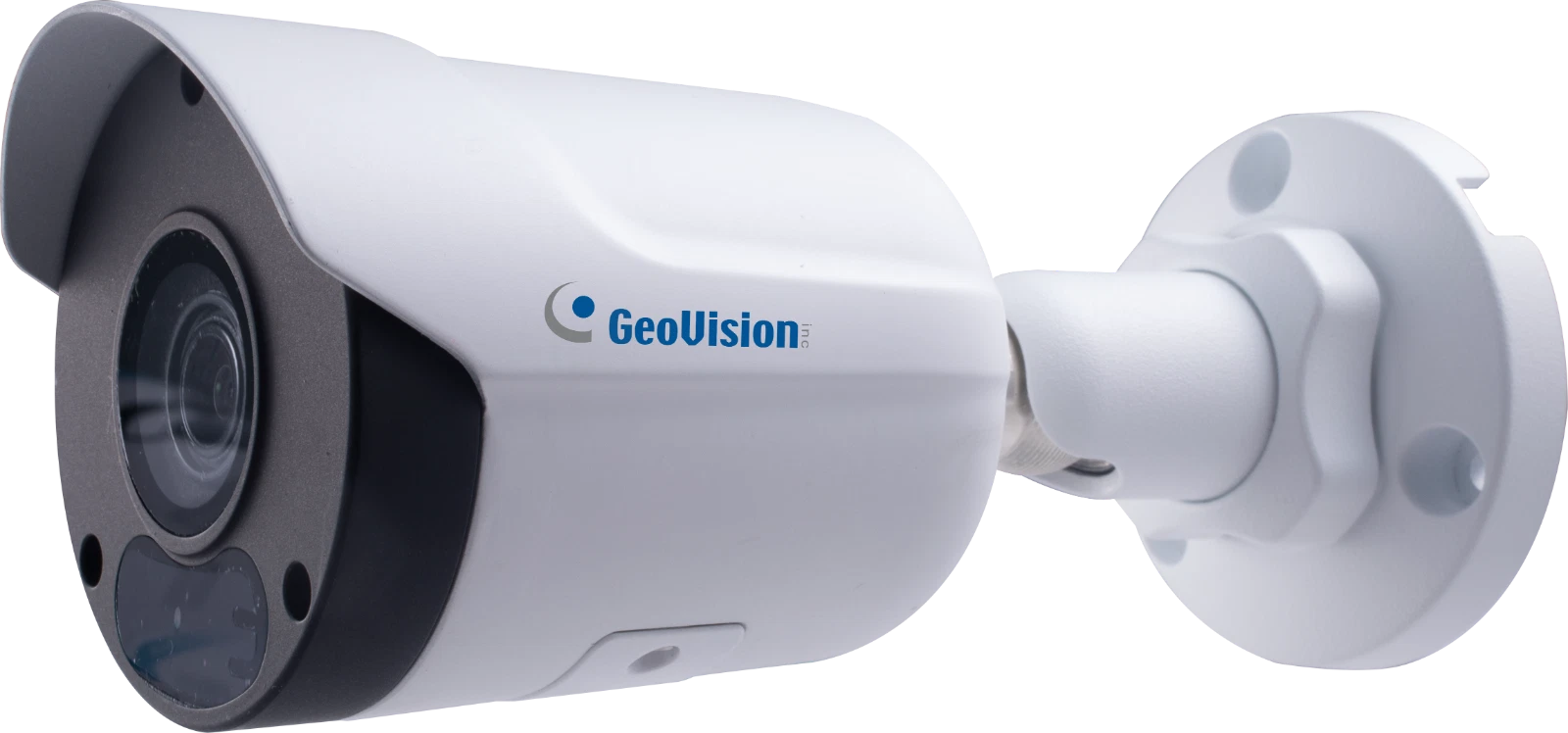

GeoVision - 84-TBL2706-4F10 - 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera 4mm
• 1/2.7" progressive scan low lux CMOS sensor
• Min. illumination at 0.01 lux
• Dual streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Up to 30 fps at 1920 × 1080
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Day and Night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
• DC 12V / PoE (IEEE 802.3af)
• Defog
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• ONVIF (Profile G, S, T) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS Sensor |
| Image Elements | 1920 (H) x 1080 (V) | 2 Megapixels (1080p) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic / Manual (1 ~ 1/100,000 sec) |
| White Balance | Automatic / Manual |
| Gain Control | Automatic / Manual |
| Signal-to-Noise Ratio (S/N) | up to 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 2 MP |
| Day/Night Function | Yes (with removable IR filter) |
| Lens Type | Fixed |
| Focal Length | 4 mm |
| Maximum Aperture | F/2.0 |
| Mounting | Ø 12 mm |
| FOV | Horizontal: 91.2° Vertical: 47.9° Diagonal: 95.9° |
| Operation | |
| Focus | Fixed |
| Zoom | |
| Iris | Fixed |
| Number of IR LEDs | 1 IR LED |
| Maximum IR Distance | 30 m |
| DORI | |
| Detect | 60 m |
| Observe | 24 m |
| Recognize | 12 m |
| Identify | 6 m |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Transmission | Dual stream in H.265, H.264 or MJPEG |
| Video Resolution | First Stream: 1920 x 1080 (Default), 1280 x 720 Second Stream: 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default) |
| Frame Rate | 30 fps at 1920 x 1080 (60/50 Hz) * Frame rate and performance may vary depending on the number of connections and bit rates (depending on the scene). |
| Maximum Transfer | 50 Mbps |
| Maximum Stream Transmission | 6 *Provided that the total bit rate is within the maximum stream |
| Video Analytics | Motion Detection, Tamper Alarm, Audio Detection, Line Crossing, Intrusion *Tamper Alarm, Audio Detection, Line Crossing and Intrusion are only accessible through the camera's web interface, and can be used to trigger alerts such as email and FTP. |
| Image Settings | Brightness, Saturation, Contrast, Sharpness, Flicker Free, Image Orientation (Invert, Mirror, 0°, 90°, 180°, 270° - including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Audio Unidirectional |
| Network | |
| Interface | 10/100 Ethernet |
| Protocols | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment | Panoramic: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
| Connectors | Power: DC Jack, PoE Network: RJ-45 Connector Audio: Integrated Microphone: Yes; External Microphone Required: No; Integrated Speaker: No; External Speaker Required: No Local Storage: microSD card slot (SD/SDHC/SDXC), supports up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C |
| Humidity | 0% ~ 95% (non-condensing) |
| Power Supply | 1.25A 12V DC / PoE (IEEE802.3af) |
| Maximum Power Consumption | 7.0 W |
| Dimensions | 161.9 × 68.7 × 68.5 mm |
| Weight | 0.39 kg |
| Protection Rating | IP67 |
| Certifications | FCC, CE, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Configuration via Web Browser |
| Maintenance | Firmware update via web browser or GV-IP Device utility |
| Web Browser Access | Live View, Video Recording, Video Quality Change, Bandwidth Control, Image Capture, Fog Removal, Text Overlay, Image Masking |
| Languages | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Applications | |
| Compatible Software | GV-VMS (V17.4.7 / V18.3.2 or higher), GV-Control Center (V4.2.1, coming soon), GV-Recording Server / Video Gateway (V2.1.1 or higher), GV-Edge Recording Manager Windows Version (V2.2.7 or higher) |
| Mobile Device Access | GV-Eye for iOS / Android (V3.1.1 or higher) |
| Live View | Browsers (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TBL2706-4F10 is a 2MP bullet camera featuring a 4mm fixed lens with 91.2° FOV, delivering 1920x1080 resolution at 30fps. With 0.01 lux color minimum illumination, IR night vision up to 30m, and WDR Pro (120dB), it captures clear footage in low-light and high-contrast conditions. Housed in an IP67-rated weatherproof casing with 3-axis adjustment, it operates from -30°C to 60°C with DORI detection up to 60m. It supports dual-stream H.265 compression with edge storage up to 512GB. Video analytics include motion detection, line crossing, and intrusion. Fully ONVIF compliant, it integrates with GV-VMS and GV-Eye for reliable 2MP surveillance.
