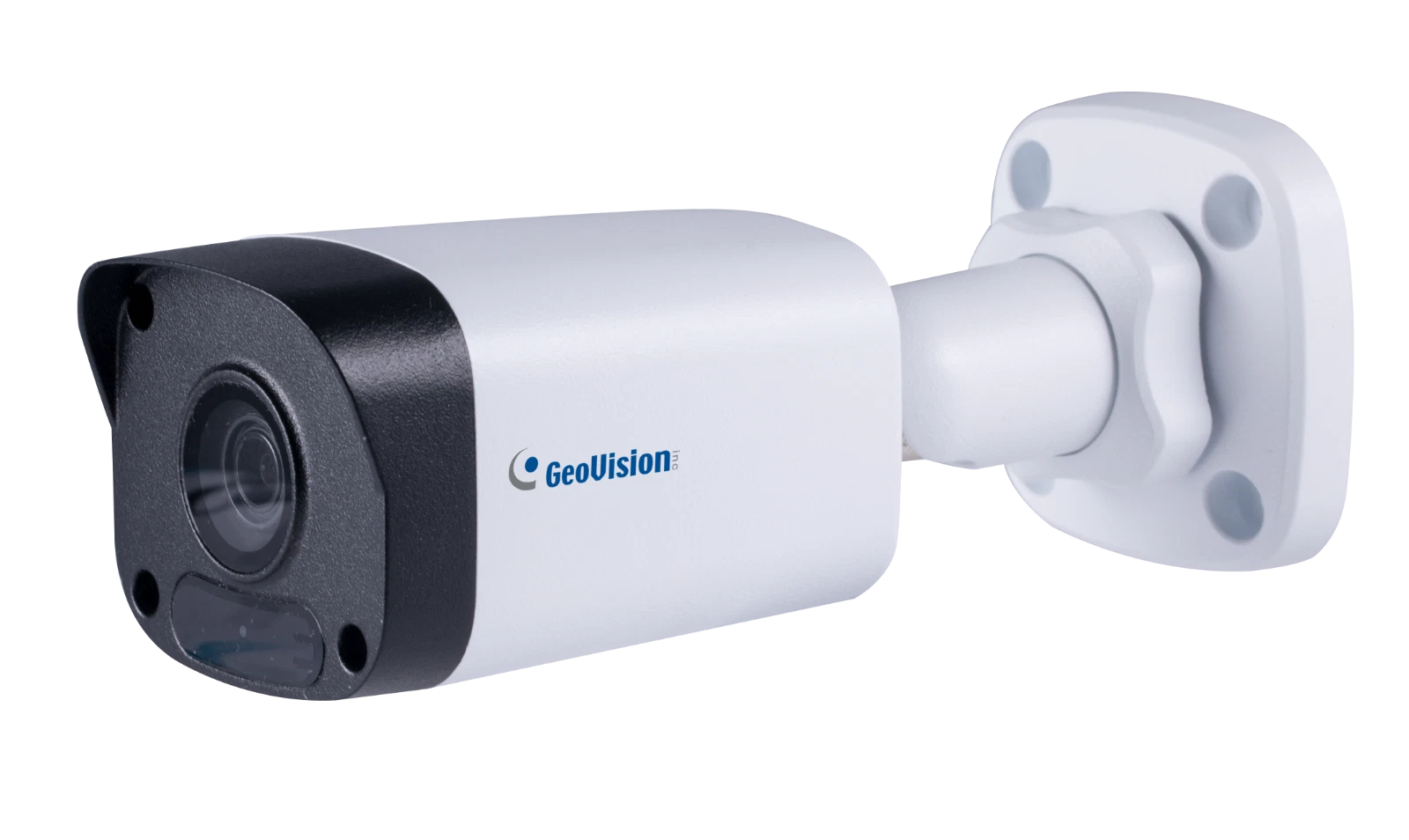

GeoVision - 84-TBL4700-0010 - 4MP H.265 Super Low Lux WDR IR Bullet IP Camera
• 1/3" progressive scan super low lux CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 20 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Day and night function (with removable IR-cut filter)
• Vandal Resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2592 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.01 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1/25 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR | Yes |
| Dynamic Range | Up to 72 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Varifocal lens |
| Focal Length | 2.8 ~ 12 mm |
| Maximum Aperture | F/1.6 |
| Mount | Ø 14 mm |
| Horizontal FOV | 96°~ 32° |
| Focus | Manual (w/ lock) |
| Zoom | Manual (w/ lock) |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate | 20 fps at 2592 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 40 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Intrusion, Human Body Detection |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°), Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog |
| Video Resolution | |
| Main Stream | 2592 x 1520 (Default), 2048 x 1520, 1920 x 1080 |
| Sub Stream | 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 120° Rotate: 0 ~ 360° |
| Connectors | Power: DC Jack (DC 12V, 1A), PoE (IEEE802.3af) Ethernet: RJ-45 Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -35 ~ 60°C (-31 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | 244 × 96 ×74 mm (9.6" × 3.8" × 2.9") |
| Weight | 1 kg (2.2 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Italian, Russian, Traditional Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0), GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software. |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Safari, Firefox), Mobile App |
The GeoVision 84-TBL4700-0010 is a 4MP bullet camera featuring a manual varifocal 2.8-12mm lens with 96° to 32° horizontal FOV, delivering 2592x1520 resolution at 20fps. With 0.01 lux color minimum illumination, dual IR LEDs for 30m night vision, and WDR (72dB), it captures clear footage in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 rating and full 3-axis adjustment, it operates from -35°C to 60°C. It supports H.265 triple streaming with motion detection, tampering alarm, intrusion detection, and human body detection. Edge storage via microSD card ensures reliable recording. Fully ONVIF compliant, it integrates with GV-VMS and GV-Eye for professional 4MP surveillance requiring manual zoom flexibility.
