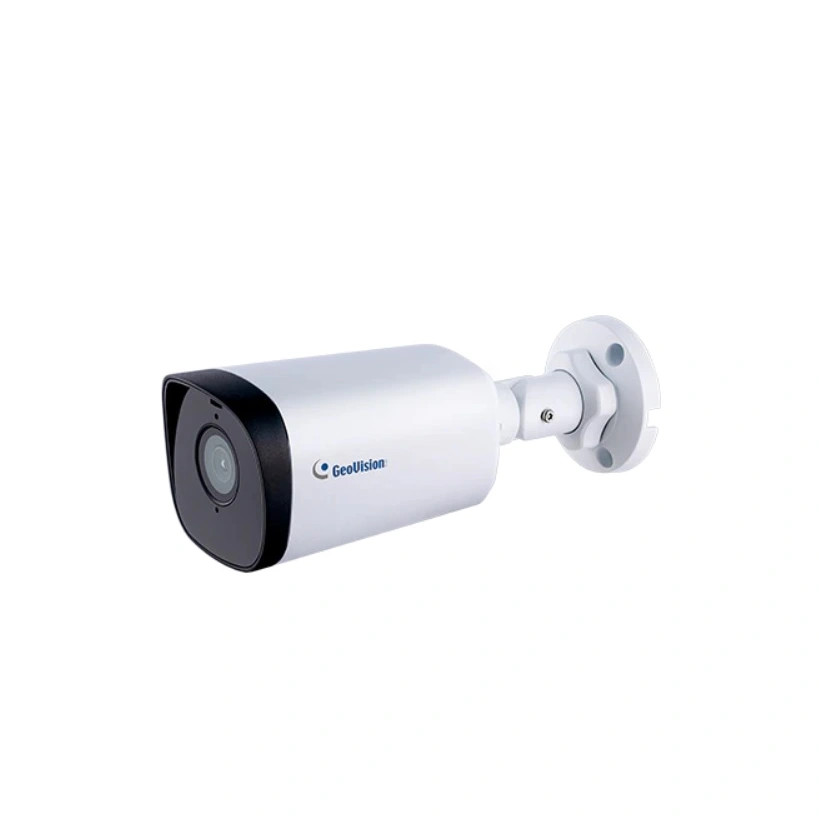

GeoVision - 84-TBL4807-0010 - AI 4MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7” progressive scan CMOS
• Min. illumination at 0.002 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• IR distance up to 80 m (260 ft)
• Day and Night function (with removable IR-cut filter)
• Ingress protection (IP67)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.002 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 6 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| FOV | Horizontal: 52.1° Vertical: 28.0° Diagonal: 59.2° |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 80 m (260 ft) |
| DORI | |
| Detect | 135 m (442.9 ft) |
| Observe | 54 m (177.2 ft) |
| Recognize | 27 m (88.6 ft) |
| Identify | 13.5 m (44.3 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720, 720 x 576, 640 x 360 (Default), 640 x 480 Third Stream (Closed by Default): 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 (50/60 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 40 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Audio Alarm, Tamper Detection. *Tampering detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 90°, 180°-including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One‐way Audio (built-in microphone) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: 2 In (built‐in microphone x 2) Digital I/O: I/O wires Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 1.25A 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | 206 × 74 × 74 mm (8.1" × 2.9" × 2.9") |
| Weight | 0.51 kg (1.12 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV‐VMS (V17.4.7 with patch / V18.3.2 with patch or later), GV‐Control Center (V3.8.0 with patch / V4.2.0 or later), GV‐Edge Recording Manager Windows Version (V2.2.7 or later), GV‐Recording Server / Video Gateway (V2.1.0 with patch or later) |
| Smart Device Access | GV-Eye for iOS / Android (V3.11 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox) |
The GeoVision 84-TBL4807-0010 is a professional 4MP bullet camera featuring a 6mm fixed lens with 52.1° horizontal FOV, delivering 2688x1520 resolution at 30fps. With Super Low Lux technology achieving 0.002 lux color minimum illumination and four high-power IR LEDs providing 80m night vision, it captures exceptional detail in extreme low-light conditions. WDR Pro (120dB) and 56dB S/N ratio ensure outstanding image quality in high-contrast scenes. Housed in an IP67-rated weatherproof metal casing with full 3-axis adjustment, it operates from -30°C to 60°C with DORI detection up to 135m. Powered by on-device deep learning, it delivers comprehensive AI Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring (one AI function at a time). H.265 triple streaming with 40 Mbps throughput and edge storage up to 512GB ensures robust performance. Dual built-in microphones, digital I/O, and ONVIF Profile G/S/T/M compliance enable seamless integration with GV-VMS and GV-Eye for long-range AI surveillance applications.
