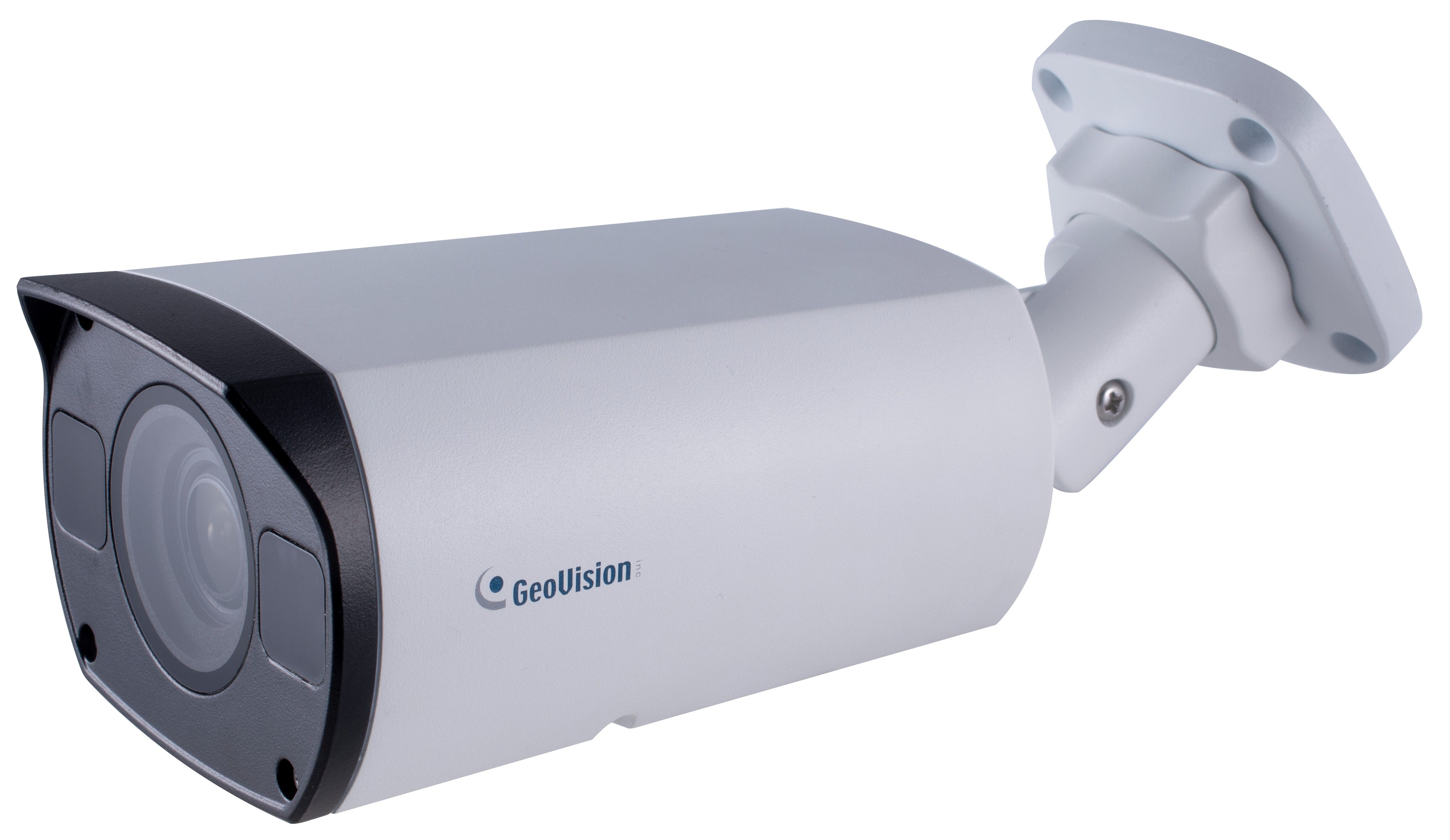

GeoVision - 84-TBL480K-0010 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Bullet IP Camera 2.7 ~ 13.5mm
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan super low lux CMOS sensor
• Min. illumination at 0.002 lux
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Up to 30 fps at 2688 x 1520
• Motorized lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Day and night function (with removable IR-cut filter)
• Vandal Resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2688 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.7 ~ 13.5mm |
| Maximum Aperture | F/1.2 |
| Mount | Ø 14 mm |
| FOV | Horizontal: 98°~31° Vertical: 54.76°~ 18.55° Diagonal: 127.74°~36.99° |
| Focus | Auto / Manual |
| Zoom | 5x Optical Zoom |
| Iris | Fixed |
| IR LED Quantity | 3 IR LEDs |
| Max. IR Distance | 50 m (165 ft) |
| DORI | |
| Detect | 2.7 mm: 60.8 m (199.5 ft) 13.5 mm: 303.8 m (996.7 ft) |
| Observe | 2.7 mm: 24.3 m (79.7 ft) 13.5 mm: 121.5 m (398.6 ft) |
| Recognize | 2.7 mm: 12.2 m (40 ft) 13.5 mm: 60.8 m (199.5 ft) |
| Identify | 2.7 mm: 6.1 m (20 ft) 13.5 mm: 30.4 m (99.7 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate | 30 fps at 2688 x 1520 / 2560 x 1440 / 2304 x 1296 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 40 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format). |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (external microphone and speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 640 x 360 (Default), 640 x 480 |
| Third Stream (Closed by Default) | 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 90° Rotate: 0 ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 8.5W |
| Dimensions | 244 × 96 ×74 mm (9.6" × 3.8" × 2.9") |
| Weight | 1.0 kg (2.2 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TBL480K-0010 is a professional 4MP bullet camera featuring a motorized 2.7-13.5mm varifocal lens with 5x optical zoom and F1.2 fast aperture, delivering 2688x1520 resolution at 30fps. With a 98° to 31° horizontal FOV and three high-power IR LEDs providing 50m night vision, it offers exceptional flexibility from wide-area coverage to long-distance surveillance- - with DORI detection up to 303.8m at telephoto. Super Low Lux technology achieves 0.002 lux color minimum illumination, while WDR Pro (120dB) and 56dB S/N ratio ensure outstanding image quality in challenging conditions. Housed in an IK10 vandal-resistant metal casing with an IP67 rating and full 3-axis adjustment, it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, it delivers comprehensive AI Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring (one AI function at a time). H.265 triple streaming with 40 Mbps throughput, two-way audio, digital I/O, and edge storage up to 512GB ensures robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional AI-powered surveillance requiring an extended optical zoom range.
