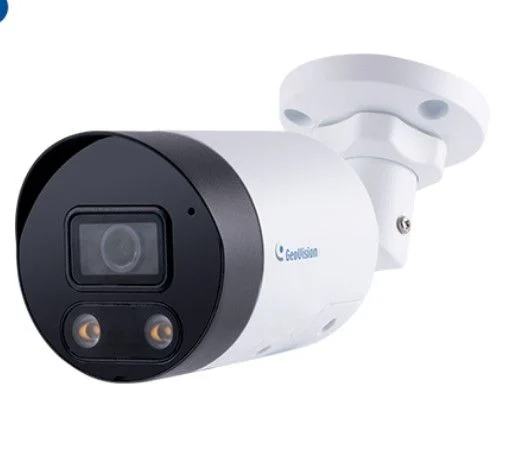

GeoVision - 84-TBL8804-0010 - AI 8MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Bullet IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.01 lux
• Up to 20 fps at 3840 x 2160
• Intelligent IR
• Day and night function (with removable IR-cut filter)
• Active Deterrence: alarm sound and warm LED light triggered on AI detection events
• IR distance up to 30 m (100 ft)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Built-in microphone and speaker
• Two-way audio
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile S, G, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan super low lux CMOS |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR ON: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | Up to 120 dB |
| Lens | |
| Megapixel | 8 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 4 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| FOV | Horizontal: 86° Vertical: 44.1° Diagonal: 112.5° |
| Operation | |
| Focus | Fixed |
| Zoom | |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| Warm LED Quantity | 2 warm LEDs |
| Max. Warm LED Light Distance | 20 m (65 ft) |
| DORI | |
| Detect | 120 m (383.7 ft) |
| Observe | 48 m (157.5 ft) |
| Recognize | 24 m (78.7 ft) |
| Identify | 12 m (39.4 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 3840 x 2160 (Default), 2944 x 1656, 2560 x 1440, 1920 x 1080 Sub Stream: 1280 x 720, 704 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 Third Stream (Closed by Default): 704 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Frame Rate | 20 fps at 3840 x 2160, 25 fps at 2944 x 1656 / 2560 x 1440, 30 fps at 1920 x 1080 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Streams | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering Alarm, Audio Detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (built-in microphone and speaker) |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile S, G, T, M) |
| Mechanical | |
| Temperature Detector | No |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack (DC 12 V, 1.25 A), PoE Ethernet: RJ-45 connector Audio: Two-way (built-in microphone and speaker) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 10.5 W |
| Dimensions | 187 × 71 × 71 mm (7.4" × 2.8" × 2.8") |
| Weight | 0.41 kg (0.99 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Italian, Russian |
| Software Application | |
| Software Supported | GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TBL8804-0010 is an 8MP (4K) bullet camera featuring a 4mm lens with 86° FOV, delivering 3840x2160 resolution at 20fps. With 0.01 lux color minimum illumination, dual illuminators (IR 30m/Warm LED 20m) for full-color night vision, and WDR Pro (120dB), it captures clear 4K footage in challenging conditions. Housed in an IP67-rated metal casing with 3-axis adjustment, it operates from -30°C to 60°C with DORI detection up to 120m. Powered by on-device deep learning, it delivers AI Perimeter Protection with human/vehicle classification (cross line, intrusion, area detection), plus face detection and people counting (one function at a time). H.265 triple streaming, two-way audio, and edge storage up to 512GB ensure robust performance. Fully ONVIF compliant for seamless integration with GV-VMS.
