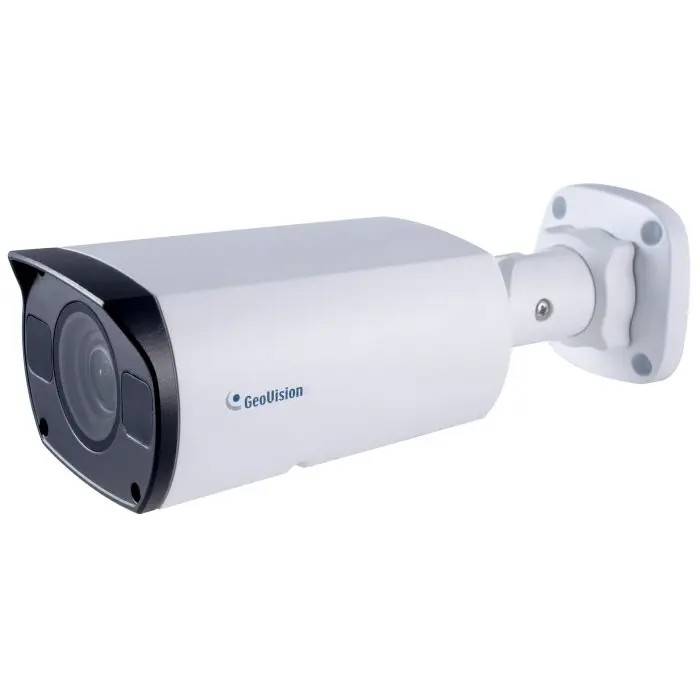

GeoVision - 84-TBL881W-0010 - AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
• AI Deep learning: Smart Premier Protection & Classification(Human, Vehicle)
• 1/2.8" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Wide Dynamic Range Pro (WDR Pro)
• Min. illumination at 0.003 lux
• Up to 20 fps at 3840 x 2160, 30 fps at 3072 x 1728 / 2560 x 1440 / 1920 x 1080
• Motorized varifocal lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Day and night function (with removable IR-cut filter)
• Vandal Resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio capable
• DC 12V / PoE (IEEE 802.3af)
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan low lux CMOS |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1/12 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | Up to 120 dB |
| Lens | |
| Megapixel | 8 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.8 ~ 12 mm |
| Maximum Aperture | F/1.6 |
| Mount | Ø 14 mm |
| FOV | Horizontal: 29.2 ~ 107.4° Vertical: 54.2°~ 16.3° Diagonal: 111.0°~33.1° |
| Focus | Auto / Manual |
| Zoom | 4.3x Optical Zoom |
| Iris | Fixed |
| IR LED Quantity | 3 IR LEDs |
| Max. IR Distance | 50 m (165 ft) |
| DORI | |
| Detect | 2.8 mm: 86.9 m (285.1 ft) 12 mm: 372.4 m (1221.8 ft) |
| Observe | 2.8 mm: 34.8 m (114.2 ft) 12 mm: 149 m (488.8 ft) |
| Recognize | 2.8 mm: 17.4 m (57.1 ft) 12 mm: 74.5 m (244.4 ft) |
| Identify | 2.8 mm: 8.7 m (28.5 ft) 12 mm: 37.2 m (122.0 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080 Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 Third Stream (Closed by Default): 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Frame Rate | 20 fps at 3840 x 2160, 30 fps at 3072 x 1728 / 2560 x 1440 / 1920 x 1080 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 40 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering Alarm, Audio Detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (external microphone and speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 120° Rotate: 0 ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 9.5 W |
| Dimensions | 244 × 96 ×74 mm (9.6" × 3.8" × 2.9") |
| Weight | 1.0 kg (2.2 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Application | |
| Software Supported | GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TBL881W-0010 is a professional 8MP (4K) bullet camera featuring a motorized 2.8-12mm varifocal lens with 4.3x optical zoom and F1.6 aperture, delivering 3840x2160 Ultra HD resolution. With a 107.4° to 29.2° horizontal FOV and three high-power IR LEDs providing 50m night vision, it offers exceptional flexibility from wide-area coverage to long-distance surveillance - with DORI detection up to 372.4m at telephoto. Super Low Lux technology achieves 0.003 lux color minimum illumination, while WDR Pro (120dB) and 56dB S/N ratio ensure outstanding 4K image quality in challenging conditions. Housed in an IK10 vandal-resistant metal casing with IP67 rating and full 3-axis adjustment, it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, it delivers comprehensive AI Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring (one AI function at a time). H.265 triple streaming with 40 Mbps throughput, two-way audio, digital I/O, and edge storage up to 512GB ensure robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional 4K AI-powered surveillance requiring extended optical zoom range.
