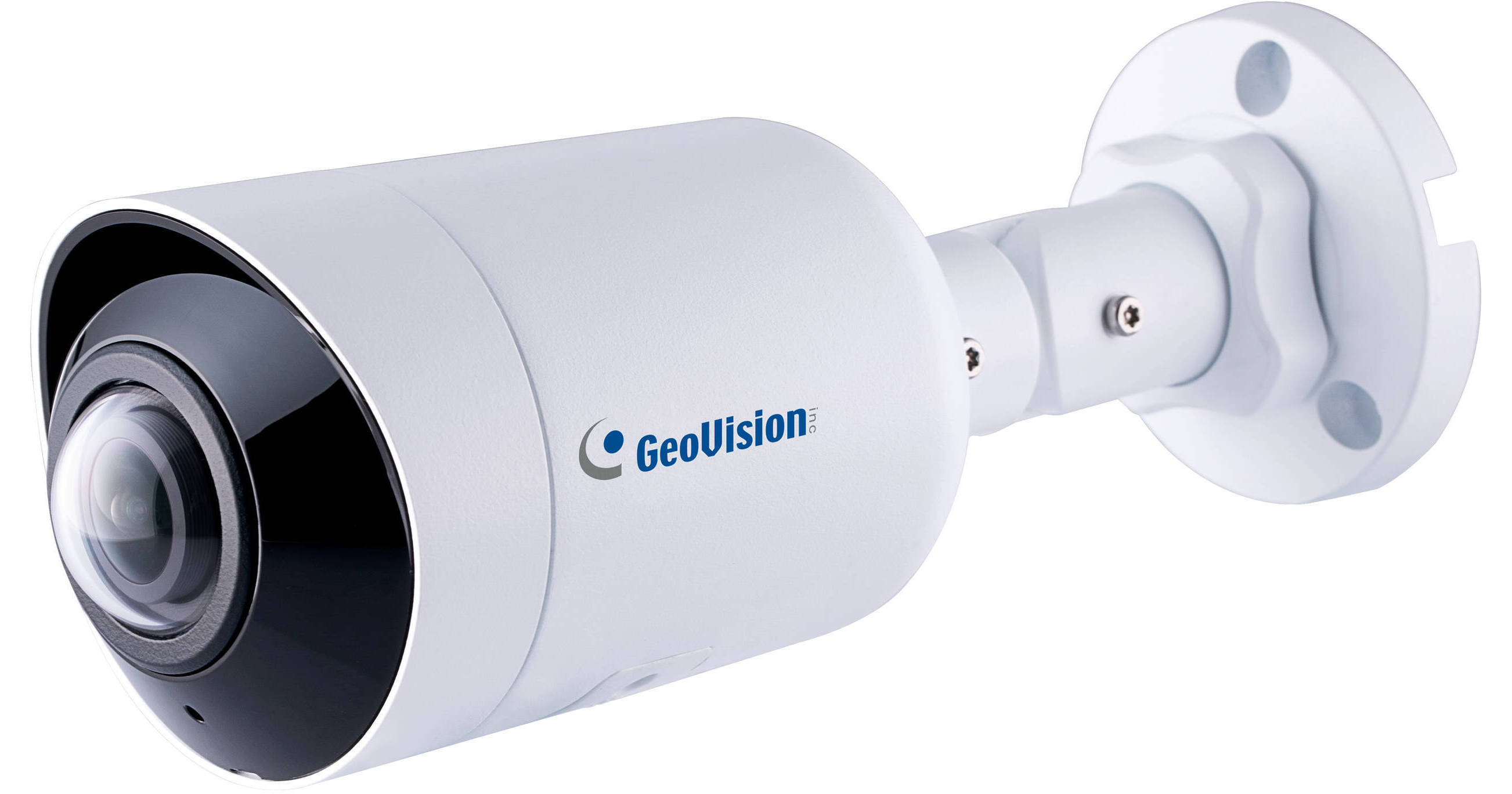

GeoVision - 84-TBLP580-0010 - AI 180° Panoramic 5MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera
• AI Deep learning: Smart Premier Protection & Classification (Human, Vehicle)
• 1/2.7” progressive scan CMOS
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2880 x 1620
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and Night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• DC 12 V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Intrusion, Crossing Line, Entering Area, Leaving Area)
• 3D noise reduction
• Motion detection
• Tampering alarm
• Defog
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2880 (H) x 1620 (V) | 5 Megapixels |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 5 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 1.68 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| FOV | Horizontal: 180° Vertical: 100° Diagonal: 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 37.8 m (124.0 ft) |
| Observe | 15.1 m (49.6 ft) |
| Recognize | 7.6 m (24.8 ft) |
| Identify | 3.8 m (12.4 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2880 x 1620 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080 Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288 Third Stream (Closed by Default): 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080 (50/60 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 40 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Audio Alarm, Tamper Detection. *Tampering detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°) |
| Audio Compression | G.711 |
| Audio Support | One‐way Audio (built-in microphone) |
| Deep Learning Function | |
| AI Analytics | Human & Vehicle classification: Intrusion, Crossing Line, Entering Area, Leaving Area |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: 1 In (built‐in microphone) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 1.25A 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 5.5 W |
| Dimensions | 198 x 71 x 71.3 mm (7.8 x 2.8 x 2.8") |
| Weight | 0.42 kg (0.93 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Applications | |
| Software Supported | GV‐VMS (V17.4.7 with patch / V18.3.2 with patch or later), GV‐Control Center (V3.8.0 with patch / V4.2.0 or later), GV‐Edge Recording Manager Windows Version (V2.2.7 or later), GV‐Recording Server / Video Gateway (V2.1.0 or later) |
| Smart Device Access | GV-Eye for iOS / Android (V3.1.0 / V3.1.1 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox) |
The GeoVision 84-TBLP580-0010 is a specialized 5MP panoramic bullet camera featuring a 1.68mm fixed lens providing true 180° horizontal and diagonal field of view, delivering 2880x1620 resolution at 30fps. With 0.01 lux color minimum illumination, dual IR LEDs for 20m night vision, and WDR Pro (120dB), it captures comprehensive wide-area coverage in challenging lighting conditions. Housed in an IP67-rated weatherproof metal casing with full 3-axis adjustment, it operates reliably from -30°C to 60°C.
Powered by on-device deep learning, it delivers AI analytics with human and vehicle classification for intrusion, crossing line, entering area, and leaving area detection. H.265 triple streaming with 40 Mbps throughput and edge storage up to 512GB ensures robust performance. One-way audio with built-in microphone provides essential functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional 180° panoramic AI surveillance requiring comprehensive wide-area coverage from a bullet form factor.
