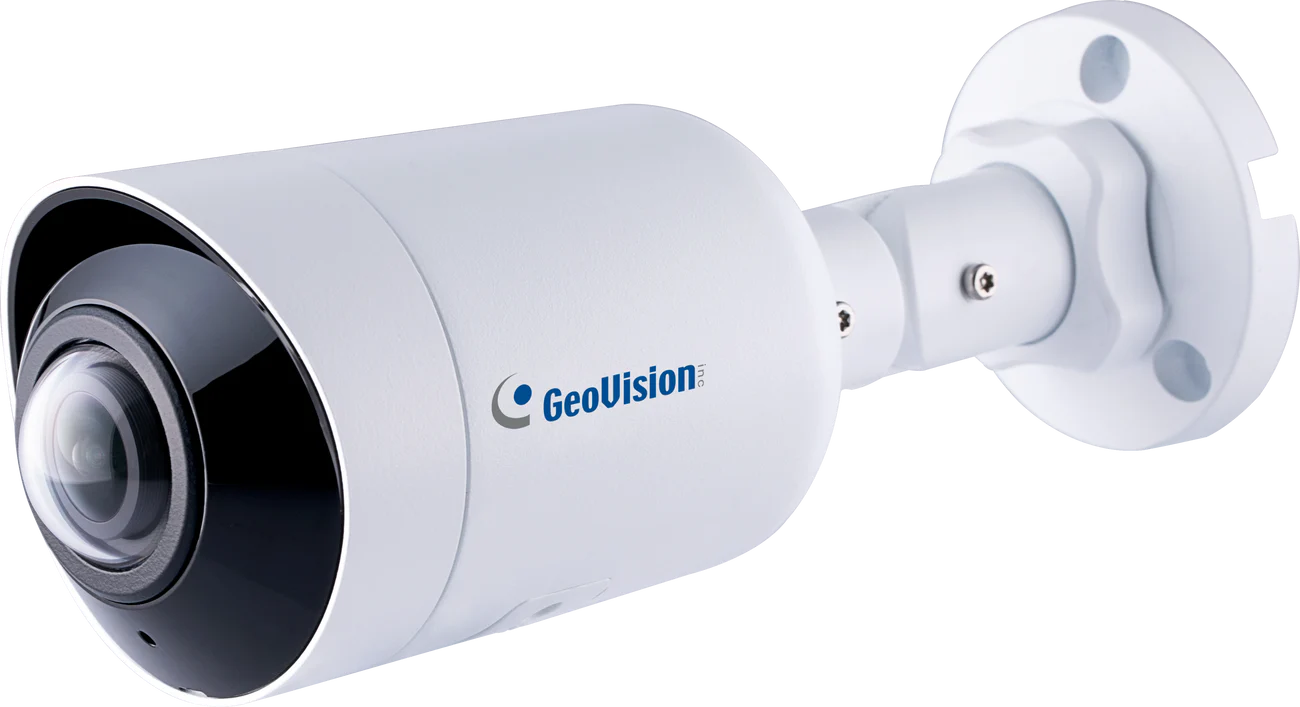

GeoVision - 84-TBLP880-0010 - AI 180° Panoramic 8MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7” progressive scan CMOS
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 3840 x 2160
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and Night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Intrusion, Crossing Line, Entering Area, Leaving Area)
• 3D noise reduction
• Motion detection
• Tampering Alarm
• Defog
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T, M) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 3840 (H) x 2160 (V) | 8 Megapixels (4K) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 8 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 1.68 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| FOV | Horizontal: 180° Vertical: 100° Diagonal: 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 37.8 m (124.0 ft) |
| Observe | 15.1 m (49.6 ft) |
| Recognize | 7.6 m (24.8 ft) |
| Identify | 3.8 m (12.4 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080 Sub Stream: 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288 Third Stream (Closed by Default): 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 3840 x 2160, 3072 x 1728, 2560 x 1440, 1920 x 1080 (50/60 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 50 Mbps |
| Maximum Streams | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Audio Alarm, Tamper Detection. *Tampering detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°). |
| Audio Compression | G.711 |
| Audio Support | One‐way audio |
| Deep Learning Function | |
| AI Analytics | Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification) |
| Network | |
| Interface | 10M/100M Ethernet |
| Protocol | 802.1X (including EAP-TLS), IPv4, IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, PPPoE, QoS, IGMP, ONVIF Profile (G, S, T, M) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 90° Rotate: 0°~ 360° |
| Connectors | Power: DC Jack, PoE Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: No; Built-in speaker: No; External speaker required: No *For devices with microphone or speaker, choose either the built-in or external option. *If equipped with an audio in port, it only supports microphones with power supply Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | 198 x 71 x 71.3 mm (7.8 x 2.8 x 2.8") |
| Weight | 0.42 kg (0.93 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Software Applications | |
| Software Supported | GV‐VMS (V17.4.8 or later, patch files required / V18.3.4 / V20.0.0 or later), GV‐Control Center (V4.2.1 or later), GV‐Edge Recording Manager Windows Version (V2.2.8 or later), GV‐Recording Server / Video Gateway (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.1 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox) |
The GeoVision 84-TBLP880-0010 is an 8MP (4K) panoramic bullet camera featuring a 1.68mm fixed lens providing true 180° horizontal and diagonal field of view, delivering 3840x2160 Ultra HD resolution at 30fps. With 0.01 lux color minimum illumination, dual IR LEDs for 20m night vision, and WDR Pro (120dB), it captures comprehensive 4K wide-area coverage in challenging lighting conditions. Housed in an IP67-rated weatherproof metal casing with full 3-axis adjustment, it operates reliably from -30°C to 60°C. Powered by on-device deep learning, it delivers AI analytics with human and vehicle classification for intrusion, crossing line, entering area, and leaving area detection. H.265 triple streaming with 50 Mbps throughput and edge storage up to 512GB ensures robust performance. One-way audio with built-in microphone provides essential functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional 180° panoramic 4K AI surveillance requiring comprehensive wide-area coverage from a bullet form factor.
