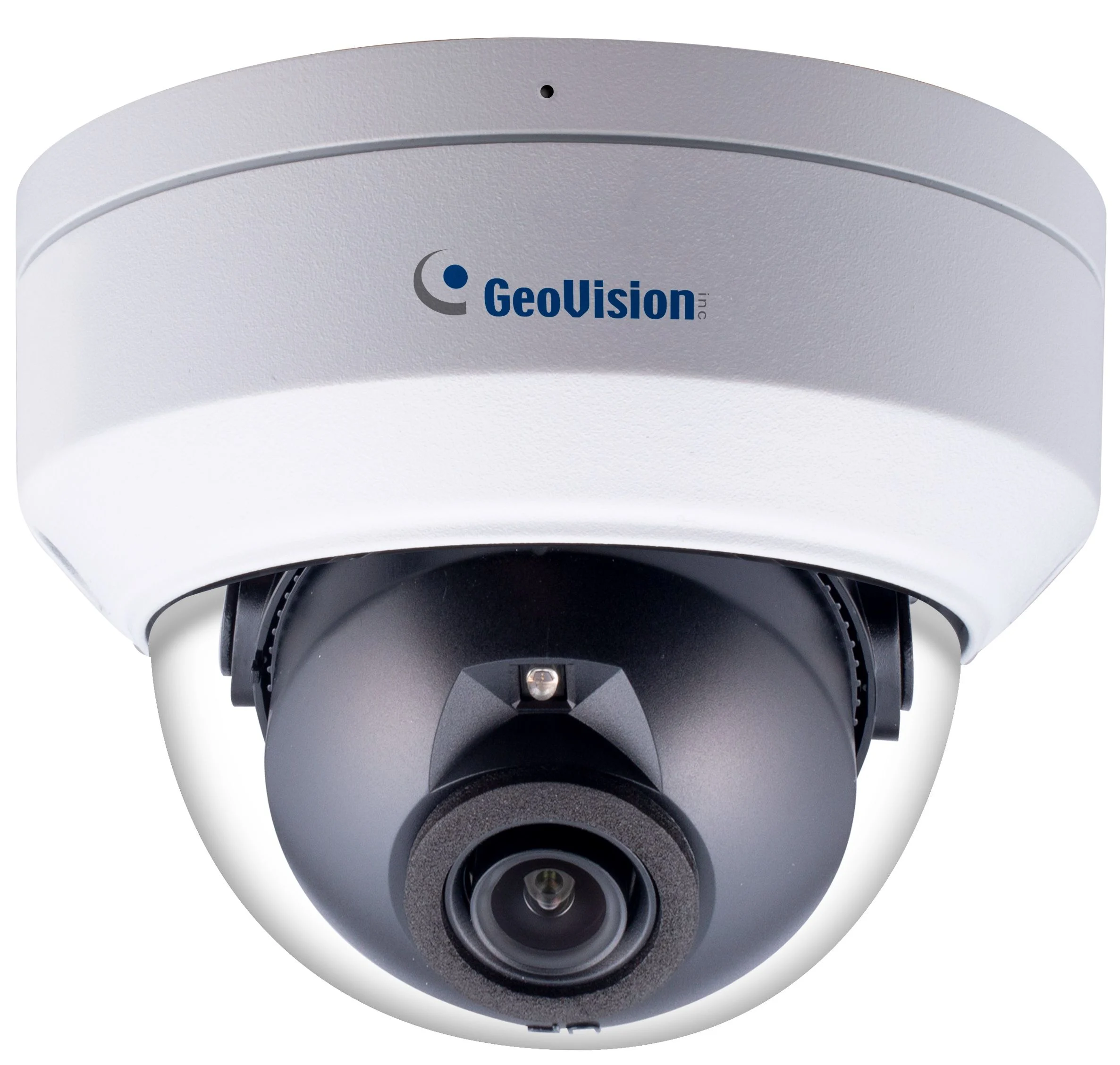

GeoVision - 84-TDR2705-2F10 - 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome 2.8mm
• 1/2.7" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Dual streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Built‐in micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10)for local storage
• 3‐axis mechanism (pan / tilt / rotate)
• Day and night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal Resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• Tampering alarm
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T) conformant
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) | 2 Megapixels (1080p) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR ON: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100,000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | Up to 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 2 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/2.0 |
| Mount | Ø 12 mm |
| Horizontal FOV | 112.9° |
| Operation | |
| Focus | Fixed |
| Zoom | |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| DORI | |
| Detect | 42 m (137.7 ft) |
| Observe | 16.8 m (51.1 ft) |
| Recognize | 8.4 m (27.5 ft) |
| Identify | 4.2 m (13.7 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Dual streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 1920 x 1080 (Default), 1280 x720 Sub Stream: 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default) |
| Frame Rate | 30 fps at 1920 x 1080 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 50 Mbps |
| Maximum Stream | 6 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion *Tampering Alarm, Audio Detection, Cross Line, Intrusion are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP. |
| Image Setting | Brightness, Saturation, Contrast, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One‐way audio |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360° |
| Connectors | Power: DC Jack (DC 12 V, 1.25 A), PoE Ethernet: RJ-45 connector Audio: Built-in microphone: Yes; External microphone required: No; Built-in speaker: No; External speaker required: No Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) *UHS‐II card type is not supported. |
| General | |
| Operating Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 1.25A 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 5.0 W |
| Dimensions | Ø 109 x 83 mm (Ø 4.3" x 3.3") |
| Weight | 0.36 kg (0.79 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Certification | FCC, CE, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV‐IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV‐VMS (V17.4.8 / V18.3.3 / V20.0.0 or later), GV‐Control Center (V4.2.1 or later), GV‐Recording Server / Video Gateway (V2.1.1 or later), GV‐Edge Recording Manager Windows Version (V2.2.8 or later), GV-IP Device Utility (V9.0.1 or later) |
| Smart Device Access | GV-Eye for iOS / Android (V3.2.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TDR2705-2F10 is a compact 2MP turret camera featuring a 1/2.7" progressive CMOS sensor delivering 1920x1080 Full HD resolution at 30fps. Equipped with a 2.8mm fixed lens providing an ultra-wide 112.9° horizontal field of view at F2.0 aperture, it captures broad coverage ideal for indoor and outdoor surveillance. With Low Lux technology achieving 0.01 lux color minimum illumination and a single IR LED providing 30m night vision, it delivers clear imaging in low-light conditions. WDR Pro (120dB) and up to 52dB S/N ratio ensure balanced image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and 3-axis mechanical adjustment (pan/tilt/rotate), it operates reliably from -30°C to 60°C with DORI detection up to 42m.
The camera supports dual-stream H.265/H.264/MJPEG compression with up to 50 Mbps throughput and 6 simultaneous streams. Video analytics include motion detection, tampering alarm, audio detection, line crossing, and intrusion detection accessible via web interface. One-way audio with built-in microphone and edge storage up to 512GB via microSD card provide essential functionality. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for reliable 2MP surveillance applications requiring wide dynamic range and IR night vision.
