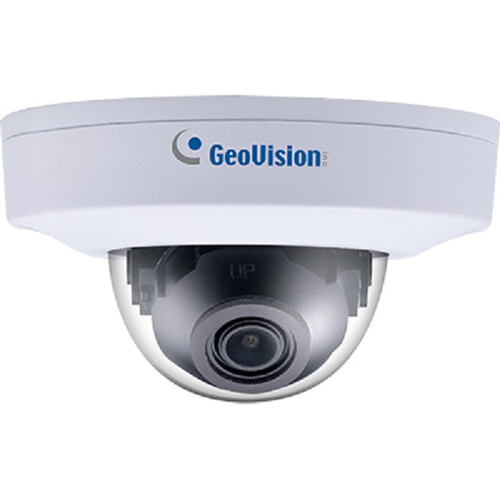

GeoVision - 84-TFD480K-0010 - AI 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome, 2.8mm
• AI deep learning: AI Perimeter Protection & Classification (Human & Vehicle)
• 1/2.7” progressive scan CMOS
• Min. illumination at 0.003 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• IR distance up to 30 m (100 ft)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Two-way audio capable
• One sensor input and one alarm output
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2688 (H) x 1520 (V) | 4 Megapixels |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | Yes |
| Day/Night | Yes (with removable IR-cut filter) |
| Focal Length | 2.8 mm |
| Lens Type | Fixed |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| FOV | Horizontal: 101.1° Vertical: 55.3° Diagonal: 111.1° |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| DORI | |
| Detect | 63 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default) Third Stream (Closed by Default): 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format), Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO / NC Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Deep Learning Function | |
| AI Analytics | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 348° Tilt: -66° ~ 66° Rotate: 0°~ 346° |
| Connectors | Power: Terminal block (DC 12 V, 1.25 A), PoE Ethernet: RJ-45 connector Audio: 1 In (built‐in microphone or terminal block), 1 out (terminal block) Digital I/O: Terminal block Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30° ~ 55°C (-22° ~ 131°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 4.5 W |
| Dimensions | Ø 109 x 62 mm (Ø 4.3" x 2.4") |
| Weight | 0.22 kg (0.49 lb) |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV-DVR / NVR (V8.9.1), GV-VMS (V17.4.5 / V18.3.0), GV-Control Center (V3.8.0 / V4.0.1), GV-Edge Recording Manager Windows Version (V2.2.0), GV-Recording Server / Video Gateway (V2.0.2), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-AI Guard (V1.0.0) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (Edge, IE mode in Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TFD480K-0010 is a compact 4MP flange turret camera featuring a 1/2.7" progressive scan CMOS sensor delivering 2688x1520 resolution at 30fps. Equipped with a 2.8mm fixed lens providing a 101.1° horizontal FOV at F1.6 fast aperture, it captures wide-area coverage ideal for indoor and outdoor surveillance. With Super Low Lux technology achieving 0.003 lux color minimum illumination and a single IR LED providing 30m night vision, it delivers exceptional low-light performance. WDR Pro (120dB) and 52dB S/N ratio ensure outstanding image quality in high-contrast scenes. Housed in a lightweight IP67-rated weatherproof metal casing with 3-axis mechanical adjustment, it operates reliably from -30°C to 55°C with DORI detection up to 63m. Powered by on-device deep learning, it delivers comprehensive AI Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring (one AI function at a time). H.265 triple streaming with 40 Mbps throughput, two-way audio, digital I/O, and edge storage up to 512GB ensure robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-AI Guard for professional AI-powered 4MP surveillance requiring a compact flange turret form factor.
