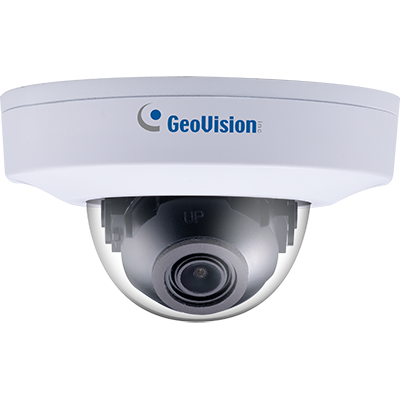

Geovision - GV-TFD4800 - 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome
Part number:
115-TFD4800-0010
Price:

AI Deep-Learning IP Camera
GV‐TFD4800 is an indoor, fixed, network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, playback and more.


Features
  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.7" progressive scan CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • 3-axis mechanism (pan / tilt / rotate)
  • Two-way audio
  • One sensor input and one alarm output
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Built-in microphone
  • Pigtail-free
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • Tampering alarm
  • Smartphone app support
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant
Camera
Image Sensor 1/2.7” progressive scan CMOS
Picture Elements 2688 (H) x 1520 (V)
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Contro Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel Yes
Day/Nigh Yes (with removable IR-cut filter)
Focal Length 2.8 mm
Lens Type Fixed
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 101.1°
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
