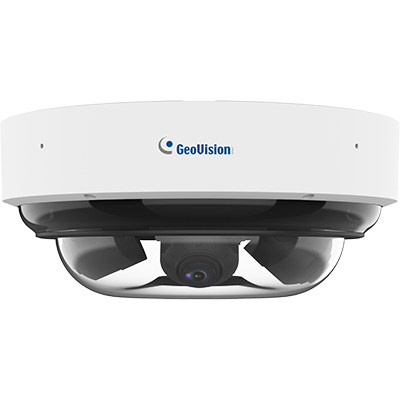

GeoVision - 84-TMS2081-1010 - AI 4 x 5MP Quad-Sensor Multi-Directional H.265 5x Zoom Super Low Lux WDR Pro IR IP Dome
• AI deep learning: AI Perimeter Protection & Classification(Human, Vehicle)
• 4 adjustable lenses in one camera cover up to 360° field ofview
• 1/2.7" progressive scan super low lux CMOS sensor
• Min. illumination at 0.002 lux
• Wide Dynamic Range Pro (WDR Pro)
• Day / Night functionality (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Triple streams from H.265, H.264
• Up to 30 fps at 2880 x 1620
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• DC 24V / AC 24V / High PoE (IEEE 802.3bt)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan super low lux CMOS (Quad Sensor) |
| Picture Elements | 2880 (H) x 1620 (V) per sensor | 5 Megapixels each (Total 20MP) |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON) |
| B/W: 0.001 Lux (F1.2, AGC ON) | |
| IR On: 0 Lux | |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 52 dB |
| WDR | WDR Pro |
| Dynamic Range | 130 dB |
| Lens (Quad Lens) | |
| Megapixel | 5 MP for each lens |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal |
| Focal Length | 2.7 ~ 13.5 mm |
| Maximum Aperture | F/1.2 |
| Mount | Ø 14 mm |
| FOV | Horizontal: 110.3° ~ 31° |
| Vertical: 57.1° ~ 17.5° | |
| Diagonal: 143.4° ~ 38.1° | |
| Focus | Auto / Manual |
| Zoom | 5x Optical Zoom |
| Iris | Fixed |
| IR LED Quantity | 9 IR LEDs |
| Max. IR Distance | 50 m (165 ft) |
| DORI (Per Lens) | |
| 2.7 mm | Detect: 70.9 m (232.5 ft) Observe: 28.4m (93.0 ft) Recognize: 14.2m (46.5 ft) Identify: 7.1 m (23.3 ft) |
| 13.5 mm | Detect: 247.5 m (812.0 ft) Observe: 99.0m (324.8 ft) Recognize: 49.5m (162.4 ft) Identify: 24.8 m (81.2 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264, or MJPEG |
| Frame Rate | 30 fps at 2880 x 1620, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 50 Mbps |
| Maximum Streams | 20 * When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection * Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP. |
| Image Settings | Brightness, Saturation, Contrast, Sharpness, Flicker-less, 2D Noise Reduction, 3D Noise Reduction, Exposure Compensation, Metering Control (BLC), Smart Illumination (Infrared), White Balance, Defog, Dewarping, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270° – including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 3 input (dry contact, NO / NC) |
| Output: 2 relay output (30V DC, 1A / 125V AC, 0.5A) | |
| Video Resolution | |
| Main Stream | 2880 x 1620 (Default), 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360, 704 x 288, 352 x 288 |
| Sub Stream | 1920 x 1080 (Default), 1280 x 720, 720 x 576, 640 x 480, 640 x 360, 704 x 288, 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 640 x 360, 704 x 288, 352 x 288 |
| Network | |
| Interface | 10/100/1000 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, SSL/TLS, SSH, TCP, UDP, UPnP |
| Deep Learning Function | |
| AI Analytics | Sensor 1, Sensor 2, Sensor 3, Sensor 4 (Independent per sensor): - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring |
| *Within a sensor, all Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function per sensor can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. *Each sensor can have an AI function enabled independently. | |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0°~ 360° Tilt: 0°~ 65° Rotate: 0°~ 355° |
| Connectors | Power Input: 3-pin Power Input wire |
| Power Output: 2-pin terminal block with pitch 3.81 mm (0.15 in) * The Power Output port supplies power to external microphones and speakers. | |
| Ethernet: RJ-45 connector | |
| RS-485: Half-duplex, 2-pin terminal block with pitch 3.81 mm (0.15 in) * The RS-485 port is used for input/output data transmission. | |
| Audio: Built-in microphone: Yes; External microphone required: Yes (3-pin terminal block with pitch 3.81 mm or 0.15 in); Built-in speaker: No; External speaker required: Yes (3-pin terminal block with pitch 3.81 mm or 0.15 in) * Choose either the built-in or external microphone. * The Audio In port only supports microphones with a power supply. Digital I/O: 4-pin terminal block with pitch 3.81 mm (0.15 in) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB | |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 5% ~ 95% (no condensation) |
| Power Source | DC 24V, 2.5A / AC 24V, 2.5A / PoE++ (IEEE 802.3bt, 60 W) |
| Max. Power Consumption | 48.7 W |
| Power Output | DC 12V, 100mA |
| Dimensions | Ø 318 × 136.6 mm (Ø 12.5 x 5.4 in) |
| Weight | 4.77 kg (10.52 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Image Quality, Video Recording, Bandwidth Control, Image Snapshot, Digital Zoom, Voice Intercom, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Applications | |
| Software Supported | GV‐VMS (V17.4.8 / V18.3.5 or later, patch files required), GV‐Control Center (V4.2.1 or later, patch files required), GV‐Recording Server / Video Gateway (V2.1.1 or later, patch files required), GV‐Edge Recording Manager for Windows (V2.3.0 or later), GV-IP Device Utility (V9.0.3 or later) * GV-TMS20811 occupies four channels of GV-VMS. |
| Smart Device Access | GV-Eye for iOS / Android (V3.5.0 or later) |
| Live Viewing | Browser (Edge, IE mode in Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TMS2081-1010 is a professional quad-sensor turret camera featuring four independent 1/2.7" super low lux CMOS sensors, each delivering 2880x1620 (5MP) resolution at 30fps. Equipped with four motorized 2.7-13.5mm varifocal lenses providing 5x optical zoom and F1.2 fast aperture per sensor (110.3° to 31° FOV), it captures comprehensive 360° coverage with exceptional flexibility from a single mounting point. With Super Low Lux technology achieving 0.002 lux color minimum illumination and nine IR LEDs providing 50m night vision, it delivers outstanding low-light performance. WDR Pro (130dB) and 52dB S/N ratio ensure exceptional image quality in extreme high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 rating and independent 3-axis adjustment per sensor, it operates reliably from -30°C to 60°C with DORI detection up to 247.5m per sensor.
Powered by on-device deep learning, it delivers independent AI analytics per sensor including Perimeter Protection with human/vehicle classification (cross line, enter/leave area, intrusion), plus face detection, people counting, and crowd density monitoring. H.265 triple streaming with 50 Mbps throughput, Gigabit Ethernet, two-way audio, 3 input/2 output digital I/O, RS-485, and edge storage up to 512GB ensure robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS (occupying four channels) and GV-Eye for professional multi-sensor AI-powered surveillance requiring optical zoom and comprehensive 360° coverage.
