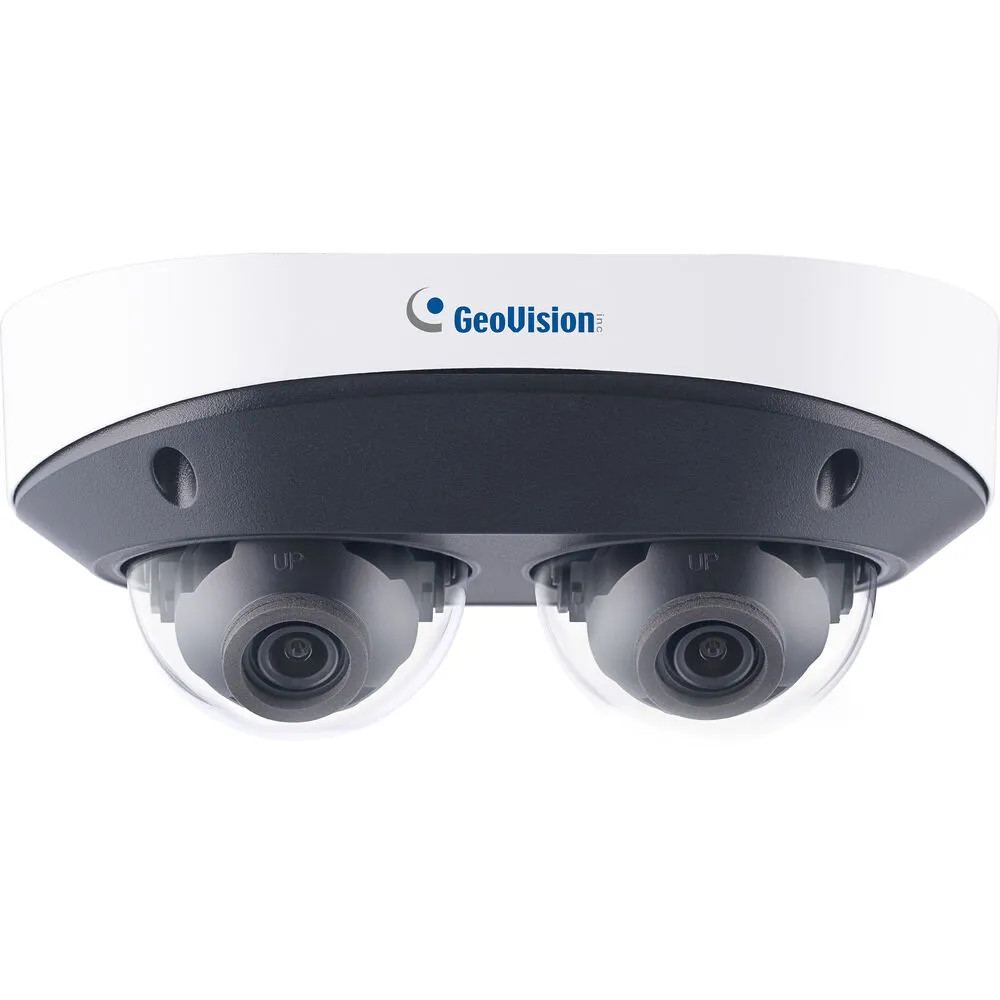

GeoVision - 84-TMS8800-0010 - 2 x 4MP Dual-Sensor Multi-Directional H.265 Super Low Lux WDR Pro IR Fixed IP Dome
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan super low lux CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.002 lux
• Up to 25 fps at 2688 x 1520
• Wide Dynamic Range Pro (WDR Pro)
• Day and night function (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal Resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in microphone
• Two-way audio capable
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS (Dual Sensor) |
| Picture Elements | 2688 (H) x 1520 (V) per sensor | 4 Megapixels each (Total 8MP) |
| Minimum Illumination | Color: 0.002 Lux (F1.6, AGC ON) IR ON: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | Up to 52 dB |
| WDR Pro | Yes |
| Dynamic Range | 130 dB |
| Lens (Dual Lens) | |
| Megapixel | 4 MP for each lens |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | Ø 12 mm |
| FOV | Horizontal: 97.7° Vertical: 52.67° Diagonal: 102.52° |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| DORI (Per Lens) | |
| Detect | 63.0 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 25 fps at 2688 x 1520, 2560 x 1440 30 fps at 2304 x 1296, 1920 x 1080, 1280 x 720 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 50 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Saturation, Contrast, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (external speaker required) |
| Digital I/O | Input: 1 Input, dry contact, NO/NC Output: 1 Relay Output (DC 30V, 1A / AC 125V, 0.3A) |
| Deep Learning Function | |
| AI Analytics | Sensor 1: - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring Sensor 2: - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 180° Tilt: 0° ~ 66° Rotate: 0° ~ 346° |
| Connectors | Power: DC Jack (DC 12V, 1.25A), PoE (IEEE 802.3af) Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: Yes (3-pin terminal block); Built-in speaker: No; External speaker required: Yes (3-pin terminal block) *Choose either the built-in or external microphone. *The audio in port only supports microphones with power supply. Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14”) Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V, 1.25A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 9.1 W |
| Dimensions | 176 × 104 × 72 mm (6.9" × 4.1" × 2.8") |
| Weight | 0.62 kg (1.37 lb) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 for metal casing |
| Certification | FCC, CE, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required / V20.0.0 or later), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge Recording Manager Windows Version (V2.3.0 or later), GV-Recording Server / Video Gateway (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.1 or later) *GV-TMS8800 occupies two channels of GV-VMS. |
| Smart Device Access | GV-Eye for iOS / Android (V3.5.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-TMS8800-0010 is a dual-sensor turret camera featuring two 4MP sensors (2688x1520 each at 25fps) with 2.8mm lenses providing 97.7° FOV per sensor. With 0.002 lux color sensitivity, dual IR LEDs for 30m night vision, and 130dB WDR Pro, it captures exceptional detail in challenging lighting. Housed in an IK10/IP67-rated metal casing with independent 3-axis adjustment per sensor, it operates from -30°C to 60°C. Powered by on-device deep learning, it delivers independent AI analytics per sensor including Perimeter Protection (human/vehicle classification), face detection, and people counting. H.265 triple streaming with edge storage up to 512GB ensures robust performance. Fully ONVIF compliant, it integrates with GV-VMS (2-channel) and GV-Eye for comprehensive multi-sensor surveillance from a single mounting point.
