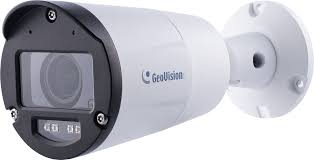

GeoVision - 86LPR00LR2812DLNU001 - GV-LPR2812-DL/LPR/LPR2812-DL/N/A/European/100000
• Built-in deep learning LPR processor for license plate recognition
• Dual-lane recognition
• 1/2.8" progressive scan super low lux CMOS
• Min. illumination at 0.04 lux
• Third streams from H.265, H.264, and MJPEG
• Up to 30 fps at 1920 x 1080
• Motorized varifocal lens for remote focus/zoom adjustment
• Intelligent IR
• IR distance up to 22 m (70 ft)
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• DC 12V / PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• Standalone database
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Digital I/O (1 in / 1 out)
• Recognize vehicles with speeds up to 100 km/h (62 mph)
• Log Export
• LPR results overlaid on recognition images
• One-way audio capable
• Motion detection
• Privacy Mask
• IP address filtering
• CE, FCC, UKCA, LVD, RoHS compliant
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan super low lux CMOS |
| Minimum Illumination | Color: 0.04 Lux (F1.6 AGC ON) |
| B/W: 0.02 Lux (F1.6 AGC ON) | |
| Picture Elements | 1920 (H) x 1080 (V) | 2 Megapixels |
| Shutter Speed | Auto / Manual (1/30 ~ 1/32,000 sec.) |
| White Balance | Auto / Manual (2000 K ~ 10000 K) |
| S/N Ratio | 45 dB |
| WDR | Yes |
| Dynamic Range | 90 dB |
| Max. Speed | 100 km/h (62 mph) |
| Lens | |
| Megapixel | 2 MP |
| Day/Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized Varifocal |
| Focal Length | 5.1 ~ 51 mm |
| Horizontal FOV | 55.2°(W) ~ 7.1°(T) |
| Maximum Aperture | F/1.6 |
| Focus | Auto / Manual |
| Zoom | 10x Optical Zoom; 5x Digital Zoom |
| Iris | Auto / Manual |
| IR LED Quantity | 4 IR LEDs |
| IR Distance | 22 m (70 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Stream | Triple streams from H.265, H.264 and MJPEG |
| Frame Rate | 50Hz: 25 fps at 1920 x 1080, 26 ~ 50 fps at 1920 x 1080 WDR Off |
| 60Hz: 30 fps at 1920 x 1080 (default), 31 ~ 60 fps at 1920 x 1080 WDR Off * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes) | |
| Maximum stream | 5 connections |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation (0°, 90°, 180°, 270°), Shutter Speed, Backlight Compensation, AE Sensitivity, Denoise, Metering, 3D Noise Reduction |
| Audio Compression | G.711U / G.711A |
| Audio Support | One-way audio (external microphone required) |
| Digital I/O | Input: 1 Input (TTL, +3 – 5V DC) |
| Output: 1 Relay Output (40V DC, 300 mW / 300 mA) | |
| Video Resolution | |
| Main Stream | 4:3: 1280 x 960, 1024 x768, 800x 600, 640 x 480, 480 x 360 |
| 5:4: 1280 X 1024, 720 x 576 | |
| 16:9: 1920 x 1080, 1280 x 720, 640 X 360 | |
| Sub Stream | 4:3: 1280 x 960, 1024 x768, 800x 600, 640 x 480, 480 x 360 |
| 5:4: 1280 X 1024, 720 x 576 | |
| 16:9: 1920 x 1080, 1280 x 720, 640 X 360 | |
| Third Stream (Closed by default) | 4:3: 1280 x 960, 1024 x768, 800x 600, 640 x 480, 480 x 360 |
| 5:4: 1280 X 1024, 720 x 576 | |
| 16:9: 1920 x 1080, 1280 x 720, 640 X 360 | |
| Network | |
| Interface | 10/100 Mbps Base-T, RJ-45 |
| Protocol | 802.1x, DHCP, DNS, FTP, FTPS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NTP, RTCP, RTP, RTSPS, RTSP, SNMP, SFTP, SSL, TLS, TCP/IP, UDP |
| Security Feature | - A new ID and password are required for the first-time login |
| - 802.1x authentication | |
| - HTTPS with SSL certificate stored within the camera | |
| Mechanical | |
| Connector | Power: DC Jack |
| Ethernet: Ethernet (10/100Base-T), RJ-45 cable | |
| Audio: 1 In (Audio in wire, Mono, 1.98 Vp-p, 2.2KΩ) * 1 Out (Audio out wire) not functional | |
| Digital I/O: I/O Wires (1 In / 1 Out) RS-485: RS-485+ / RS-485- (for recognition data output) Local Storage: microSD card slot (SD/SDHC/SDXC/UHS-I, Class 10), 64 GB * UHS-II card types are not supported. | |
| LPR | |
| Min Height of License Plate Images | 40 pixels |
| Region of License Plate | Brazil, California (USA), Colombia, Czech, European Union, Filipino, France, Georgia (USA), Germany, Germany Border, Hungary, Israel, Italy, Latvia, Lithuania, Malaysia, Myanmar, Netherlands, Romania, Slovakia, Taiwan, Ukraine, United Kingdom, Vietnam |
| Snapshot | Approximately 200,000 snapshots may be stored based on the complexity of the detection environment. |
| General | |
| Operating Temperature | Startup: -20 °C ~ 55 °C (-4 °F ~ 131 °F) |
| Operation: -20 °C ~ 55 °C (-4 °F ~ 131 °F) | |
| Humidity | 20% ~ 90% (non-condensing) |
| Power Source | DC 12V, 1.08A / PoE (48V, 0.27A, IEEE 802.3af) |
| Max. Power Consumption | 13 W |
| Dimensions | Ø 86 mm x 191 mm (Ø 3.4" x 7.5") |
| Weight | 0.55 kg (1.22 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation & Management | Web-based configuration |
| Firmware Upgrade | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Image Snapshot, Audio, Picture in Picture, Privacy Mask, Text Overlay, Digital PTZ |
| Language | English, Traditional Chinese |
| Applications | |
| Live Viewing | Browser (Chrome) |
| LPR Management | GV-ASManager V6.1.2 or later, GV-Cloud Access Control |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 with patch or later / V20.0.0 or later), GV-IP Device Utility (V9.0.4 or later) |
The 86LPR00LR2812DLNU001 is a specialized license plate recognition camera featuring a 1/2.8" super low lux CMOS sensor delivering 1920x1080 resolution at up to 60fps (WDR off) with a motorized 5.1-51mm varifocal lens providing 10x optical zoom (55.2° to 7.1° horizontal FOV) and F1.6 aperture. Designed for ANPR applications up to 100 km/h, it captures clear license plates with minimum height of 40 pixels, supporting multiple regions including EU, US, Asia, and Latin America. With Super Low Lux technology achieving 0.04 lux color illumination, four IR LEDs providing 22m night vision, and WDR (90dB), it ensures reliable day/night plate capture. Housed in an IK10 vandal-resistant metal casing with IP67 rating, it operates from -20°C to 55°C. Powered by on-device AI, it delivers dedicated LPR functionality with snapshot storage up to 200,000 plates locally via microSD card. Features include RS-485 for recognition data output, digital I/O, and one-way audio. Fully compatible with GV-ASManager V6.1.2+, GV-Cloud Access Control, and GV-VMS, it integrates seamlessly for access control and tolling applications requiring high-speed, long-range license plate capture in challenging lighting conditions.
