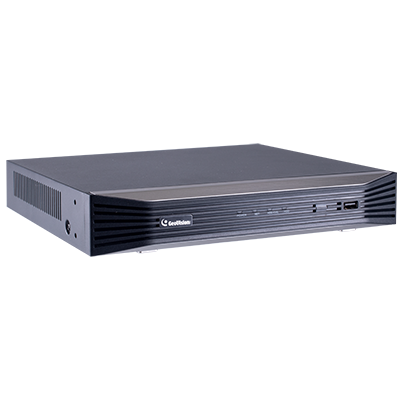

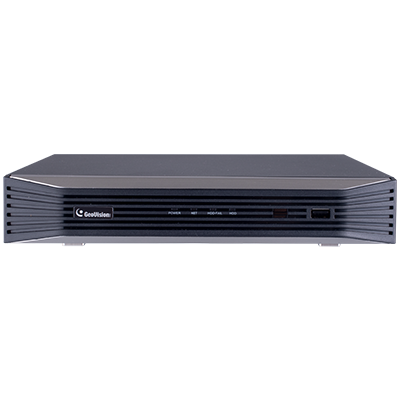

GeoVision - 88-SN8UAB40-2TB - Standalone NVR (Package: GV-SNVR0812 w 2TB + 6 x UAB40004F)
GV-SNVR0812 is a standalone network video recorder with Linux embedded that records video files directly to the internal hard drive and supports up to 8 IP camera channels for video surveillance. GV-SNVR0812 has built in PoE+ (IEEE 802.3at) ports that simultaneously provide network and power to IP cameras. Thanks to its up to 4K resolution video output, GV-SNVR0812 eliminates the need of a separate PC to view and play back video from the unit. It has USB ports that can be used to import or export system settings, update firmware, store snapshot files and back up videos.
Features:
- 8-channel video recording
- Up to 3840 x 2160 resolution for each channel
- Dual streams support
- 8-Port PoE+ (IEEE 802.3at) for camera connection
- 4K (HDMI) / 1080P (HDMI/VGA) video output
- Two‐way audio
- 1 SATA HDD drawer (3.5") for up to 10 TB storage
- Automatic search and set-up for IP cameras
- Support for third‐party IP cameras through ONVIF and RTSP protocol
- Continuous, motion, scheduled and alarm-triggered recording
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notifications for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- Fisheye dewarping (up to 2176 x 2048 for 1 channel at a time)
- Support for GV-Video Server through RTSP protocol
- PTZ control using GV-Joystick V2 or on-screen panel
- Smart device access (iOS and Android)
- Support for 14 languages
Note:
- GV-SNVR0812 only supports PoE+ (IEEE 802.3at). If your camera requires power supply above 30W, be sure to power your camera with the compatible PoE switch or its power adapter.
- For backup efficiency, it is recommended to use the external hard drive to back up your recordings.
- Product design and specifications are subject to change without notice.
| System | ||
| OS | Embedded Linux | |
| No. of Drive Bay | 1 (3.5" HDD) up to 10 TB | |
| Power Source | Input: AC 100 ~ 240V, 50 ~ 60 Hz Output: DC 52V, 1.8A, Max. 100W PoE: Max. 100W | |
| Connectors | Megabit Ethernet | 1 port for WAN, RJ-45 10/100 Mbps, 8 ports for LAN, RJ-45 10/100 Mbps, PoE+ (IEEE 802.3at) |
| Video Output | 4K (HDMI), 1080p (HDMI / VGA) | |
| Audio | 1-Ch, RCA (2.0 Vp-p, 1 k Ω) | |
| USB 2.0 | Front: USB 2.0 Port x 1; Rear: USB 2.0 Port x 2 | |
| I/O | 4 Inputs, 1 Output | |
| LED Indicator | NVR | 4 LEDs: Power, Network, HDD Fail, HDD Activity |
| PoE | 8 LEDs for each port | |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) | |
| Humidity | 0% ~ 90% RH (non-condensing) | |
| Dimensions (L x W x H) | 260 x 240 x 44 mm (10.24 x 9.45 x 1.73”) | |
| Net Weight | 1.12 kg (2.47 lb) | |
| Regulatory | FCC, CE, BSMI, LVD, RoHS compliant | |
| Software | ||
| Video and Audio | ||
| Video Compression | H.264, H.265 | |
| Video Stream | Dual streams from H.264, H265 | |
| Video Output | 4K, 1080p (HDMI / VGA) | |
| Audio Compression | G.711 | |
| Audio Support | Yes | |
| Two-Way Audio | Yes | |
| Decoding | ||
| Frame Rate | 8 MP for 1 division, up to 20 fps/CH 2 MP for 4 divisions, up to 30 fps/CH, 120 fps in total 720P for 8 divisions, up to 30 fps/CH, 240 fps in total | |
| Playback | Max. 8-ch playback | |
