Geovision - 84-GLF4830-0010 - 4 Megapixel Network IR Outdoor Bullet Camera with 2.8-12mm Lens
Product Overview

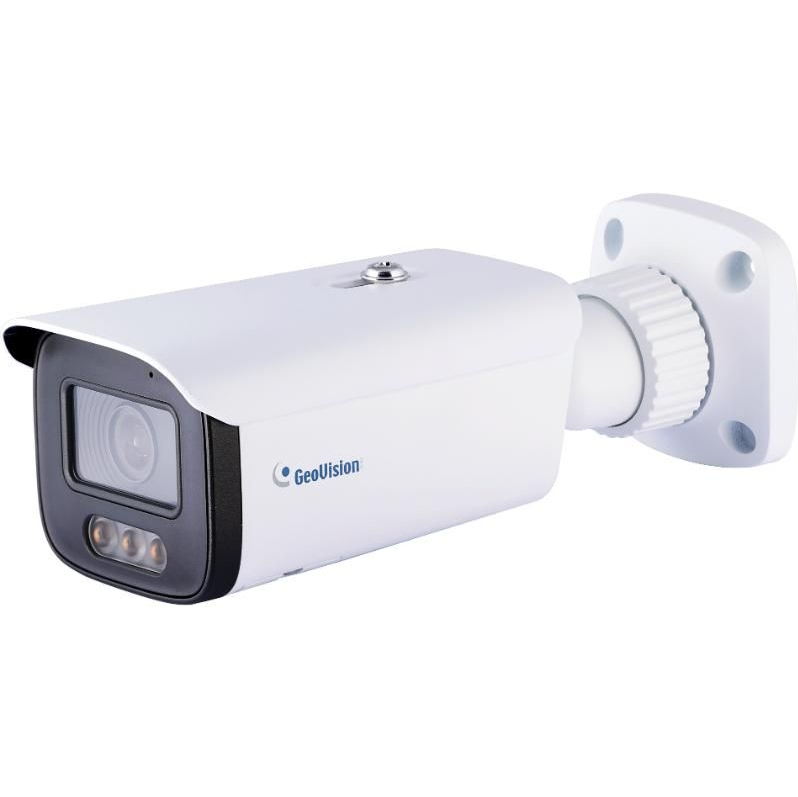

The GV‑GBLF4813 is a 4 MP H.265 bullet camera with a 4.3x zoom, Super Low Lux, WDR Pro, and smart warm LED for full‑color night vision. It offers AI perimeter protection with human/vehicle classification, IP67 weather resistance, and IK10 vandal protection.
Key Configuration
• Camera: 4 MP bullet IP camera with a 1/3" progressive scan CMOS sensor.
• Lens: Motorized 2.8–12 mm varifocal lens with 4.3× optical zoom.
• Video: Triple-stream support with H.265, H.264, and MJPEG compression.
• Illumination: Smart warm LED up to 40 m (130 ft) and IR up to 50 m (165 ft).
• Power: 12V DC or IEEE 802.3af PoE.
Key Features
This camera delivers 30 fps at 2560 × 1440 resolution and combines WDR Pro, Super Low Lux imaging, and 3D noise reduction to maintain clarity in difficult lighting. Smart lighting automatically switches between IR LED for motion detection and warm LED when people, vehicles, or motorcycles are identified. Built‑in microphone and microSD slot support audio capture and local edge storage, while AI analytics include Line Crossing and Region Intrusion. ONVIF Profiles G, S, T, and M ensure broad system compatibility.
Technical Context
The GV‑GBLF4813 integrates with GeoVision VMS for real‑time event alerts and smooth playback. It supports flexible power input via DC 12V or PoE, includes a built‑in microphone for audio capture, and offers local edge storage through a microSD card slot.
| Camera | |
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2560 (H) x 1440 (V) |
| Minimum Illumination | Color: 0.004 Lux (F1.4, AGC ON); IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes, with removable IR-cut filter |
| Lens Type | Motorized |
| Focal Length | 2.8-12 mm |
| Maximum Aperture | F/1.4 |
| Mount | Ø 14 |
| Image Format | 1/3" |
| FOV | Horizontal: 92°-31°; Vertical: 48°-17.2°; Diagonal: 112°-35.6° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 4.3x |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 50 m (165 ft) |
| Smart Illumination | 1 warm LED, max. warm LED light distance 40 m (130 ft) |
| DORI Distance | 2.8-12 mm (W): Detect 64 m, Observe 26 m, Recognize 13 m, Identify 6 m; 2.8-12 mm (T): Detect 189 m, Observe 75 m, Recognize 38 m, Identify 19 m |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | |
| Main Stream | 2560 x 1440 (default), 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720 (default), 704 x 480, 704 x 576, 640 x 480, 352 x 240, 352 x 288 |
| Third Stream | 704 x 480 (default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | Max. 30 fps (60 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 480 x 240, 352 x 240; Max. 25 fps (50 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 480 x 240, 352 x 288 |
| Maximum Throughput | 36 Mbps |
| Maximum Streams | 6, when the total bitrate is within the maximum throughput |
| Analytics and Events | |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°, including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion with human and vehicle classification. The two functions can only be enabled one at a time. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360°; Tilt: 0 ~ 90°; Rotate: 0 ~ 360° |
| Power Connector | DC jack |
| Ethernet Connector | RJ-45 connector |
| Audio | Built-in microphone: Yes; external microphone required: Yes, audio jack 3.5 mm (0.14 in); built-in speaker: No; external speaker required: No. Choose either the built-in or external microphone. The Audio In port only supports microphones with a power supply. |
| Local Storage | microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95%, no condensation |
| Power Source | DC 12V, 1.5A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 8.5 W |
| Dimensions | 218.1 x 70.4 x 79.5 mm (8.6 x 2.8 x 3.1 in) |
| Weight | 0.71 kg (1.57 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, LVD, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS V17.4.8 / V18.3.5 / V20.0.2 or later with patch files required, GV-Control Center V4.3.0 or later, GV-Edge Recording Manager V2.3.1 or later, GV-Recording Server V2.1.1 or later with patch files required, GV-IP Device Utility V9.0.5 or later |
| Smart Device Access | GV-Eye for iOS and Android V3.5.1 or later |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
