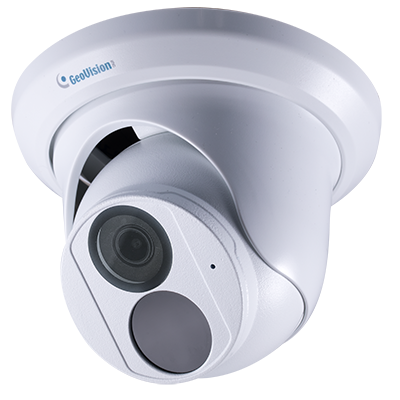

EBD2704 is an outdoor, network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.
Features:
- 1/2.7" progressive scan low lux CMOS sensor
- Min. illumination at 0.01 lux
- Dual streams from H.265, H.264 or MJPEG
- Up to 30 fps at 1920 × 1080
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- Wide Dynamic Range Pro (WDR Pro)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Note:
- It is required to apply patch files to all the supported software.
- Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
- Specifications are subject to change without notice.
| Camera | ||
| Image Sensor | 1/2.7" progressive scan low lux CMOS | |
| Picture Elements | 1920 (H) x 1080 (V) | |
| Minimum Illumination | Color | 0.01 Lux (F2.0, AGC ON) |
| IR ON | 0 Lux | |
| Shutter Speed | Auto / Manual (1 ~ 1/100,000 sec) | |
| White Balance | Auto / Manual | |
| Gain Control | Auto / Manual | |
| S/N Ratio | 52 dB | |
| WDR Pro | Yes | |
| Dynamic Range | Up to 120 dB | |
| Lens | ||
| Megapixel | Yes | |
| Day / Night | Yes (with removable IR-cut filter) | |
| Lens Type | Fixed | |
| Focal Length | 2.8 mm | |
| Maximum Aperture | F/2.0 | |
| Mount | M12 | |
| Horizontal FOV | 113° | |
| Operation | Focus | Fixed |
| Zoom | Fixed | |
| Iris | Fixed | |
| IR LED Quantity | 1 IR LED | |
| Max. IR Distance | 30 m (100 ft) | |
| Operation | ||
| Video Compression | H.265, H.264, MJPEG | |
| Video Streaming | Dual streams from H.265, H.264 or MJPEG | |
| Video Resolution | Main Stream | 1920 x 1080 (Default), 1280 x720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288 | |
| Frame Rate | 30 fps at 1920 x 1080 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection, Crossing line, Intrusion *Tampering Alarm, Audio Detection, Cross Line, and Intrusion are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP | |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) | |
| Audio Compression | G.711 | |
| Audio Support | One‐way Audio | |
