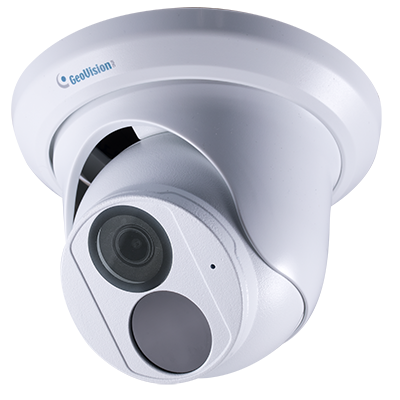

GeoVision - GV-EBD4704 - 4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera
Product Overview
The GV-EBD4704 is a 4MP outdoor eyeball dome featuring a super low lux sensor and a 2.8mm fixed lens (101° FOV). It delivers high-resolution video at 30 fps with H.265/H.264 compression and includes a built-in microphone. Equipped with WDR Pro (120dB) and 30m (100 ft) Intelligent IR, it ensures clear imaging in any lighting.
Key Configuration
- • Image sensor: 1/3" progressive scan super low lux CMOS; resolution: 2688×1520 (4MP) at 30 fps
- • Lens: fixed 2.8mm, F1.6, M12 mount; horizontal FOV: 101°
- • IR distance: 1 IR LED, Intelligent IR up to 30m (100 ft); minimum illumination: color 0.003 lux, 0 lux with IR
- • Video compression: H.265, H.264, MJPEG; dual streams
- • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 6W
Key Features
It features WDR Pro (120dB), 3D noise reduction, and Defog for superior image clarity. It includes a built-in microphone for one-way audio and a microSD slot (Class 10) for local edge storage. Advanced video analytics, including motion, intrusion, and cross-line detection, can trigger email or FTP alerts. The camera is ONVIF Profiles G, S, and T conformant and supports versatile image orientations, including 90°/270° corridor mode, privacy masking, and text overlays.
Technical Context
The camera provides a versatile shutter speed range of 1 to 1/100,000s and a high 56 dB S/N ratio for excellent signal clarity. It supports a comprehensive suite of networking protocols, including HTTPS, SNMP, and QoS, ensuring secure and optimized system integration. Fully compliant with global standards, the device features CE, FCC, and RoHS certifications for performance and environmental safety.
Installation Notes
With an IP67-rated weather-resistant housing, this camera operates reliably between -30°C and 60°C. It features a compact Ø126 × 92.7 mm design with a 3-axis mechanical adjustment for precise positioning and a built-in microphone for one-way audio. The unit supports flexible power options via DC12V or PoE and includes a microSD slot (Class 10) for local edge storage.
| Camera | |
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination - Color | 0.003 Lux (F1.6, AGC ON) |
| Minimum Illumination - IR ON | 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000s) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Optical Lens | |
| Megapixel | Yes |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Horizontal FOV | 101° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Dual streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion *Tampering Alarm, Audio Detection, Cross Line, Intrusion are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | One-way Audio |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment - Pan | 0°~ 360° |
| Camera Angle Adjustment - Tilt | 0°~ 90° |
| Camera Angle Adjustment - Rotate | 0°~ 360° |
| Connectors - Power | DC Jack (DC 12V, 1.25A), PoE |
| Connectors - Ethernet | RJ-45 |
| Connectors - Audio | 1 In (built-in microphone) |
| Local Storage | Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
| General | |
| Environment Temperature - Start-up | -30°C ~ 60°C (-22°F ~ 140°F) |
| Environment Temperature - Operation | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6 W |
| Dimensions | Ø 126 x 92.7 mm (Ø 5.0" x 3.6") |
| Weight | 0.45 kg (0.99 lb) |
| Ingress Protection | IP67 |
| Regulatory | CE, FCC, RoHS |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.4.1 / V18.2.1), GV-DVR / NVR (V8.9.1), GV-Control Center (V3.8.0), GV-Recording Server / Video Gateway (V2.0.0), GV-Edge Recording Manager Win version (V2.0.0), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.0.0) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
