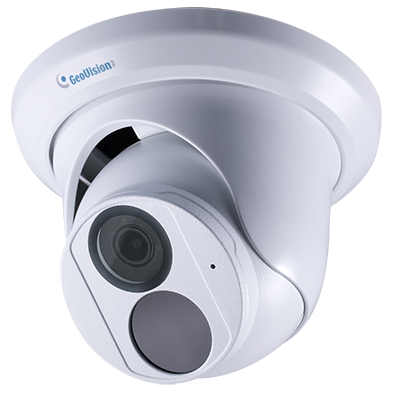

GeoVision - GV-EBD8800 - AI 8MP H.265 Super Low Lux WDR Pro IR Eyeball IP Dome
Part number:
GV-EBD8800
Price:

AI Deep-Learning IP Camera

The Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-EBD8800 adheres to IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.



Features:

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.7" progressive scan low lux CMOS sensor
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • ONVIF (Profile G, S, T) conformant



Camera
Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Minimum Illumination Color 0.01 Lux (F2.0, AGC ON)
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 56 dB
WDR WDR Pro
Dynamic Range Up to 120 dB
Optical Lens
Megapixel Yes
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 112°
Operation Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
