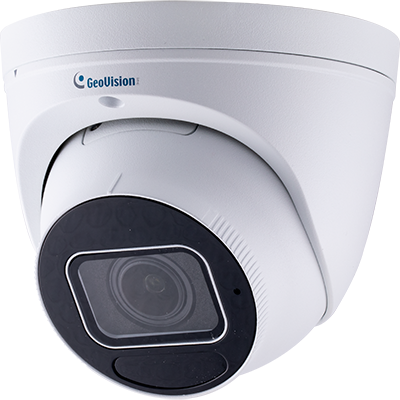

GeoVision - GV-EBD8813 - AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome Camera

Product Overview

The GeoVision GV-EBD8813 is a high-resolution 8MP eyeball dome camera delivering 3840×2160 video at 20 fps. It features a 2.8–12mm motorized varifocal lens with 4.3x optical zoom, providing a versatile horizontal field of view from 107° to 29°. Equipped with a super low-lux CMOS sensor and AI deep-learning capabilities, it ensures superior image quality in challenging lighting. Supports H.265, H.264, and MJPEG compression to maximize storage efficiency and bandwidth.

Key Configuration

• • Image sensor: 1/2.8" progressive scan super low lux CMOS; resolution: 3840×2160 (8MP) at 20 fps; 3072×1728 at 25 fps; 2560×1440 at 25 fps; 1920×1080 at 30 fps
• • Lens: 2.8–12mm motorized varifocal, F1.6, 4.3x optical zoom; horizontal FOV: 107° (wide) to 29° (tele)
• • IR distance: 2 IR LEDs, Smart IR up to 40m (130 ft); minimum illumination: color 0.003 lux, 0 lux with IR
• • Video compression: H.265, H.264, MJPEG; triple streams
• • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 8.16W

Key Features

This camera uses deep learning AI to classify humans and vehicles, providing perimeter protection through intrusion, line crossing, and area monitoring. It supports face detection, people counting, and crowd density analysis. Featuring 120dB WDR Pro and a built-in microphone, it delivers clear audio-visual data in high-contrast settings. The unit is ONVIF conformant (Profiles G, S, T), supports microSD edge storage, and includes corridor format for narrow-view optimization.

Technical Context

Provides a 56 dB S/N ratio and an adjustable shutter speed from 1 to 1/100,000 sec. It supports a wide range of protocols, including IPv4, SNMP, HTTPS, and 802.1x, for secure and flexible networking. Fully CE, FCC, and RoHS compliant, the unit ensures seamless integration via RTSP, FTP, and DDNS for professional surveillance applications.

Installation Notes

Dimensions Ø129 × 110 mm (Ø5.1" × 4.3") and weighs 0.67 kg (1.48 lb). It is built with a rugged IK10 vandal-resistant metal casing and an IP67 weather-resistant rating, operating from -30°C to 60°C (-22°F to 140°F). For versatile installation, it offers 3-axis adjustment and supports power via 12V DC or PoE. The unit includes a built-in microphone for one-way audio and a microSD slot for local edge storage.
