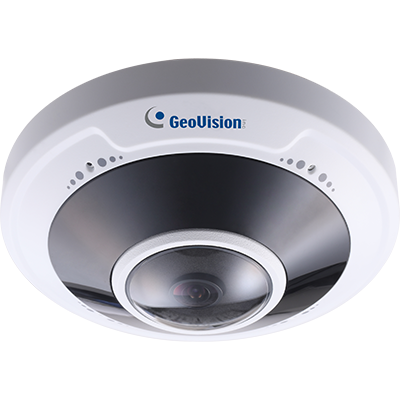

GeoVision - GV-FER5702 - 5 MP Outdoor Fisheye Camera
Product Overview
GeoVision GV-ERM (Edge Recording Manager) is a Windows-based software for centralized live monitoring and remote control of GeoVision IP devices. It supports 32 free channels, expandable to 64 via a GV-USB dongle. Key features include fisheye dewarping, remote playback, and two-way audio. It simplifies administration with batch IP assignment, PTZ control, and direct NAS recording management.
Key Configuration
- • Image sensor: 1/2.8" progressive scan CMOS; resolution: 2592×1944 (5MP) at 30 fps
- • Lens: fixed 1.4mm, F2.0, M12 mount; horizontal FOV: 180°
- • IR distance: 3 IR LEDs, up to 20m (65 ft); minimum illumination: color 0.01 lux, 0 lux with IR
- • Video compression: H.265, H.264, MJPEG; triple streams
- • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 8.5W
Key Features
The GV-FER5702 features WDR Pro (120dB) for high-contrast lighting and 2D/3D noise reduction for clear images. It includes a built-in microphone for two-way audio and a microSD slot (Class 10) for edge storage. The camera supports ONVIF Profiles S, G, and T and offers Virtual PTZ and auto-pan functions. Advanced features include smart streaming, tampering alarms, privacy masks, and multiple image orientation options (flip/mirror). For integration, it provides one sensor input and one relay output.
Technical Context
The camera offers a broad shutter speed range (1 to 1/100,000s) and adjustable white balance (2800K to 8500K) with a 55 dB S/N ratio. It supports a comprehensive suite of networking protocols, including HTTPS, SNMP, and IPv4, ensuring secure and flexible system integration.
Installation Notes
Built for durability, the camera features IP66 weather resistance and IK10 vandal resistance, operating between -30°C and 60°C. Its low-profile design (Ø125 × 44 mm) contains no mechanical moving parts, significantly increasing long-term reliability. The unit supports Ceiling or Wall mounting and can be powered via DC12V or PoE. For optimal IR performance and to prevent glare, a 1m (3.28 ft) clearance from walls is required. It includes a built-in microphone for audio recording and an external output for speakers.
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Picture Elements | 2592 (H) x 1944 (V) |
| Minimum Illumination - Color | 0.01 Lux (F2.0, AGC ON) |
| Minimum Illumination - IR On | 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000s) |
| White Balance | Auto / Manual (2800K ~ 8500K) |
| S/N Ratio | 55 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Optics Lens | |
| Megapixel | Yes |
| Day/Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.4 mm |
| Maximum Aperture | F/2 |
| Mount | M12 |
| Image Format | 1/2.8" |
| Horizontal FOV | 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 3 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2592 x 1944 (50/60 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 180°) |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | Two-way Audio (external speaker required) |
| I/O | |
| Sensor Input | 1 Input, dry contact, NO / NC |
| Alarm Output | 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Video Resolution | |
| Main Stream | 2592 x 1944 (Default) |
| Sub Stream | 640 x 480 (Default) |
| Third Stream | (Closed by Default) 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile S, G, T) |
| Mechanical | |
| Connectors - Power | DC Jack |
| Connectors - Ethernet | RJ-45 |
| Connectors - Audio | 1 In (built-in or external microphone with power supply) 1 Out (Audio Out Wire) |
| Connectors - Digital I/O | I/O wires |
| Local Storage | Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
| General | |
| Operating Temperature - Start-up | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Temperature - Operation | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 8.5W |
| Dimension | Ø 125 x 44 mm (Ø 4.9" x 1.7") |
| Weight | 360 g (0.79 lb) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Regulatory | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Simplified Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.4.3 / V18.2.1 or later), GV-Recording Server (V2.1.0 or later) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
