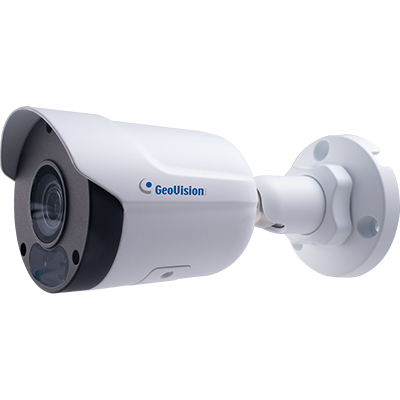

GeoVision - GV-TBL2705 - 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera
Part number:
GV-TBL2705
Price:
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 standards and can be powered through PoE.
Features:
- 1/2.7" progressive scan low lux CMOS sensor
- Min. illumination at 0.01 lux
- Dual streams from H.265, H.264 or MJPEG
- Wide Dynamic Range Pro (WDR Pro)
- Up to 30 fps at 1920 × 1080
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Day and Night function (with removable IR-cut filter)
- Ingress protection (IP67)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Note:
- Power adapters can be purchased upon request.
- Specifications are subject to change without notice.
| Camera | ||
| Image Sensor | 1/2.7" progressive scan low lux CMOS | |
| Picture Elements | 1920 (H) x 1080 (V) | |
| Minimum Illumination | Color | 0.01 Lux (F2.0, AGC ON) |
| IR ON | 0 Lux | |
| Shutter Speed | Auto / Manual (1 ~ 1/100,000 sec) | |
| White Balance | Auto / Manual | |
| Gain Control | Auto / Manual | |
| S/N Ratio | 52 dB | |
| WDR Pro | Yes | |
| Dynamic Range | Up to 120 dB | |
| Lens | ||
| Megapixel | 2 MP | |
| Day / Night | Yes (with removable IR‐cut filter) | |
| Lens Type | Fixed | |
| Focal Length | 4 mm | |
| Maximum Aperture | F/2.0 | |
| Mount | M12 | |
| Horizontal FOV | 83° | |
| Operation | Focus | Fixed |
| Zoom | Fixed | |
| Iris | Fixed | |
| IR LED Quantity | 1 IR LED | |
| Max. IR Distance | 30 m (100 ft) | |
| Operation | ||
| Video Compression | H.265, H.264, MJPEG | |
| Video Streaming | Dual streams from H.265, H.264 or MJPEG | |
| Video Resolution | Main Stream | 1920 x 1080 (Default), 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288 | |
| Frame Rate | 30 fps at 1920 x 1080 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion *Tampering Alarm, Audio Detection, Cross Line, Intrusion, are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP | |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) | |
| Audio Compression | G.711 | |
| Audio Support | One‐way Audio | |
