GeoVision - GV-TBL4700 - 4MP Outdoor Bullet IP Camera
Product Overview

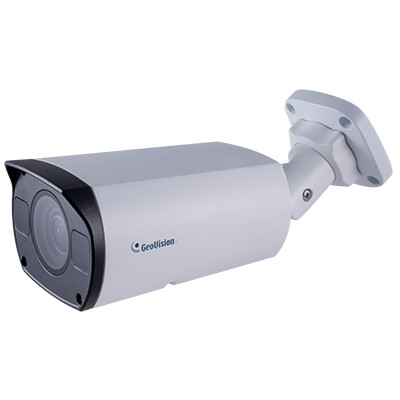

The GeoVision GV-TBL4700 is a 4MP outdoor bullet camera featuring a super low lux CMOS sensor and a 2.8–12mm manual varifocal lens. It captures high-resolution video (2592×1520) at 20 fps using efficient H.265, H.264, or MJPEG compression. Designed for harsh environments, the camera is protected by a metal casing with IP67 weather and IK10 vandal resistance. It includes Intelligent IR with a 30m (100 ft) range, WDR, and 3D noise reduction to ensure clear imaging in diverse lighting conditions.
Key Configuration
- • Image sensor: 1/3" progressive scan super low lux CMOS; resolution: 2592×1520 (4MP) at 20 fps
- • Lens: 2.8–12mm manual varifocal (w/ lock), F1.6; horizontal FOV: 96° (wide) to 32° (tele)
- • IR distance: 2 IR LEDs, Intelligent IR up to 30m (100 ft); minimum illumination: color 0.01 lux, 0 lux with IR
- • Video compression: H.265, H.264, MJPEG; triple streams
- • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 7W
Key Features
The GV-TBL4700 features WDR (72dB), 3D noise reduction, and Defog for clear imaging in high-contrast or extreme weather conditions. Built-in video analytics include motion detection, tampering alarms, and human body detection. The camera offers extensive image customization, including BLC, smart illumination, and various orientation modes (flip/mirror). It supports edge storage via microSD (Class 10), is ONVIF Profiles G, S, and T conformant, and includes privacy masking and text overlay.
Technical Context
It features a shutter speed range of 1/25 to 1/100,000 sec and a 52 dB S/N ratio for clear signal quality. It supports a wide array of network protocols, including HTTPS, QoS, and IPv4, ensuring secure and optimized data transmission. Fully compliant with industry standards, the device carries FCC, CE, and RoHS certifications for safety and environmental reliability.
Installation Notes
Operates from -35°C to 60°C with IP67 weather and IK10 vandal resistance. The metal housing features a 3-axis mechanical adjustment (pan/tilt/rotate) and measures 244 × 96 × 74 mm. It supports PoE or DC12V power and includes a microSD slot (Class 10) for edge storage. The 2.8–12mm lens allows for manual zoom and focus, secured by a dedicated locking mechanism for long-term stability.
| Camera | |
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2592 (H) x 1520 (V) |
| Minimum Illumination - Color | 0.01 Lux (F1.6, AGC ON) |
| Minimum Illumination - IR On | 0 Lux |
| Shutter Speed | Auto / Manual (1/25 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR | Yes |
| Dynamic Range | Up to 72 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Varifocal lens |
| Focal Length | 2.8 ~ 12 mm |
| Maximum Aperture | F/1.6 |
| Mount | Ø 14 mm |
| Horizontal FOV | 96°~ 32° |
| Operation | |
| Focus | Manual (w/ lock) |
| Zoom | Manual (w/ lock) |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate | 20 fps at 2592 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Intrusion, Human Body Detection |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°), Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog |
| Video Resolution | |
| Main Stream | 2592 x 1520 (Default), 2048 x 1520, 1920 x 1080 |
| Sub Stream | 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment - Pan | 0 ~ 360° |
| Camera Angle Adjustment - Tilt | 0 ~ 120° |
| Camera Angle Adjustment - Rotate | 0 ~ 360° |
| Connectors - Power | DC Jack (DC 12V, 1A), PoE (IEEE802.3af) |
| Connectors - Ethernet | RJ-45 |
| Local Storage | Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -35 ~ 60°C (-31 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | 244 × 96 × 74 mm (9.6" × 3.8" × 2.9") |
| Weight | 1 kg (2.2 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | FCC, CE, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Italian, Russian, Traditional Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0), GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software. |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Safari, Firefox), Mobile App |
