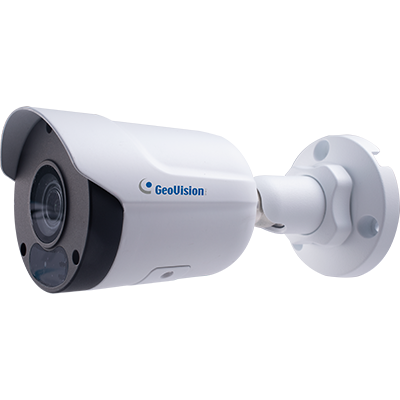

GeoVision - GV-TBL4705 - 4mm, 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera
Part number:
GV-TBL4705
Price:

The Bullet IP Camera is an outdoor network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 standards and can be powered through PoE.



Features:

  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.003 lux
  • Dual streams from H.265, H.264 or MJPEG
  • Wide Dynamic Range Pro (WDR Pro)
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 50 m (165 ft)
  • Built-in microphone
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant



Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.
Camera
Image Sensor1/3" progressive scan super low lux CMOS
Picture Elements2688 (H) x 1520 (V)
Minimum IlluminationColor0.003 Lux (F1.6, AGC ON)
IR ON0 Lux
Shutter SpeedAuto / Manual (1 ~ 1/100000s )
White BalanceAuto / Manual
Gain ControlAuto / Manual
S/N Ratio56 dB
WDR ProYes
Dynamic Range120 dB
Lens
Megapixel4 MP
Day / NightYes (with removable IR‐cut filter)
Lens TypeFixed
Focal Length4 mm
Maximum ApertureF/1.6
MountM12
Horizontal FOV 83.7°
OperationFocusFixed
ZoomFixed
IrisFixed
IR LED QuantityIR LED
Max. IR Distance50 m (165 ft)
